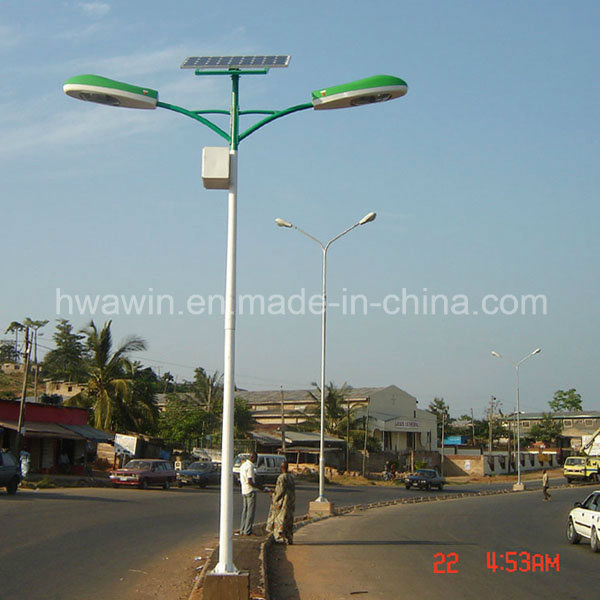

Configuration of Double Arm 30W*2 LED Light Source Solar Street Light:
The configuration of Double Arm 30W*2 LED Light Source Solar Street Light is designed on averaged insolation 5.5 kWh/m2/day, and the energy saving method is adopted in the configuration of this Solar Street Light.
| LED lamp | 30W*2pcs |
| Solar panel | 2PCS*90Wp |
| Storage battery | 2PCS*12V/100AH gel battery |
| Solar controller | 12V/24V auto with LED driver |
| Battery box | 24V/120AH |
| Applicable light pole | 8-10 meters |
| Lighting time | 10-12 hours |
| Backup days | 3-4 backup overcast or rainy days |
| System voltage | DC24V |
| Design Mode | Energy saving method |
| Warranty | 2-3 years |
Technical description of Double Arm 30W*2 LED Light Source Solar Street Light:1. Super bright LED, 5500-6500K for choice, 120LM/W, IP65 cast aluminum lamp housing.
2. High efficiency polycrystalline solar pane, with aluminum frame, tempered glass and junction box.
3. Maintenance free gelled valve regulated sealed battery, deep cycle.
4. Intelligent solar controller, IP68 waterproof, with protection functions and energy saving modes etc.
5. IP 68 waterproof battery underground box (battery box on pole top is optional)
6. Cable to meet relevant solar lighting purpose
7. Optional light pole made of Q235 quality steel, hot dipped galvanized & plastic powder coated,
rust proof. With light arm, flange base & anchor bolts, solar panel bracket and screws.

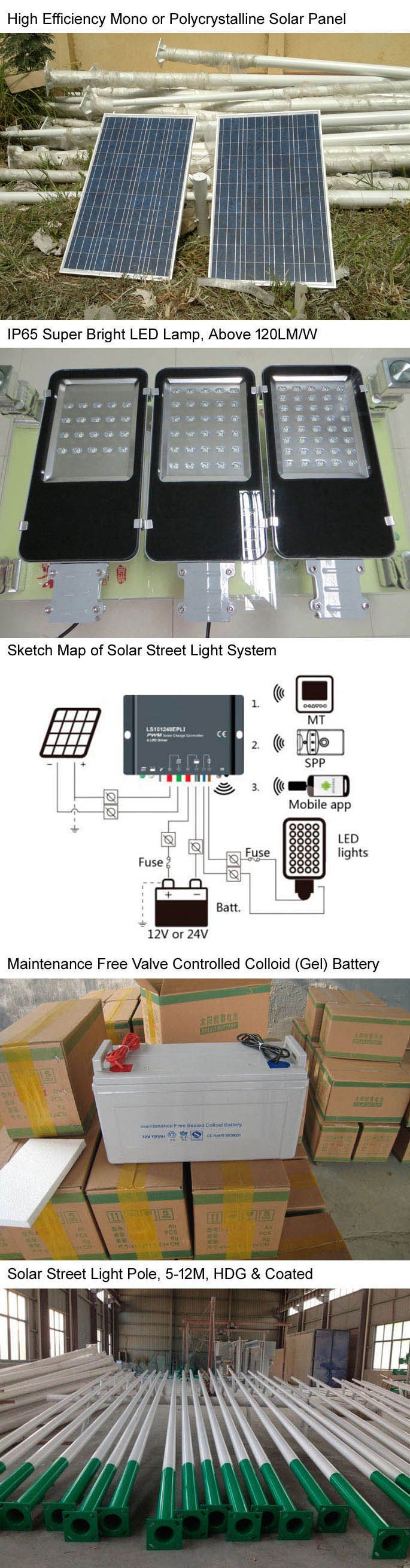

The main parts of Double Arm 30W*2 LED Light Source Solar Street Light:

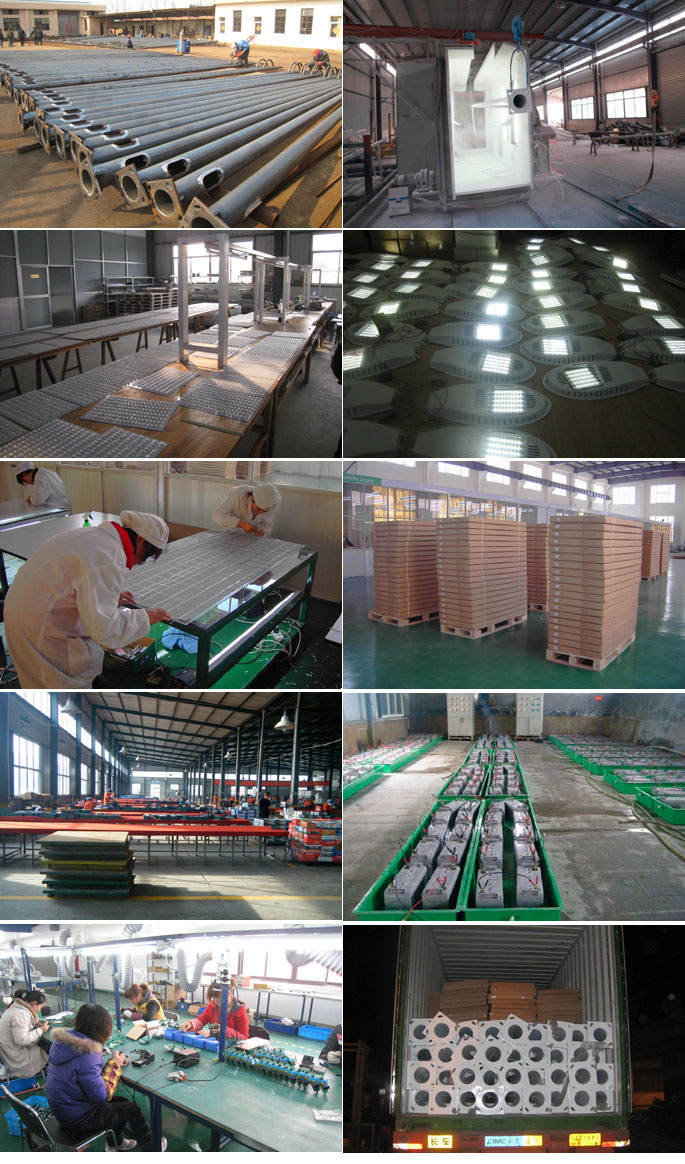

Production and Shipment of Double Arm 30W*2 LED Light Source Solar Street Light:

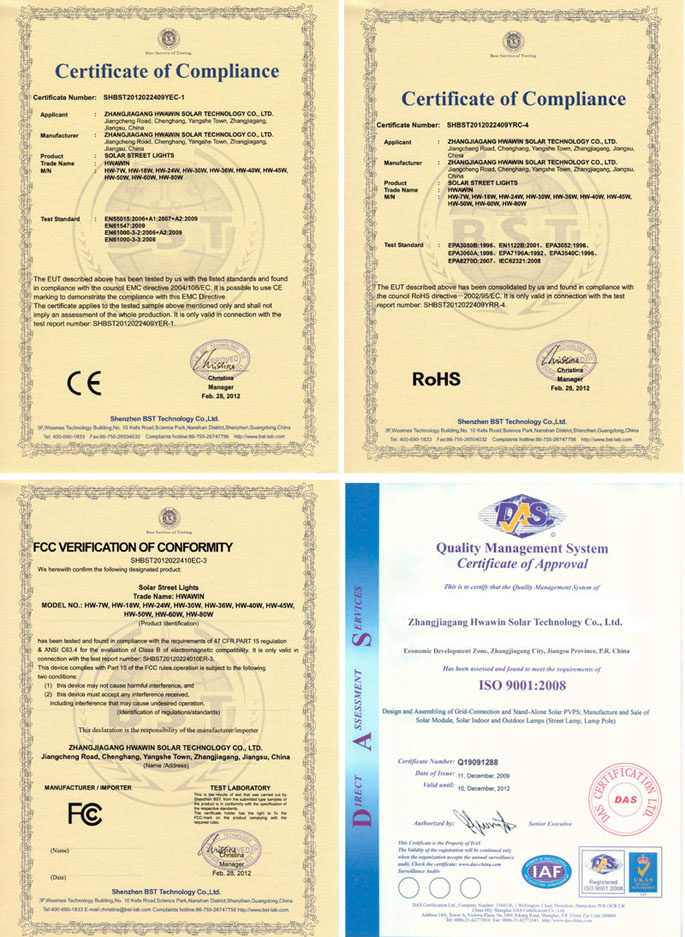

Certificates of Double Arm 30W*2 LED Light Source Solar Street Light:
In order to design and quote the
Solar Street Light exactly, please inform us below information:
1. The installation city
2. LED lamp power
3. Light pole height
4. Lighting hours per nigh
5. Backup rainy days
6. Quantity you need
Look forward to hearing from you to offer you the professional design and best price!
Hwawin Solar Technology Co., Ltd. is the key member of Hwawin Group, dedicated to the R&D, manufacture and international trade of solar modules, solar street lights, solar garden lights and other solar products since 2002. At present, we have our own plants in Zhangjiagang and Yangzhou City.
Our best competitive products:
Solar Street Lights with 5M-12M street light pole and 15W-100W super bright LED street lamps; Solar Garden Lights with 2.5M-4M light pole and 5W-15W solar garden lamps; Polycrystalline and monocrystalline solar panel 10-300Wp; 10W-120W LED Lamp, Solar Battery Buried Box,
MPPT Solar Charge Controllers, PMW Intelligent Solar Controllers with LED Drivers; Solar Road Studs, Solar Brick Lights.
The Environment Protection Equipments from Hwawin Industrial Group mainly include Road Sweeper and Floor Scrubbers:
Our Road Sweepers are powered by electricity from batteries, with Walk Behind type and Ride on Type. The Electric Road Sweeper, Electric Street Sweeper adopts automatically cleaning system for the suction and sweeping. The electric road sweepers are mainly used for university, residential property, factory, workshop and square. Both indoor and outdoor cleaning.
Our Electric Walk behind Floor Scrubber and Electric Ride on Floor Scrubbers can fit all ground of the business environment, paint ground, concrete and ceramic tile ground. Besides, it can provide excellent cleaning performance for workshop, storage, logistics center, supermarket, hospital and so on.
Overseas Exploration and Popularity:
We successfully sell our solar lighting products and environment protection equipments to overseas markets such as the USA, UK, Spain, Greece, Norway, Belgium, France, Portugal, Australia, Turkey, Jordan, Iraq, UAE, India, Pakistan, Singapore, Philippines, Nigeria, Congo, Tunisia etc.
For the Future:
With advanced manufacturing & testing equipments, our company is growing better and better. We hope to cooperate with more partners, distributors, agents, road builders, contractors, project business men to develop more business to create prosperous win-win partnerships. OEM is available.
