TECHNICAL REFERENCE

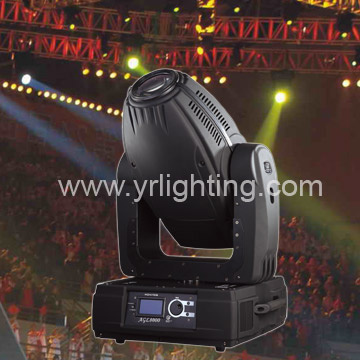

Model No.: AGL8000 Moving head spot light
Voltage: AC110V-130V, 220V-240V(optional)50Hz/ 60Hz
Power: 1650w
Lamp: MSR1200W/SA short arc discharge
Base: GY-22
Ballast: Electronic/ Magnetic
Electrical Technical
Gobos:
Outside diameter: 37, 5 +0/-0, 25mm, Image diameter: 31, 5mm
Thickness: 1, 1mm up to 6mm in rotating slots
Material: High-temperature Borofloat glass
Prisms and Effects
Outside diameter: 47 +0/-0, 3 mm
Thickness: Up to 5mm in rotating slots (up to 8mm in the center)
Control and Programming
Protocol: USITT DMX-512
Control channels: 24 or 32
Pan/Tilt orientation: 8- or 16-bit
Gobo indexing: 8- or 16-bit
Prism indexing: 8- or 16-bit
Data in/out: Locking 3-pin & 5-pin XLR
Effects OF Machine: Cyan: 0 - 100% Magenta: 0 - 100%
Yellow: 0 - 100% CTO: 0 - 100%
Color wheel: 6 replaceable 'SLOT&LOCK' colors + open
Gobo wheel 1: 6 rotating, index able, replaceable 'SLOT&LOCK' dichroic glass gobos + open
Gobo wheel 2: 6 rotating, index able, replaceable 'SLOT&LOCK' dichroic glass gobos + open
Gobo dimension: 37mm
Iris: Motorized, stepless
Effect wheel: 4 rotating, index able, replaceable 'SLOT&LOCK' prisms and effects + open
Atomization effect: Separate, variable
Dimmer/Shutter: Full range dimming and variable strobe effect
Focus: 2m - infinity Zoom: 13° - 42° Pan: 530° Tilt: 280°
Dimension (cm):
Height: 64cm (head in horizontal position)
Width: 55cm
Depth: 64cm
Net weight: 38.5kg (Electronic) 49kg(Magnetic)
