TECHNICAL REFERENCE

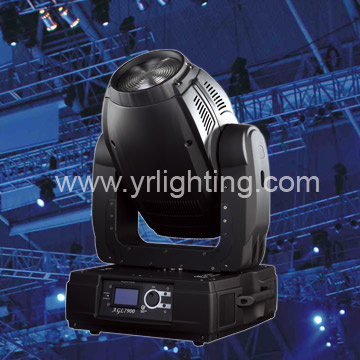

Model No.: AGL7900 Moving head wash light
Voltage: AC110V-130V, 220V-240V(optional) 50Hz/ 60Hz
Power: 1650W
Lamp: MSR1200w /SA short arc discharge
Base: GY-22
Ballast: Magnetic/ Electronic
Control and Programming
Protocol: USITT DMX-512
Control channels: 17/21/23/30
DMX channels: 4 protocol modes built-in demo sequences
Pan/Tilt resolution: 16-bit
Color wheel 1 positioning: 8-bit or 16-bit
Color wheel 2 positioning: 8-bit or 16-bit
Zoom: 8-bit or 16-bit
Dimmer: 8-bit or 16-bit
Controllable speed of fans
Movement control: Tracking or vector
Built-in analyzer for easy fault finding
Data in/out: Locking 3-pin XLR &5-pin XLR
Effects OF Machine: Cyan: 0 - 100% Magenta: 0 - 100%
Yellow: 0 - 100% CTO: 0 - 100%
Color wheel 1: 6 replaceable 'SLOT&LOCK' colors + open
Color wheel 2: 6 replaceable 'SLOT&LOCK' colors + open
Dimmer/shutter: Full range dimming and variable strobe effect
Zoom: 10° - 87° Depending on the lens type used
Pan: Pan: 530°
Tilt: 280°
Channels parameter: 17/21/23/24/30channels
Dimension (cm): 64*55*64
Net weight: 36.5kg(Electronic) 46kg(Magnetic)
Guangzhou City Ya Ge Lai Lighting & Audio Equipment Co., Limited Located in the state-level high-tech Science and Technology Parks - Private Science and Technology Park in Guangzhou and near the booming Baiyun international airport, is a stage lighting enterprise which gathers research, production, marketing and after-sales as intergral whole. The company's factory Guang zhou Yellow River stage lighting equipment factory established in 1999, the staff in Yellow River always take the responsibility "Let the world dance" upon ourself. Under the target "Creat the international well-known brand", "built up respected enterprise", we highly raise quality and service flag, expand innovation, make "Huang He" brand image promote quickly. The enterprise is developing continuously & steadily.
