Home LED Light Products Mobile Indoor/Outdoor Full-Color High Definition 85 Inch P3.33 LED TV Display

Mobile Indoor/Outdoor Full-Color High Definition 85 Inch P3.33 LED TV Display

Mobile Indoor/Outdoor Full-Color High Definition 85 Inch P3.33 LED TV Display
Price: US $ 8/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T,D/P

Mobile led display, fashion Phone shape
Applications:

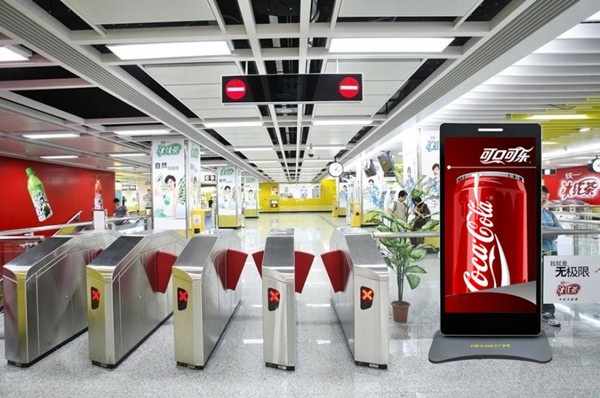

It can be widely used in Airport, subway station, high speed railway station, large shopping mall, star hotel, cinema, golf course, bank, conferance center, bookstore,office,ect.



Part Number

HERO-IDS5F-16S

Resolution

48(H)×48(w)

Pixel Pitch

3.33mm

LED Configuration

SMD 2121

Pixel Density

90,000  pixels/ m2

Module Size

160*160mm

Driving IC

MBI5024

Driving Method

1/16 Scan, Constant Current

Cabinet Weight

210kg/sq.m.

Optical Ratings

Brightness

>1200cd/m2

View Angle

level150°/vertical150°

Gray Scale

16bits input, correction with 14bits

Display COLOR

Full color

Brightness Adjustment

0~100%

Power Supply

Operation Power

110~240V 50~60Hz

Max. Power Consumption

2330W/m2

Average Power Consumption

933W/m2

Control System

Control Mode

Asynchronous display

Frame Update Frequency

60~85Hz

Screen Refresh Frequency

300~1000Hz

Gamma Correction

-5.0~+5.0

Support Input

Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

Control Distance

Ethernet cable<120m or Fiber Optic<10Km

Support VGA Mode

1024×768, 1280×1024, 1600×1200, 1920×1280

Brightness Correction

Pixel, Module, Cabinet

Environmental

Operating Temperature

-20°~+60°

Operating Humidity

10~95% RH

Operating Life

100,000hours

MTBF

10000hours

Protection Level

IP65

Out of Control Rate

<0.02%

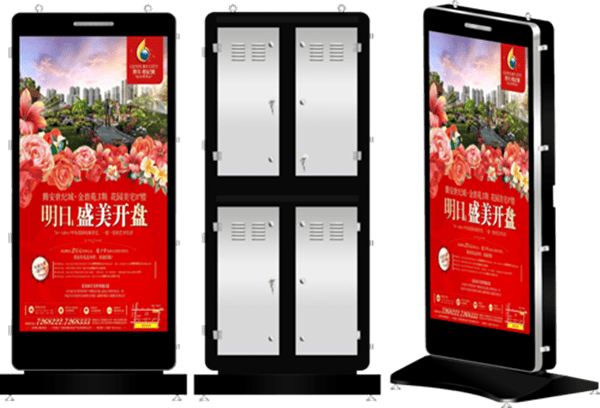

 1) 1:2 display ratio with Fashionable appearance like Iphone mobile.Creating new visual impact attractive enough to bring fantastic advertising benefit.    2) Covered by tempered glass, make the display screen stable, safe and good viewing effect.     3) With wheels under the Bottom base design, you can move the led screen easily.   4) Easy for operation, "One Press Start ", playing automatic.    5) Control system can be Asynchronous and synchronous.Support USB memories , 3G and WIFI control method , Clustered-Control
Prod Model: p3.33
Markets: North America,South America,Eastern Europe,Oceania,Mid East,Eastern Asia,Western Europe
Screen Dimension: 960mm(W)*1920mm(H)
LED Type: SMD 2121
Scan Mode: 1/16
Brightness: 1000~1200CD/Sqm
Viewing Angle: H140° V140°
Viewing Distance: 5-100 Meters
Refresh Rate: More Than 500Hz
Lifespan: More Than 100, 000 Hours
Power Supply: AC220V±15% 47~64Hz
Max. Power Comsumption: 720W/Sqm
Tube Chip Color: Full Color
Display Function: Video Display
Pixel Configuration: 1R,1G,1B
Scanning Mode: 1/16 Scan
Display Type: LED Video Display
Application: Shopping Guide
IP Rating: IP43
Certification: ETL
Pixel Pitch: 3.33mm
Pixel Density: 62500dots
System Operating Platform: General
Shenzhen LED-HERO Electronic Telechnology Co., Ltd was found in early 2007. Hero committed to the next generation of LED optoelectronic products development, production, sales and service. It is leading the trend of LED industry and providing a full range of solutions to its customers. It has become a modern, large scale, professional LED Photoelectric comprehensive product integration supplier. The products sell well in over 50 countries and regions in Europe, America and Middle East, besides more than 20 provinces across China.

"Hero' S products and solutions include various of indoor and outdoor LED display screen and lighting products with its advanced technology, superior technology design, personalized design elements, large-scale production capacity and diversified cooperation strategy to provide full LED integrated solutions.

"Beat by wisdom, win in morals"is still our insistent faith, Quality is the life of a company. From material purchasing to product researching, development, production, testing, packaging and shipment, Hero abides ISO9001: 2000 international quality control process to make strict control and scientific management, and to achieve perfection. The products have passed the RoHS, CCC, CE and other international quality certification which ensure that each product are stable, reliable, environmental protective.

Excellent talent is the soul. Hero relies on the humanized management, promoting hero culture, exerting employees to have masters spirit. It has established a systematized, specialized production procedure. And it has built a strategic alliance with LED raw materials suppliers and vendors which has realized the resource sharing, division, cooperation, mutual complementarities and high-efficient operation for providing an effective guarantee to Hero' S scale production and diamond quality.

To select Hero, you will win the promise of a hero!
