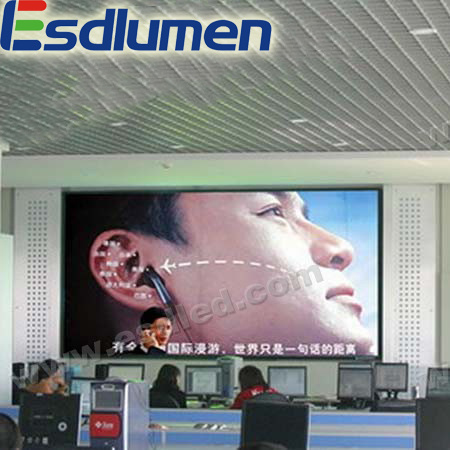

Mini series P4.8 indoor fullcolor LED display features,
Cabinet weight is only 7.5 kg, depth 73 mm, decreasing the transportation cost and the intensity of labor.
Super thin power supply inside; Quiet fan design, excellent heat dissipation, noiseless.
Refresh rate>800Hz, 2 times higher than the regular screen, suitable for the rental occasion which requires much more higher display capability.
The high polymer flexible mask can be pulled off directly from the cabinet, which makes the maintenance much more convenient.
Signal & power aviation connectors are water & dust proof, stable and reliable.
Cushion under the cabinet can protect the modules from being damaged.
Super-light aluminium alloy connectors are durable and artistic.
|
P4.8 Item |
Parameters |
|
MODULES |
model |
ESD-MI4.8S |
|
Pixel Pitch(MM) |
4.8 |
|
Physical Density(dot/M2) |
43, 402 |
|
LED Arrangment |
1R1G1B |
|
LED Type |
SMD3528 |
|
Module Size(MM*MM) |
240*240 |
|
Module Resolution(PX*PX) |
50*50 |
|
Module Power Comsumption(W) |
60 |
|
main technical parameters |
Drive Mode |
Constant Current Drive |
|
Scan Mode |
1/10 |
|
Horizontal Viewing Angle(Deg) |
140 |
|
Vertical Viewing Angle(Deg) |
140 |
|
Brightness(CD/M2) |
2000 |
|
Grey Scale |
> 4096 |
|
Refresh Rate(HZ) |
> 4800 |
|
Cabinet Resolution |
100*100 |
|
Cabinet Max Power Consumption(W) |
300 |
|
Cabinet Average Power Consumption(W) |
120 |
|
Cabinet Size(MM*MM) |
480*480 |
|
Cabinet Weight(KG) |
7.5 |
|
Cabinet Thickness(MM) |
73 |
|
Cabinet Material |
ALU |
|
Color(M) |
> 16.7 |
|
Input Voltage |
AC 110V~220V+/-10% |
|
Refresh Frame Frequency(Hz) |
60 |
|
Protection Level |
IP43 |
|
Working Environment |
Indoor |
|
Working Temperature(Celsius degree) |
-20~+40 |
|
Storage Temperature(RH) |
10%-90% |
|
Life Span(H) |
100000 |
|
Vertical Hanging Quantity |
MAX20 |
