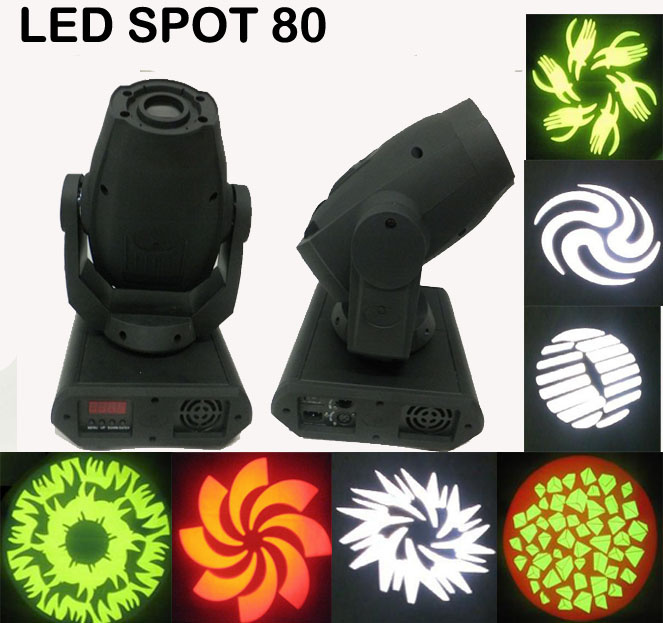

Mini 80W LED Moving Head spot Light led stage light
Advantage:
1)80W long life white LED source
2)7 Rotating Gobos plus spot
3) Motorized focus controllable via DMX
4) 3-facet
DMX FUNCTIONS: 16-CHANNEL MODE
Channel 1 dimmer from 0-100%
Channel 2 strobe from slow to fast
Channel 3 - Color-wheel
Channel 4 - semi colors
Channel 5 - Horizontal movement (Pan)
Channel 6 - Vertical movement (Tilt)
Channel 7 3-facet prism
Channel 8 prism rotating
Channel 9 - rotating gobo-wheel
Channel 10- gobo rotating
Channel 11- gobo moving backword and forward
Channel 12- focus
Channel 13 pan fine 16 bit
Channel 14 tilt fine 16 bit
Channel 15 pan/tilt movement speed adjustments
Channel 16 reset
light source |
80W long life white LED source |
4 operational modes: |
DMX, Master/Slave, Stand Alone & Sound Active
|
feature |
1) Motorized focus controllable via DMX
2) compact & light weight and offers plenty of pro features
3) Special designed IC making cool and running long time
4) Remote reset function,Silent fans cooling
5) double condenser system
|
fixture |
1) Gobo-wheel with 7 rotating gobos plus spot(2 glass gobos)
2) Colour-wheel with 7 different, dichroic colour-filtres and white
3) a Prism Wheel with 3-facet
4) LED display
|
DMX channels |
16 DMX channel modes
|
remarks |
1) The rotating gobos can be turned by 360°,High-speed rotating 3-facet prism
2)shutter/dimmer unit allowing very smooth dimming and strobe effect 1-30 flash per sec.
|
Power Consumption: |
100W max |
Dimensions (LxWxH): |
400*270*280mm |
Weight: |
8.85kgs |
