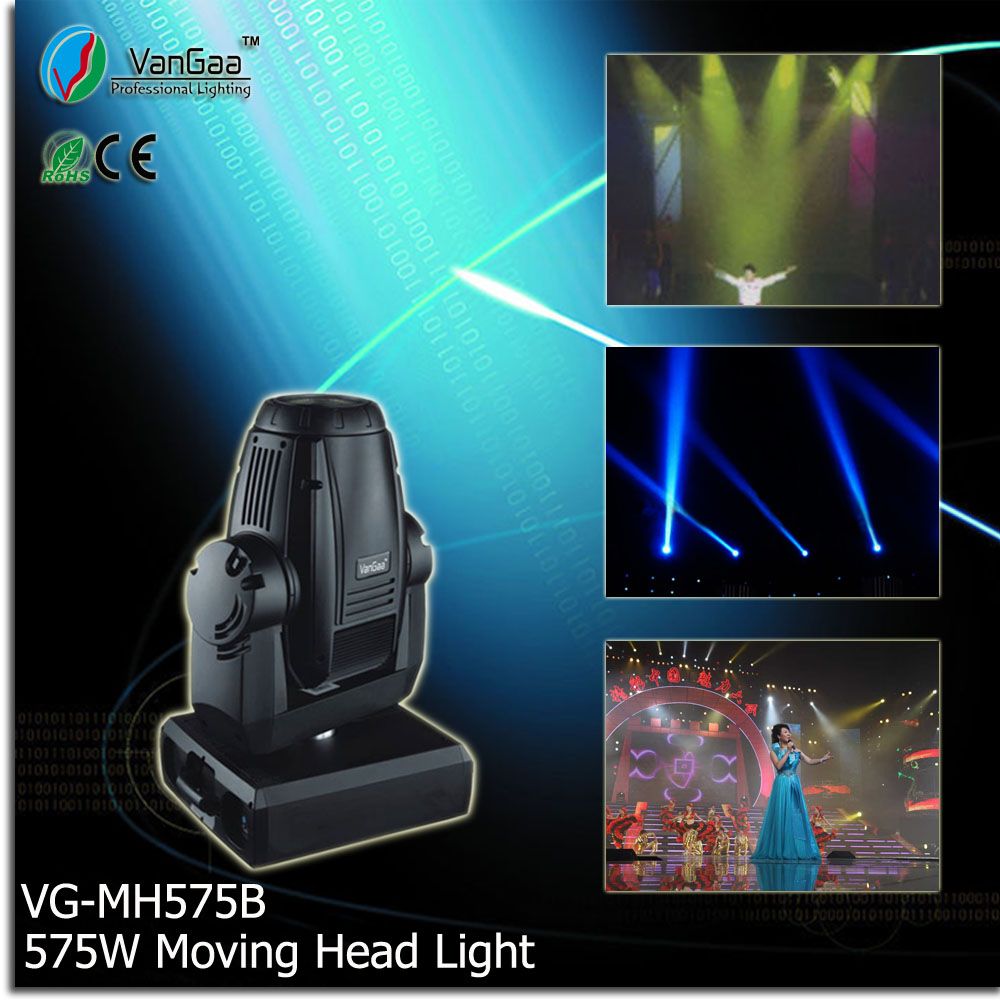

This 575W Moving Head Wash Light/Mobile Head Wash Light is a Martin Mac Wash Light copy one. It has 16 DMX channels for wash, color change and CMY effect. It's widely used for the stage performance, TV station, KTV, theatre, concert, outdoor moving performance and other entertainment areas.
Features
8 main colors adding 8 mixed colors, achieving high speed single way rainbow and scrolling effect;
Mechanical linear dimmer and 1~10 times/s high speed strobe effect;
Horizontal 540degree and vertical 270degree scanning range, smooth scanning action and accurate orientation;
Precise adjustment on horizontal and vertical position stopper function on the effect wheel rotating and position moving;
Electronic linear infinite adjustment;
Up, down color temperature, orange, atomizing effect;
3 primary color effect(C. M. Y. K);
3 primary speed adjustment;
4convection cooling-fan, optimize internal air duct way, heat elimination rapidly;
Built-in over heat protection and high voltage protection;
Compatible with DMX 512 international digital signal;
According to various kinds of safety standards, IP20 protect grades, The cable accords to the CE20/22 standard.
Specifications
Input power: AC110~249V, 50/60Hz
Power consumption: 680W
Light sources: HMI575W
Control signal: DMX-512
Channels: 16CH
Pan: 540degree, tilt: 270degree
Carton box package size: 520*440*780mm(1PC/carton)
N. W/G. W: 40kg/44kg
|
DMX Channel Functions of VG-MH575B |
|
DMX CHANNEL |
CHANNEL FUNCTION |
|
CH1 |
Lamp on/off |
|
CH2 |
Strobe |
|
CH3 |
Color wheel |
|
CH4 |
Color filter |
|
CH5 |
Pan |
|
CH6 |
Tilt |
|
CH7 |
Pan fine |
|
CH8 |
Tilt fine |
|
CH9 |
X/Y speed |
|
CH10 |
ZOOM |
|
CH11 |
C |
|
CH12 |
M |
|
CH13 |
Y |
|
CH14 |
C/M/Y speed, fast to slow |
|
CH15 |
C/M/Y speed, slow to fast |
|
CH16 |
Reset |
