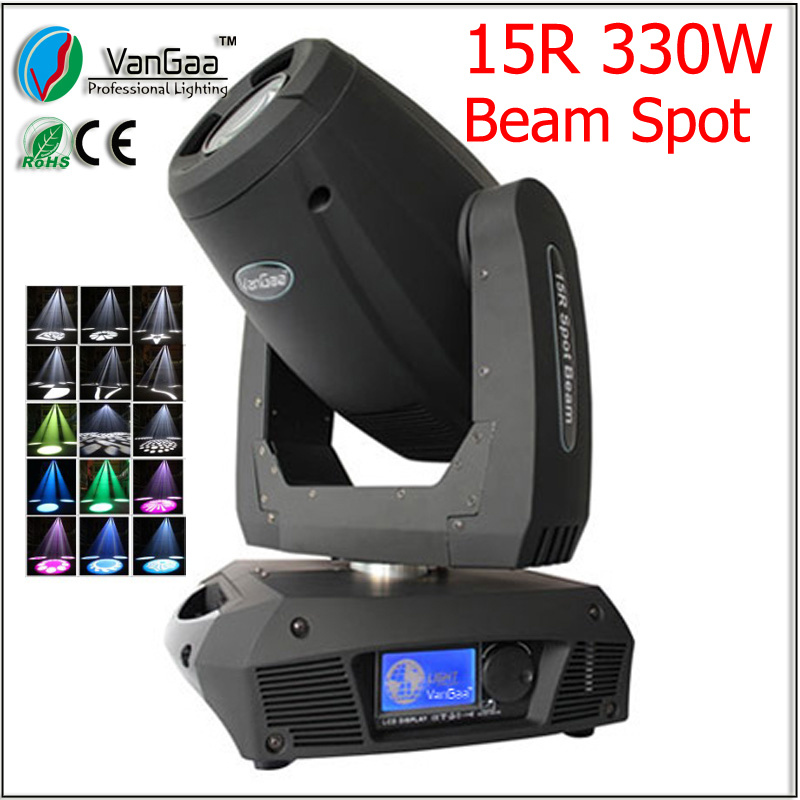

· This new style 350W intelligent moving head zoom beam light has novel design and compact structure can be as a very professional moving head light. It has small beam angle, bean angle scale freely, has multistage beam angle change effect. It has high brightness, downy lighting, and professional linear focus to meet the high quality lighting needs. This type moving head light can be widely used in professional stage performances, studio, TV station, the theatre and other entertainment places.
Features:
· New style intelligent moving head light, beam lighting with zoom function;
· Double prism effect, beam angle adjustable;
· 9 degree beam, close to the parallel light, electronic linear focus, multistage beam angle change effect;
· CMY color change system, 8 rotating gobo wheel;
· With soft light angle adjustable function;
· Built-in long life battery which can be automatically charging, don't need connect the power to set the address ID;
· Wireless DMX 512 receiving modules are optional.
Specifications:
· Input power: AC120~240V 50/60hz
· Power Consumption: 350W MAX
· Light sources: 17R 350W YODN lamp
· Lifespan: 1500hours
· Color temperature: 8000K
· Output lux: 10, 500lux at 20 meters
· DMX Channels: 21CH/23CH/34CH 3 DMX channel Modes
· Control: 3-pin&5-pin DMX
· CMY: CMY Color Mixing System
· Lens: Anti-reflective coated lens
· Color: 6 colors + open
· Fix gobo: 14 fixed gobos + open
· Rotation gobo: 8 rotation gobos + open
· Focus: Motorized focus
· Zoom: 9degree to 27degree Variable Zoom Beam Angle
· Prism: 3 face prism and prism rotation and 16 prism macro
· Dimmer: Mechanical Dimmer 0-100%
· Strobe: Variable speed Shutter / Strobe
· Iris: Motorized Iris
· Pan/Tilt: 540degree for pan, 270degree for Tilt
· Fixtures: Remote controller lamp's switch function, display light and lamp's using time
· Structure: Heat-proof plastic+ module pressing alloy materials
· IP rate: IP20
· Weight: 23kgs
· Dimensions: 409*419*541mm
|
Trade Terms |
|
MOQ |
1 PCS |
|
Price term |
EXW Or FOB Or CIF |
|
Shipping method |
By DHL,UPS,Fedex if small order; And ship by sea or air if bulk order |
|
Payment terms |
T/T or Western Union or Paypal |
|
Sample time |
3-5 workdays after received the payment |
|
Lead time |
Usually 3-30 workdays depend on the quantity after we received the deposit |
|
Packing |
Carton or Flight case(Flight case need to buy) |
|
Warranty |
1+4 years |
|
After sells service |
1). The time of the product quality warranty is 1 year , Xenon lamp has 3 months quality warranty. After-sell service time is 4 years. If the products have passed the quality warranty time, we will still provide the technical support and solution of the products, and sell the parts of the products for the maintenance if the products are still selling(not stop manufacture);
2). In the quality warranty time, because of the quality(not man-made sabotage), the products couldn't operate normally, the buyer can enjoy the right of quality warranty service. The buyer have to provide the pictures and videos to show the matter of the products. The seller will provide the spare parts and technical supports to solve the trouble. Seller will bear the all cost of the spare parts for repairing and the shipping of the parts. If it still couldn't deal with the mater, please see term 3;
3). In the quality warranty service time, if the remote technical assistance and parts still couldn't deal with the matter of the products, the buyer have the right to send back the products to the factory to re-new. We will send the re-new ones to the buyer in 7 days. The cost of freight from buyer to the factory will be full paid by buyer. The seller will pay one-quarter of the cost for the freight from factory to buyer. The last three quarter should be paid by buyer;
4). In the after-sell service time, the buyer can get the technical support and solution for the products and can buy the parts for the products maintenance and updating. Please check the term 1. |
|
Accept |
OEM |
|
23CH |
21CH |
34CH |
|
1 |
Pan |
1 |
Pan |
1 |
Pan |
|
2 |
Pan Fine |
2 |
Pan Fine |
|
3 |
Tilt |
2 |
Tilt |
3 |
Tilt |
|
4 |
Tilt Fine |
4 |
Tilt Fine |
|
5 |
Color Wheel |
3 |
Color Wheel |
5 |
Color Wheel |
|
6 |
Color Wheel Fine |
|
6 |
Cyan |
4 |
Cyan |
7 |
Cyan |
|
8 |
Cyan Fine |
|
7 |
Magenta |
5 |
Magenta |
9 |
Magenta |
|
10 |
Magenta Fine |
|
8 |
Yellow |
6 |
Yellow |
11 |
Yellow |
|
12 |
Yellow Fine |
|
9 |
Rotating Gobo |
7 |
Rotating Gobo |
13 |
Rotating Gobo |
|
10 |
Rotating Gobo Rotation |
8 |
Rotating Gobo Rotation |
14 |
Rotating gobo index |
|
15 |
Rotating Gobo Fine |
|
11 |
Fixed Gobo |
9 |
Fixed Gobo |
16 |
Fixed Gobo |
|
17 |
Fixed Gobo Fine |
|
12 |
3 Facet Prism and Macro |
10 |
3 Facet Prism and Macro |
18 |
3 Facet Prism and Macro |
|
13 |
Rotating Prism |
11 |
Rotating Prism |
19 |
Rotating Prism |
|
20 |
Rotating Prism Indexing Fine |
|
14 |
Focus |
12 |
Focus |
21 |
Focus |
|
22 |
Focus Fine |
|
15 |
Zoom |
13 |
Zoom |
23 |
Zoom |
|
24 |
Zoom Fine |
|
16 |
Shutter |
14 |
Shutter |
25 |
Shutter |
|
17 |
Dimmer |
15 |
Dimmer |
26 |
Dimmer |
|
27 |
Dimmer Fine |
|
18 |
Iris |
16 |
Iris |
28 |
Iris |
|
29 |
Iris Fine |
|
19 |
Frost |
17 |
Frost |
30 |
Frost |
|
20 |
Speed of CMY |
18 |
Speed of CMY |
31 |
Speed of CMY |
|
21 |
Speed of Pan/Tilt |
19 |
Speed of Pan/Tilt |
32 |
Speed of Pan/Tilt |
|
22 |
Color Macro-CMY Color Wheel |
20 |
Color Macro-CMY Color Wheel |
33 |
Color Macro-CMY Color Wheel |
|
23 |
Lam on&off Reset |
21 |
Lam on&off Reset |
34 |
Lam on&off Reset |
