Product Description:

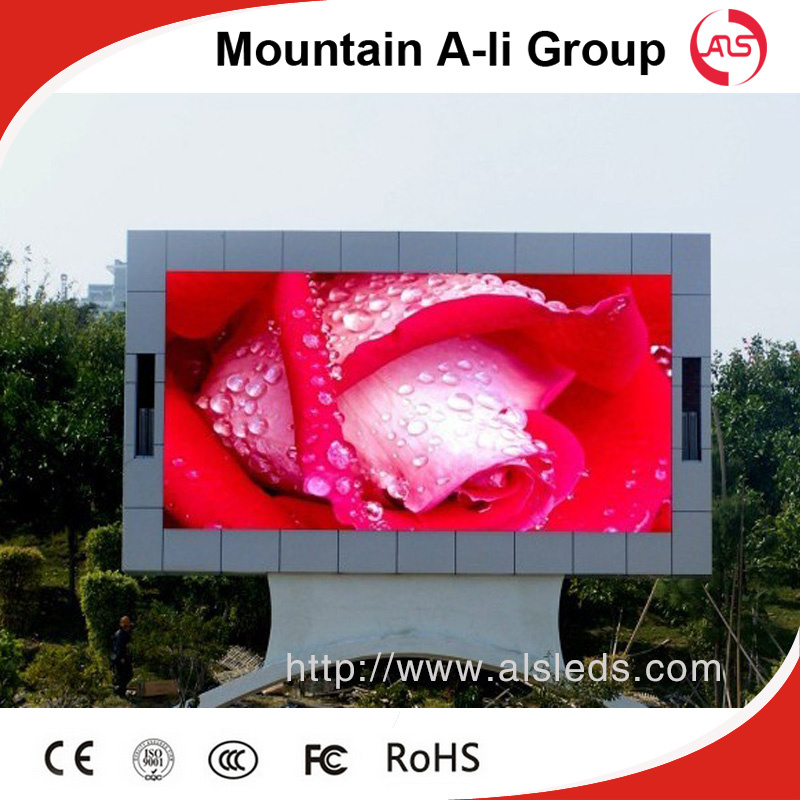

P6 Outdoor DIP Full Color LED Display
Product Features :
1.Low energy consumption ,long lifespan , less maintenance performance .
2.No color difference , concentrating well, good veiwing angle .
3.Better waterproof , better radiation ,better dust proof ,good quality modules ,under the same conditions ,using two more years than SMD .
4.High brightness , high refresh ,the biggest advantage of a comprehensive reflection of outdoor HD LED display .
5.Simply installation , easy to maintain ,easy to use .
Using Range:
Widely used in a variety of needs large hall, sports arena, banking, telecommunications, government
agencies, terminal,pier, railway stations, the stock market and other trading market, medical systems,
eletric power, galleries and other publicity, advertising, information diseemination, the guide places.
Specifications:
Unit Module | Item | parameter |
Model | P6 FULL Color Led Module |
Module size | 192mm*96mm |
Pixel Pitch | 6mm |
Pixel Density | 27777dots/m2 |
Pixel Configuration | 1R1G1B3 in 1 |
Module Resolution | 32dots(W)*16dots(H) |
Max power | 20w |
Module Thickness | 2.7cm |
Module Weight | 0.4kg |
Driving Method | Constant Current Driving |
Scan Method | 1/8scan |
Interface Way | HUB75 |
Brightness | ≥7000cd/m2 |
Unit Module | Cabinet Size | 768mmx768mm |
Cabinet Composing | 32pcs |
Power supply Mode | 5V/40A 5V/60A |
Cabinet Resolution | 128*128dots |
Optimal Viewing Distance | 5M-50M |
Optimal Viewing angle | 160°(W)120°(H) |
Enviroment Temperature | Storage :-35ºC-+85ºC work :-20ºC-+50ºC |
Power | Relative Humidity | 10%-95% |
Operating Voltage | AC220V±10% |
Average power | 350W/H |
Max power Consumption | ≤600W/m2 |
Current | ≤20mA (Single LED ) |
Control system | Computer | Pentium4 or above P4 or above |
Operate system | WIN98/2000/NT/XP |
Control Mode | Synchronization with PC |
Main technical parameter | Driving Device | IC Constant current driving |
Refresh Rate | ≥600HZ |
Gray/Color | RGB each 256 grade, can display 16.7M clolor |
MTBF | ≥9000hours |
Power Switch | Automatic Switch |
Display Mode | 800*600/1024*768/1024*900 |
Why choosed us:
1.Price Advantage: No.1 cost effective
2.Quality advantage: serious QC control system , best material
3.Service advantage: after service dept& Tech Dept. Perfect after sales system
4.ISO9001,CE , CCC,ROHS Certificates
Trade Terms:
1.Packing: Anti-shaking wooden cabinet /Air flight case/carton
2.Shipping port: Shenzhen. China
3.Shipping freights are quoted according to your requests
4.Delivery time:5-15 working days
5.2 years warranty ,lifelong maintaining. In the Maintenance period, free of all maintenance charges.
After Maintenance period, only charge the material costs fees.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
