Specifications
LED wall washer uses 3 in 1 LEDs as light source, RGB, CE/RoHS certificates, 2 years outdoor product warranty, super brightness

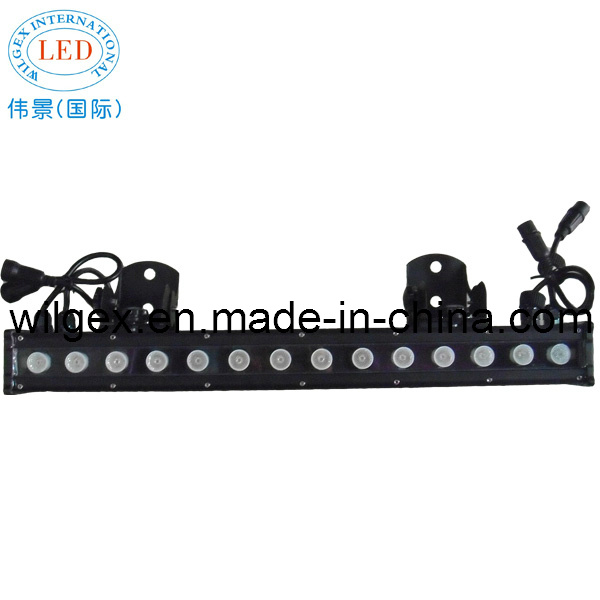

Product Name: Lineable LED wall washer
This lineable LED wall washer uses 14pcs 3 in 1 high power Edison brand LEDs as the light source. RGB color, rich color changing effect. Can be used indoor or outdoor for the portection level IP66.
Features:
1)The LED wall washer is mainly used for decorating and highlighting in building frame, garden, etc.
2)The LED wall washer can work in independent mode and DMX mode, which can generate various color changing effects, such as flashing, fading, steady, seven color jumping synchronously etc. 256 class gray degree dimmer, DMX programable(thousands of effects available if many lightings connected together)
3)Elegant appearance
4)Compact size for narrow space installation
5)Pure spectrum, no UV
Application:
1)Commercial building projection
2)Lights for canopy, corridor, window, archway
3)Lights for bar, disco, pub, club, show and events
4)Other outdoor lights
Specification:
Material of Shell: Aluminum alloy Shell with tempered glass cover
Rotary angle: 180 degree
Input Voltage: 100V AC -256V AC
Protection Rating: IP66
Operating Temperature: -20 degree -- +40 degree
Color: Multi-color (RGB 3 in 1)
Certificates: CE/RoHS
Beam Angle: 15/25/35/45 degree
Lifespan: 50000 hours
DMX agreement: Standard DMX512 agreement
DMX Channel: 4 CH
DMX signal cable: 4 Pin waterproof signal cable
Power: 45W
Dimension: L617 X W81 X H81mm
Control Mode: DMX512, master/slave mode
Weight: 3kg
Projecting range: ≤ 10M
Function:
Seven color chasing, seven color fading, seven color flashing
Master/slave mode
Control mode
1: Independent mode: Choose the effects that you need by pressing the buttons on the side cap of light;
2: DMX mode: International standard DMX512 signal control (3XLR)
Packing: Paper box
|
Spcifications |
|
Light source: |
14pcs 3 in 1 high power Edison brand LEDs |
Working voltage: |
24V DC |
|
LED Brand: |
Edison |
Rotary angle |
180 degree |
|
Color: |
Multi-color (RGB 3 in 1) |
Housing Material: |
Aluminum alloy |
|
Beam angle: |
15/25/35/45 degree |
Working temperature: |
-20 - +40 degree centigrade |
|
DMX agreement |
standard DMX512 agreement |
Working mode: |
DMX512,master/slave mode |
|
Dimension: |
L617 X W81 X H81mm |
DMX Channel |
4 CH |
|
Weight: |
3.0kg |
Lifespan: |
50,000hrs |
|
DMX signal cable |
4 Pin waterproof signal cable |
Warranty: |
2 years |
Our firm brings a team of successful lighting manufacturers and sales experts in the field of LED lighting production.
We have over 12 years of professional experience in this field. Through the complete and rich information, you will easily find satisfactory services to meet your market demands.
We are located in Dongguan City, Guangdong Province and were established in 2003. Our firm has developed as a strong business group consisting of three major business entities - Dongguan Jiawen Lighting Limited, Wilgex Lighting Limited and Wilgex International Limited.
We have a 2, 000-square-meter factory and 124 experienced workers to produce different product. We strongly believe both the quality of our products and the productivity of our factory will fulfill any of your market needs.
We can deliver your orders within 7 to 15 days.
Quality Control personnel who are all experts in their respective product assignments check the quality at every stage of production, from the incoming raw materials to finished products. Before we send the finished products, each product will be strictly tested for 24 Hours all along. And we have the strict testing report for every processing. All our Operations are ISO 9001: 2000-certified and our products are CE and RoHS standards compliant.
Our raw material (LED) comes from CREE, Taiwan Epistar and Edison. And our all products (Nichia patented) can be available for Osram, sold in Europe and Japan. Our products show extremely long life span and stability in the function. We guarantee the lifespan of over 50, 000 hours. The average light output after 10, 000-hour lighting will be 93% of the original brightness. We also offer the long product warranty of our finished products (Not less than 3 years).
Our major business partners spread over the United States, Canada, Europe and the Middle East. Our services include developing our own products as well as making OEM manufacture for our clients to meet different market demanded. We have a group of highly professional and experienced salesmen in mainland China, Dubai, Hong Kong and Chicago to best serve our clients. With our professional knowledge, experience and great sense of market, we have strong confidence to provide the best LED lights you need. Please contact us for the best services you can ever get.
We make a variety of LED lighting including the following series:
LED decoration and advertisement series
LED Wall Washer
LED Floodlight
LED PAR cans
LED T5, T8 Tubes
LED Wall Panel
LED Dance Floor
LED Moving Head lights
LED Neon Flex
LED illuminate application series
LED stage lights series
LED architecture lighting series
