Specifications
RGB LED Wall Washer
12/24/30 pcs Edison LED
Size: L500/1000*W76*H163mm
Super bright, project distance: 20m/10m/7m
UL, CE, RoHS.

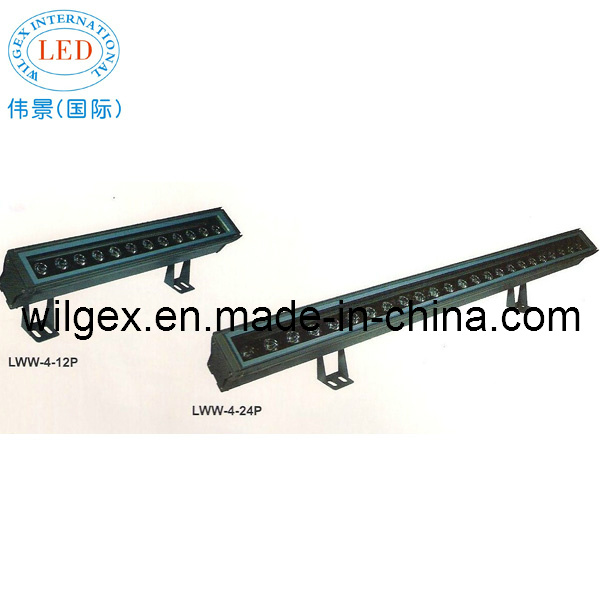

High Brightness LED Wall Washer
Technical Data:
1. Light source: 12/24/30 pcs Power Edison LED/1W.
2. Power consumption: 28/56Watts(Max. ).
3. Volage: 120V/240V AC.
4. Color: RGB Multi-color.
5. Working voltage: 24V DC.
6. Beam angle: 15° /30° /45° .
7. Rotary angle: 180° .
8. Dimension: L500/1000*W76*H163mm
9. Weight: 2.6/4kg
10. Housing material: Aluminum alloy.
11. Project distance: 20m/10m/7m.
12. Working temperature: -20° C ~ 40° C.
13. Working mode: Independent, DMX, Master/Slave mode.
14. Driver: MW(meanwell) driver inside of the lamp.
15. Controller: Master-pro with remote control.
16. Lifespan: 50, 000 +hours.
17. Certificate: UL, CE, RoHS.
18. Warranty: 2 years.
19. IP Rating: IP20, indoor use only.
Feature:
1. Mainly used for decorating and highlighting building frame, garden, restaurant and even stage etc
2. Offering colorful and magic environment
3. Various color changing effects: Static, fading, chasing and flashing
4 Long lifespan, more stable and durable
5. Uses 1W LED as lighting source, high illuminated efficiency
6. Uses aluminum housing as light material, easily cooling and anode of surface deal with oxidation Polish, smooth and glossy surface
7. Applied for aluminum PCB housing board as circuit board
8. The heat emitting by passing to aluminum slot in the bottom
9. DMX512 controlled various kinds of changing design and gray adjustment
Application:
Widely applied for bureau, top room, emporium shop, stage, showroom, pole lamp, wall washer, building, advertisement decoration and character sign.
|
Model No. |
WJ-LWW-4A-12/24/30P |
|
Light source |
12/24/30 pcs Power Edison LED/1W |
|
Input voltage |
120V/240V AC |
|
Power consumption |
28/56Watts(Max.) |
|
Beam angle |
15°/30°/45° |
Rotary angle
|
180° |
|
Dimension |
L500/1000*W76*H163mm |
|
Weight |
2.6/4kg |
|
Working mode |
Independent, DMX, Master/Slave mode |
|
Project distance |
20m/10m/7m |
|
Housing material |
Aluminum alloy |
|
Driver |
Meanwell driver inside of the lamp |
|
Controller |
Master-pro with remote control |
|
Working temperature |
-20°c ~ 40°c |
|
Warranty |
2 years |
|
Certificate |
UL , CE, RoHS |
Our firm brings a team of successful lighting manufacturers and sales experts in the field of LED lighting production.
We have over 12 years of professional experience in this field. Through the complete and rich information, you will easily find satisfactory services to meet your market demands.
We are located in Dongguan City, Guangdong Province and were established in 2003. Our firm has developed as a strong business group consisting of three major business entities - Dongguan Jiawen Lighting Limited, Wilgex Lighting Limited and Wilgex International Limited.
We have a 2, 000-square-meter factory and 124 experienced workers to produce different product. We strongly believe both the quality of our products and the productivity of our factory will fulfill any of your market needs.
We can deliver your orders within 7 to 15 days.
Quality Control personnel who are all experts in their respective product assignments check the quality at every stage of production, from the incoming raw materials to finished products. Before we send the finished products, each product will be strictly tested for 24 Hours all along. And we have the strict testing report for every processing. All our Operations are ISO 9001: 2000-certified and our products are CE and RoHS standards compliant.
Our raw material (LED) comes from CREE, Taiwan Epistar and Edison. And our all products (Nichia patented) can be available for Osram, sold in Europe and Japan. Our products show extremely long life span and stability in the function. We guarantee the lifespan of over 50, 000 hours. The average light output after 10, 000-hour lighting will be 93% of the original brightness. We also offer the long product warranty of our finished products (Not less than 3 years).
Our major business partners spread over the United States, Canada, Europe and the Middle East. Our services include developing our own products as well as making OEM manufacture for our clients to meet different market demanded. We have a group of highly professional and experienced salesmen in mainland China, Dubai, Hong Kong and Chicago to best serve our clients. With our professional knowledge, experience and great sense of market, we have strong confidence to provide the best LED lights you need. Please contact us for the best services you can ever get.
