High power LED wall washer, used for building, hotel, shows, bridges, etc. Color changing or single illumination. Suit to both outdoor and indoor lighting, abundant color, RGB, single color(warm white, cold white, blue, red, green, yellow...)
Considering the LED life and stablility of the light, our design is on base of good heat dissipation through resonable aluminum shell design and constant current investigation& improvment step by step. Now our LED products are all good at heat dissipation.
Main features:
Material: Oxidized Aluminum, Die-casting Cover,
RGB Color Mixing(256 gray scale) or Single Color
5 DMX Channels, 31 Preset Programs
Powerful heat dissipation
Constant Current Source to last the life of LED
Waterproof, easy for installation and maintance
Outlay DC Power Supply
DIP Address can be written by MC-203(one of our DMX controller)
Lens Angle: 15, 30, 45
|
Model |
Voltage |
LED |
life of LED |
Color |
Power |
Size(mm) |
IP Rating |
|
WWA-118 |
24VDC |
18-1W double row |
50000H |
RGB |
25W |
L310*W60*H134 |
IP65 |
|
WWA-136 |
24VDC |
36-1W double row |
50000H |
RGB |
50W |
L610*W60*H134 |
IP65 |
|
WWA-172 |
24VDC |
72-1W double row |
50000H |
RGB |
100W |
L1210*W60*H134 |
IP65 |
|
WWB-309 |
12VDC |
9-3W |
50000H |
RGB |
25W |
L310*W60*H134 |
IP65 |
|

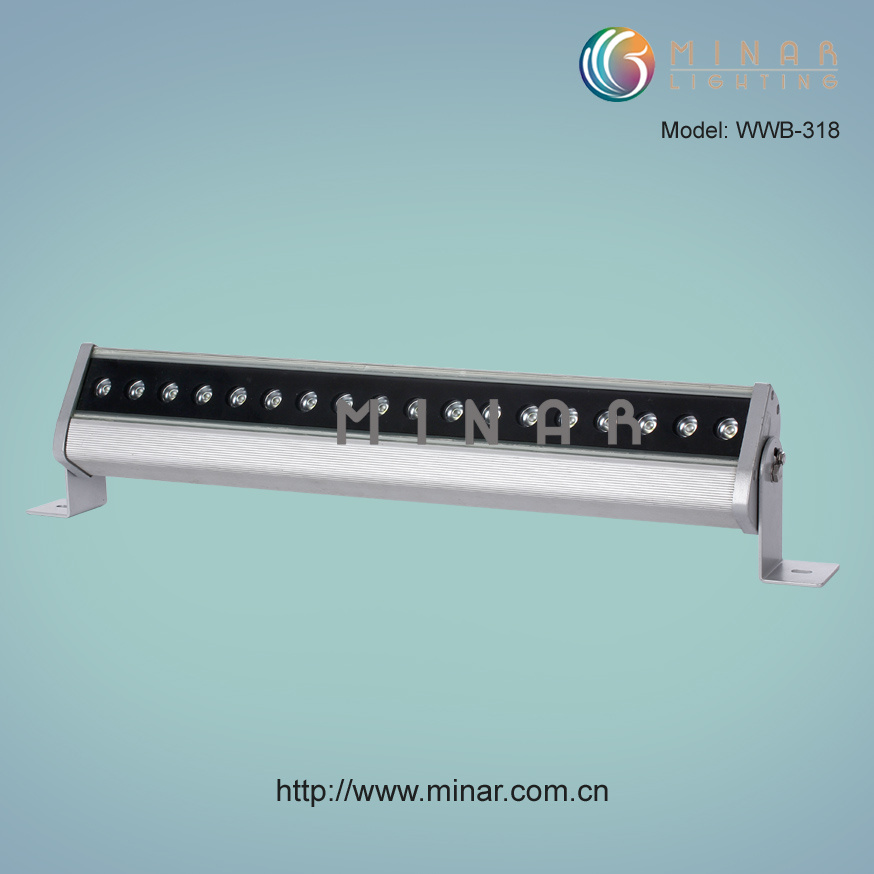

WWB-318 |
24VDC |
18-3W |
50000H |
RGB |
50W |
L610*W60*H134 |
IP65 |
|
WWB-336 |
24VDC |
36-3W |
50000H |
RGB |
100W |
L1210*W60*H134 |
IP65 |
|
WWC-109 |
12VDC |
9-1W |
50000H |
RGB |
13W |
L310*W55*H100 |
IP65 |
|
WWC-118 |
24VDC |
18-1W |
50000H |
RGB |
25W |
L610*W55*H100 |
IP65 |
|
WWC-136 |
24VDC |
36-1W |
50000H |
RGB |
50W |
L1210*W55*H100 |
IP65 |
|
WWD-109 |
12VDC |
9-1W |
50000H |
RGB |
13W |
L300*W56*H33 |
IP65 |
|
WWD-118 |
24VDC |
18-1W |
50000H |
RGB |
25W |
L600*W56*H33 |
IP65 |
|
WWD-136 |
24VDC |
36-1W |
50000H |
RGB |
50W |
L1200*W56*H33 |
IP65 |
Minar Illumination Electronic Limited was established in May 2002, we are a high-technology enterprise which apply ourselves to the development, manufacture and sales of fiber optic lighting & LED lighting and LED controller series products.
There are mainly several products series as follows:
*Fiber Optic Lighting series: Fiber Optic Kits, Fiber optic chandelier, Light engine, PMMA plastic fiber, Multi string end fiber, Multi string side fiber, Side spot light fiber, Fiber optic end piece
*Controller Series: LED dimming driver, DMX controller, DMX512 signal amplifier
*LED Lighting Series: LED cabinet, LED flood light, LED wall washer, LED underwater light, LED underground light, LED down light, LED line light, LED spot light, LEDbulb, LED
