High power LED wall washer, used for building, hotel, shows, bridges, etc. Color changing or single illumination. Suit to both ourdoor and indoor lighting,
Considering the LED life and stablility of the light, our design is on base of good heat dissipation through resonable aluminum shell design and constant current investigation& improvment step by step. Now our LED products are all good at heat dissipation.
Main features:
Material: Oxidized aluminum, die-casting cover,
RGB color mixing(256 gray scale) or single color
5 DMX channels, 31 preset programs
Powerful heat dissipation
Constant current source to last the life of LED
Waterproof, easy for installation and maintance
Outlay DC power supply
DIP address can be written by mc-203(one of our DMX controller)
Lens angle: 15, 30, 45
Model
|
Voltage |
LED |
life of LED |
Color |
Power |
Size(mm) |
IP Rating |
|

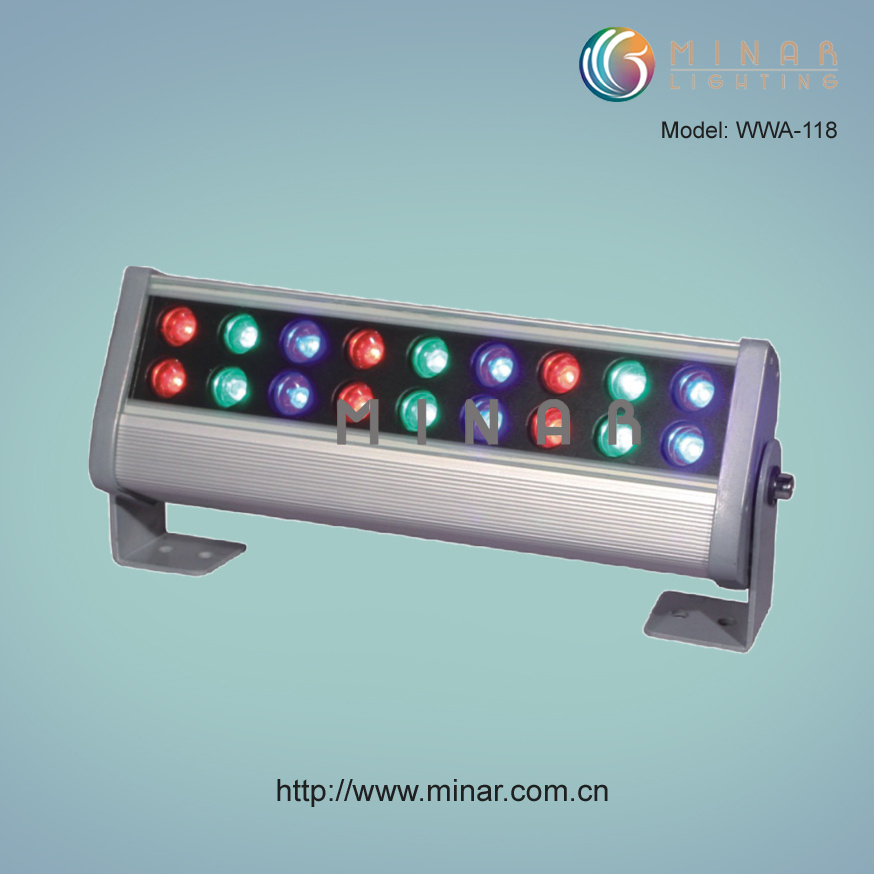

WWA-118 |
24VDC |
18-1W |
50000H |
RGB |
25W |
L310*W60*H134 |
IP65 |
|
WWA-136 |
24VDC |
36-1W |
50000H |
RGB |
50W |
L610*W60*H134 |
IP65 |
|
WWA-172 |
24VDC |
72-1W |
50000H |
RGB |
100W |
L1210*W60*H134 |
IP65 |
|
WWB-309 |
24VDC |
9-3W |
50000H |
RGB |
24W |
L310*W60*H134 |
IP65 |
|
WWB-318 |
24VDC |
18-3W |
50000H |
RGB |
42W |
L610*W60*H134 |
IP65 |
|
WWB-336 |
24VDC |
36-3W |
50000H |
RGB |
84W |
L1210*W60*H134 |
IP65 |
|
WWC-109 |
12VDC |
9-1W |
50000H |
RGB |
12W |
L310*W55*H134 |
IP65 |
|
WWC-118 |
24VDC |
18-1W |
50000H |
RGB |
24W |
L610*W55*H134 |
IP65 |
|
WWC-136 |
24VDC |
36-1W |
50000H |
RGB |
42W |
L1210*W55*H134 |
IP65 |
|
WWD-109 |
12VDC |
9-1W |
50000H |
RGB |
12W |
L310*W55*H133 |
IP65 |
|
WWD-118 |
24VDC |
18-1W |
50000H |
RGB |
24W |
L610*W55*H133 |
IP65 |
|
WWD-136 |
24VDC |
36-1W |
50000H |
RGB |
42W |
L1210*W55*H33 |
IP65 |
