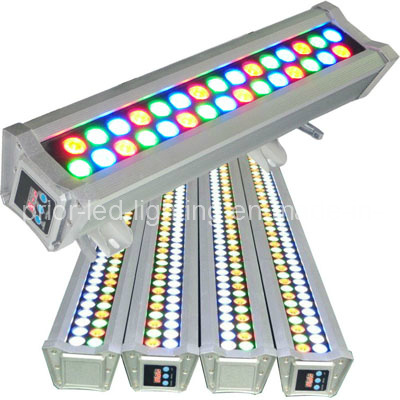

Application:
Stage lighting, Disco hall, Large literature performance, Gymnasium lighting, Temporary stage
Performance, City lighting system, TV station, Conference center, professional showplace,
Topic park, Bar lighting and so on.
TECHNICAL SPECIFICATIONS
Power supply: 100-120V AC 50/60Hz or 220-240VAC 50/60Hz
Power: 35W 43W 96W
DMX-control-channels: 5CH(R G B S D)
DMX-512-connection: 3-pin
Maximum ambient temperature ta: 40°
Maximum housing temperature tB (steady state): 60°
LED quantity: 30PCSX1W 36PCSX1W 80PCSX1W
LED Color: W/A/R/G/B
LED angle: 15/25/35/45/60 degree
Shell material: Aluminum Anodizing
Protection class: IP65
Working Temperature(C): -20~45
Size: (LxWxH): 428*105*108MM 30W
600*105*108MM 36W
1000*105*108MM 80W
Package Size: 460*150*150MM (Single) 630*150*150MM(Single) 1030*150*150MM(Single)
Approval: CE & RoHS, FCC
LCD Setting:
DRIVER DISPLAY MENU
Adr = DMX 512 ADDRESS (1-512)
A-1 = Colors Fading
A-2= Colors Jumping
A-r = Static RED
A-G = Static GREEN
A-b = Satic BLUE
A-S = Colors Flashing
A-D = Whole Brightness DIMMER LEVEL
RGB DMX channels
5CH include red, blue, green, strobe, dimming
RGBW DMX channels:
6CH include red, blue, green, white, strobe, dimming
RGBWA DMX channels:
7CH include red, blue, green, white, amber, strobe, dimming
DMX-512 connection / connection between fixtures
The master / slave-operation enables that several devices can be synchronized and controlled by
One master device. On the device DMX512 wireless receiver / transmitter, which can be used for connecting several devices. Choose the device which is to control the effects. This device then works as master-device and controls all other slave-devices, which are to be connected to the master-device via DMX512 wireless receiver / transmitter.
Master / slave connection set requirements: The host should be set: In addition to any mode of operating mode (NO ADR), should be set from the machine (ADR) mode: DMX And the each group can only have one host mode, can not exist two or more host.
Addressing
Each device occupies different channels in different modes. To ensure that the control signals
Are properly directed to each device, the projector requires addressing. This is to be done for every single device by changing the LCD setting from below info.
The starting address is defined as the first channel from which the device will respond to the controller. If you set, for example, the address to channel 5, the device will use the channels from CH5. (NO. 1 address: 1R 2G 3B 4S 5D/NO. 2 Address: 6R 7G 8B 9S 10D...)
Please make sure that you don't have any overlapping channels in order to control each device correctly and independently from any other fixture on the DMX data link. If two, three or more devices are addressed the same, they will work the same.
