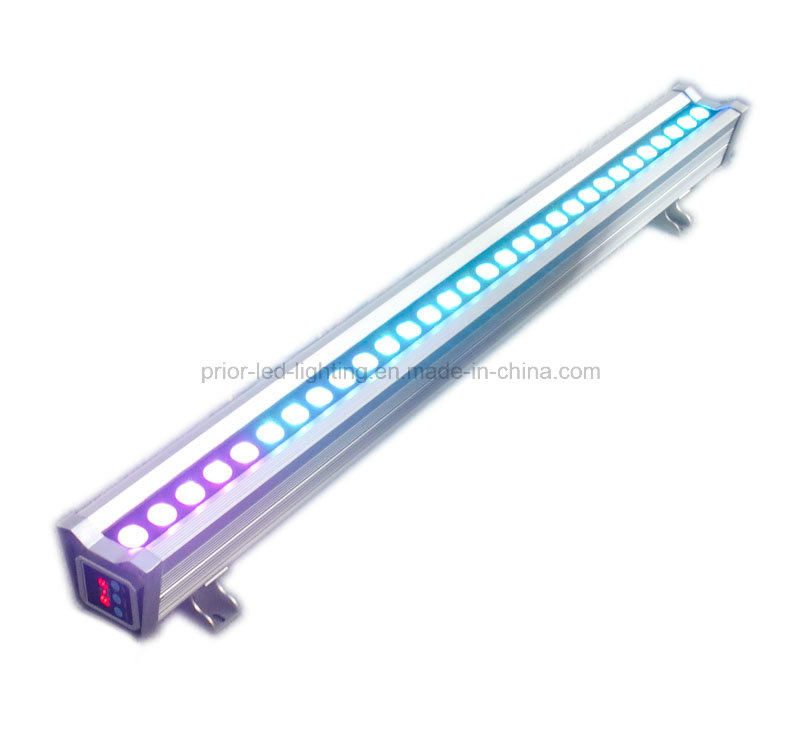

DMX ADDRESSABLE PIXEL LED WALL WASHER
TECHNICAL SPECIFICATIONS
Power supply: 100-240VAC 50/60Hz
Power consumption: 90W
DMX-control-channels: 18CH(RGB /RGB/RGB/RGB/RGB/RGB)
DMX-512-connection: DMX512 wireless receiver / transmitter
Size: (LxWxH): 1000*85*115MM
Maximum ambient temperature ta: 40
Maximum housing temperature tB (steady state): 60
Features:
6063 high purified aluminum shell, CNC finish machining, Anode Oxidation treatment .
1) Nice appearance, durable, anti-corrosion, never-discolored .
Physical structure waterproof and dustproof + epoxy potting glue treatment;
2) Ensured the wall washer can be operated normally under different kinds of harsh outdoor weather;
3) Waterproof rank: IP65.
4)3IN1 leds or 4in1leds
5) Mixing color better, more even and more brilliant .
6)Inside isolated constant current driver
7) Has the protection functions of open-circuit, short-circuit and overload
8) Ensured the high power LED operates safely
9)With button and numeral display window on each wall washer
10) You can change programs via these buttons , include dreamlike gradual changing, jumping, flashing, dim brightness of single color, etc.
RGB has 18CH DMX channels (RGB / RGB / RGB / RGB / RGB / RGB),
each pixel has 3CH, a total of 6 pixels (6 RGB DMX channels)
DMX Channels: RGB
18CH(1R 2G 3B x6 ):
1 Red
2 Green
3 Blue
4 Red
5 Green
6 Blue
7 Red
8 Green
9 Blue
10 Red
11 Green
12 Blue
13 Red
14 Green
15 Blue
16 Red
17Green
18 Blue
Common problems:
A) Once you find one of the led wall washer does not accept control, please check whether the address code is correct.
B) There is a limit number of led wall washer whether for stage lighting computer control system, or for DMX Controller. This number is obtained by the number of stage lights computer control system's channels divided by the number of wall washer's channels. Over this number you will need to add a DMX device
Cauction:
3 year warranty, repairment, free replacement except damaged artificially
The manufacturer willn¡t offer free service in warranty period if any repaired or uncapped had happened It is better to return to manufacturer if repairment is must, Don¡t do any repairment unless qualified electrician.
The working condition should be under temperature -20¡C~+45¡C ,10%~90%RH,no
congelation,so as to ensure it¡s lifetime.
It cannot be covered by any superstratum, it should be swept periodly to prevent dust.
Application:
Stage lighting,Disco hall,Large literature performance,Gymnasium lighting,Temporary stage
performance ,City lighting system ,TV station ,Conference center , professional showplace,
Topic park ,Bar lighting and so on.
Shenzhen Luxgreen LED Limited, Subsidiary of Prior LED Tech Limited. We are is a high-tech enterprise, combine the design, research&develop, manufacture, and export service of LED lighting products, Our factory is professional supplier of LED strip lights, LED wall washer lights, LED spotlights, LED downlights, LED tubes, LED bulbs, LED lamps, LED inground lights, and matching DMX control system for our products. They cover commercial lighting, office lighting, outdoor lighting, residential lighting, ect.
Our company was established in 2010, we hold the business tenet of "quality first, the supremacy of credibility"purposes, launched patent LED flexible RGBW strip, LED RGBW wall washer lights, and wireless DMX control system, which supplied for Shanghai EXPO 2010 Iceland museum lighting, our all products are praised by the customers.
We sell in Middle-East, Asia, Eastern Europe, North America, South America, Australia, Afica.
We own 2, 000-squaremeter produce area, high-speed chip mounter machine, integrating sphere, reflow soldering machine, glue machine, ect, 5 professional production lines, and one big showroom, Our company has obtained ISO9001 quality system certification as well as CE, RoHS, SGS, certitifications,
Trust us, we can be your reliable supplier, partner.
