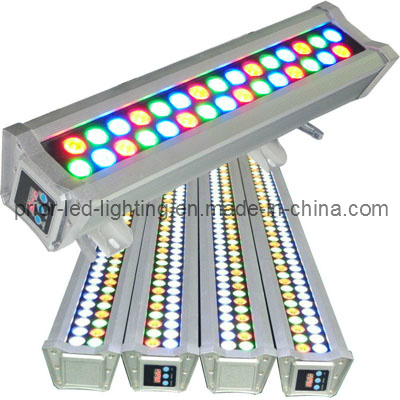

LED Wall Washer Light Double Rows Light RGBWA

Led Wall Washer DMX control, AC85-265V, power adapter included. White, warm white, red, blue, green, yellow, dmx512 channels. High power LED Wall Washer light and Lighting outdoor use IP65. Application: Stage lighting,Disco hall,Large literature performance,Gymnasium lighting,Temporary stage performance ,City lighting system ,TV station ,Conference center , professional showplace, Topic park ,Bar lighting and so on. TECHNICAL SPECIFICATIONS Power supply: 100-120V AC 50/60Hz or 220-240Vac 50/60Hz Power: 35W    43W    96W DMX-control-channels: 5CH(R G B S D) DMX-512-connection: 3-pin Maximum ambient temperature ta: 40° Maximum housing temperature tB (steady state): 60° LED quantity: 30PCSX1W  36PCSX1W  80PCSX1W LED Color: W/A/R/G/B LED angle: 15/25/35/45/60 degree Shell material: Aluminum Anodizing Protection class: IP65 Working Temperature(C): -20~45 Size: (LxWxH): 428*105*108MM  30W               600*105*108MM  36W               1000*105*108MM  80W Package Size: 460*150*150MM (Single)    630*150*150MM(Single)  1030*150*150MM(Single) Approval:CE & RoHS, FCC LCD Setting: DRIVER DISPLAY MENU Adr = DMX 512 ADDRESS (1-512) A-1 = Colors Fading A-2= Colors Jumping A-r = Static RED                           A-G = Static GREEN               A-b = Satic BLUE A-S = Colors Flashing A-D = Whole Brightness DIMMER LEVEL RGB dmx channels 5CH include red,blue,green,strobe,dimming RGBW dmx channels: 6CH include red,blue,green,white,strobe,dimming RGBWA dmx channels: 7CH include red,blue,green,white,amber,strobe,dimming DMX-512 connection / connection between fixtures The master / slave-operation enables that several devices can be synchronized and controlled by one master device. On the device DMX512 wireless receiver / transmitter, which can be used for connecting several devices. Choose the device which is to control the effects. This device then works as master-device and controls all other slave-devices, which are to be connected to the master-device via DMX512 wireless receiver / transmitter. Master / slave connection set requirements: the host should be set: in addition to any mode of operating mode (NO ADR), should be set from the machine (ADR) mode: DMX And the each group can only have one host mode, can not exist two or more host Addressing Each device occupies different channels in different modes. To ensure that the control signals are properly directed to each device, the projector requires addressing. This is to be done for every single device by changing the LCD setting from below info. The starting address is defined as the first channel from which the device will respond to the controller. If you set, for example, the address to channel 5, the device will use the channels from CH5. (NO.1 address: 1R 2G 3B 4S 5D/NO.2 Address: 6R 7G 8B 9S 10D ... .) Please make sure that you don't have any overlapping channels in order to control each device correctly and independently from any other fixture on the DMX data link. If two, three or more devices are addressed the same, they will work the same.
