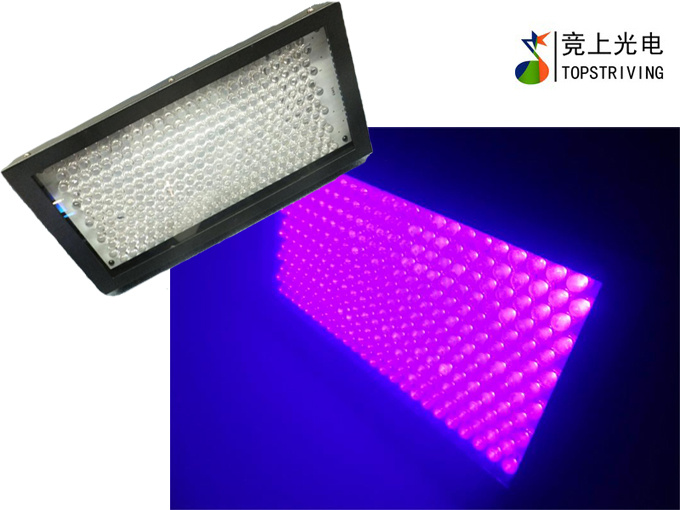

LED UV Light / Black Light / Stage UV Light with 288*10mm UV LEDs (TRLD 717)
Technical Specifications:
(1) Power supply: 90-240V AC 50/60Hz;
(2) Number of LED: 288 PCS high MCD UV LED (ultraviolet);
(3) Power consumption: 60W;
(4) DMX-control-channels: 5CH;
(5) DMX-512-connection: 3-pin XLR;
(6) 20° Beam angle;
(7) Dimensions: 360*250*80mm;
(8) Weight: 5.0 kgs.
AUTO: Run the preset shows;
CF00: Increasing brightness, then decreasing brightness, the speed of increasing brightness, then decreasing brightness can be adjusted by the buttons of UP and DOWN from 00 slowest to 99 fastest.
CCO8: Color changes, the speed of color changes can be adjusted by the buttons of UP and DOWN from 00 slowest to 99 fastest.
CS99: Color selections, the color selections can be done by the buttons of UP and DOWN from 00 to 99.
Y000: Press the button MODE five seconds, till Y000 shows in the led display, the UV color brightness can be adjusted by the buttons UP or DOWN.
|
Function of the control channels |
|
|
5-channel mode |
|
|
Channel 1 |
UV(ultraviolet) color from small to big brightness(dimmig) |
|
Channel 2 |
Strobe from slow to fast |
|
Channel 3 |
Dimmer, color macro |
|
Channel 4 |
Dimmer, increasing brightness, then decreasing brightness, colors following one by one |
|
Channel 5 |
Running speed adjustments |
|
DELIEVER TERMS |
|
Packing |
Flight case/ carton package optional |
|
Trade |
FOB/EXW |
|
Port |
GuangZhou China |
|
Certification |
CE ROHS |
|
Payment Terms |
T/T, Westerm Union, Paypal |
|
Shipping method |
DHL, UPS, FedEx, TNT door to door service, by sea, by air, etc |
|
Delivery time |
40 HQ container within 4 weeks |
|
Brand Name |
Topstriving |
|
Origin |
GuangZhou China |
|
Producting Time |
15-20 days |
|
OEM OR ODM Service |
Accept |
|
MOQ: |
30 PCS |
|
Warranty Time |
Fully 2 year |
