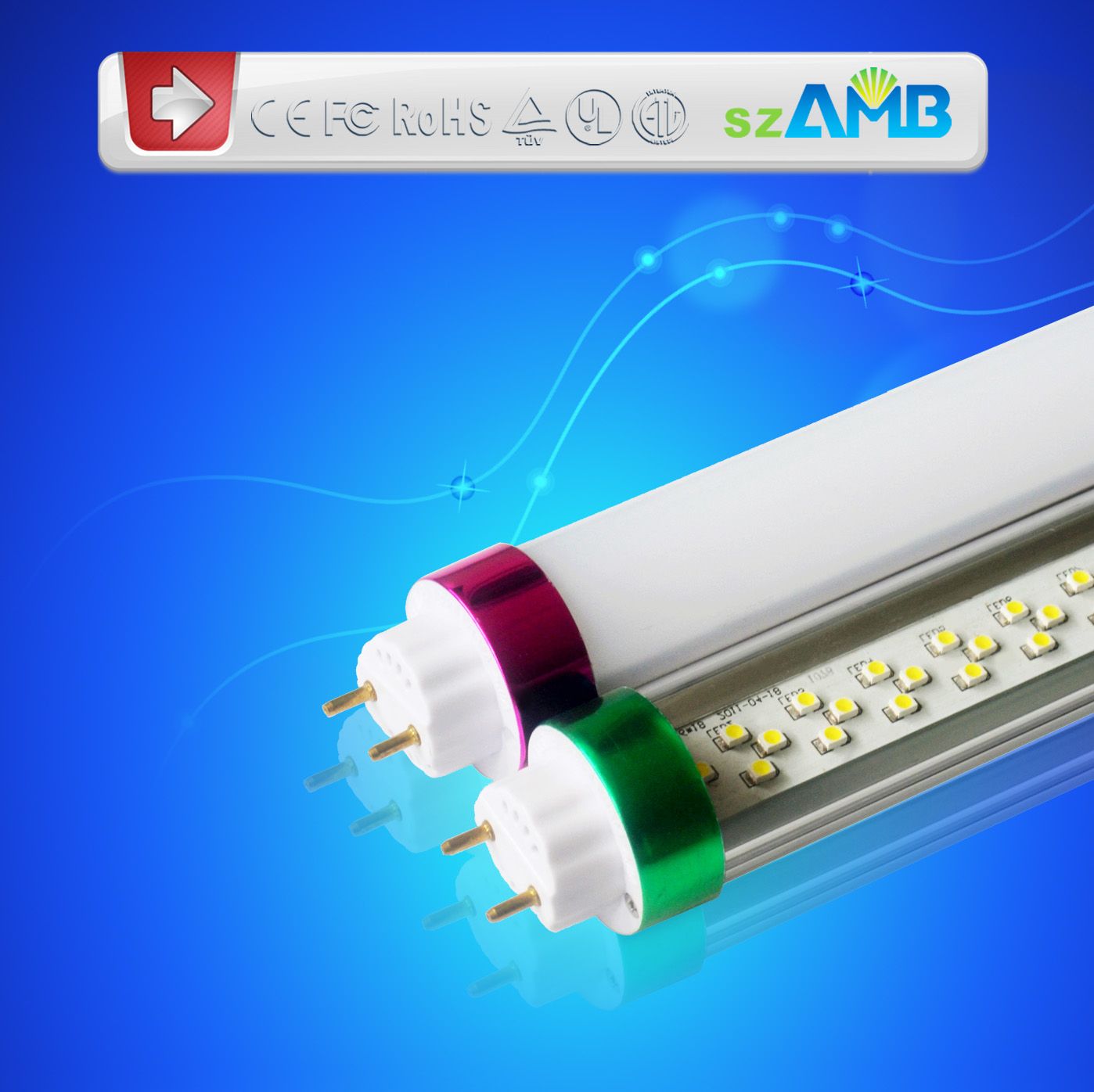

LED tube Light, LED tube, LED lights, High brigtness LED tube, environment protection and enegy saving LED tube.
Material: 1/3PC+1/3PC+1/3AL
Input voltage: AC65-285V
Lamp holder: G13
Diameter: 30.0mm / 26mm
Power: 12W. 18W. 24W
Color temperature: Ww/dw/pw/cw
Length: 600mm, 1200mm, 1500mm
Ra >80 CRI
Light effect (with magnetic ballast)>80Lm/W
Life span80000hrs
COLOR TEMPERATURE:
2800K~3500K
4000K~5000K
5500K~6500K
7000K~8000K
PC lens / Flux(Lum) / LUX(1M):
Transparent / 2040 / 420
Stripe / 1979 / 405
Frost / 1775 / 378
1. Longer life than fluorescent tube: Min 5 years
2. 70%~80% energy-saving comparing fluorescent tubes
3. Solid state, high shock ibration resistant
4. Work with ballast or without ballast
5. No RF interference
6. No flickering
7. Instant soft-start
8. No maintenance costs
9. Produce little heat
10. No mercury and other hazardous materials, fully RoHS-compliant
11. Continuous operation for white LEDs (at least 10 years )
12. Rated to operate from -40-60 degrees Celsius, perfect for environments with extreme climates
Application:
AMB LED tube competitor's similar product
Acrylic front cover: Never get broken easily
Work in two modes: With ballast or without ballast
Use SMD LED with best lumen maintainance use through-hole LED's with high light degradation
Warranty: 3 years no concrete warranty
No hazardous materials & fully RoHS-compliant not RoHS-compliant
Benefits:
1) Solid-state, high shock / vibration resistant
2) Major reduction in power costs
3) No RF interference, No buzzing noise
4) No fluorescent flickering
5) No hazard of mercury or lead entering the environment
6) No danger of broken glass
7) No threat of high-voltage electrocution
8) Maintenance free, easy installation
9) Long lifetime 50, 000+ hrs (5+ years)
10) Low power consumption, high intensity
Applications:
1) Bus, shuttle, railcar passenger interiors
2) Uninterrupted emergency lighting
3) Focused reading and Task lighting
4) Interior design uses
5) Retail store displays
6) Closet illumination
7) Cove lighting
8) Marine recreation applications
9) Concealed accent lighting
10) Edge lighting
11) Under counter lighting
12) Cubicle, workbench lighting
13) Recreational vehicle interiors
|
|
life-span |
life-span for 8hrs/day |
life-span for 24hrs/day |
quantity comparison |
cost for products |
electricity cost |
total cost |
|
led tube |
80000hrs |
10000days(27years) |
3333days(9.1years) |
1 |
individual: $30 total: $30 |
$42 |
$72 |
|
fluorescent |
8000hrs |
1000days(2.7years) |
333days |
10 |
individual: $6.95 total: $69 |
$88 |
$157 |
|
incandescent |
1000hrs |
125days(0.34year) |
42days(6weeks) |
80 |
individual: $1.25 total: $100 |
$420 |
$520 |
SZAMB is professional smart LED high bay, Unique LED floodlight and New panel style LED tube manufacturer located in Shenzen, China
In 2005, SZAMB was founded and started Researching and Developing LED tube, LED high bay and LED floodlight,
In 2006. SZAMB put 80% energy, money to improve LED high bay series, after 9 months SZAMB LED high bay are upgraded to the top level in the world, we are the top LED high bay manufacturers. SZAMB offer 5years warranty time for LED high bay
In 2007, SZAMB cooperated with Japan Netled. Co. Jp to R&D Networked lighting system, which Optimizing the benefits of LED, NETLED allows granular control of long lasting and low power LED lighting down to the tube level through a cloud(Internet) system, By controlling illumination only when, where and to the degree needed, energy saving are optimized and lighting environment is improved
In 2008, SZAMB National dimmer LED tube set a food in the marketing. This dimmable LED tube range is from 0.2%-100%. Which was warm welcome by Canada, USA, EU distributors. Because it saved lots of money and energy for hotels. Airport. Office and commercial buildings
In 2009, SZAMB cooperated with Sweden energy. YB to R&D panel style LED tube, We know this new design LED tube will change all normal LED tube' S future, our Idea is LOF design (LED On Fixture),
Plug and play LED fixture with male and female connector and IP65 waterproof class advantages, SZAMB panel style LED tube is welcomed by for all high-level hotel, market, commercial building and outdoor garden, road project, SZAMB Saved electronic fee. Fixture fee, wireless fee and replacement fee for our customers
In 2010, SZAMB cooperated with Canada Wilcox Electric company to R&D green housing LED lighting, after 6moths testing by Columbia University, Yale university, it approved SZAMB 200W LED fixture is the best solution for fruit and vegetables growing
In 2011 SZAMB cooperated with Holland Lioris LED driver company. From 2011, SZAMB 9-40W LED tube with 50000hours warranty time set a foot in marketing, we are the only one factory can guarantee 50000hours for full tube because of the exceeding 0.99PF LED driver, , We do the testing in Germany, get TUV, VDE and CE report in Germany located testing lab, this driver tech is most 50 years progressive than other branch
In 2012, SZAMB netled WiFi control l LED tube, LED high bay finished the testing. NETLED lighting in one' S Personal Area can be controlled by iPhone, iPad or other smartphone (Android)
SZAMB cooperated with Japan Yashima company to R&D AC100-260V COB LED. Which is dimmable AC COB LED, no need driver. With this new technology, we will make more and more mini LED high power lighting. Save more money for our customers
We set up on the firm belief of offering the high quality, unique design, automatic functions and fully warranted LED tube and LED high bay to our customer at the most competitive price. We have a strong engineer team which composed of 15 individuals with perfect designers.
Our management system is strictly conducted according to ISO9001-2008, TUV, SGS standard. We always stay ahead of this field because of our talented creativeness, like Unique designed structure and attractive appearance, stable quality proved by TUV/CE/RoHS/FCC, ETL and UL certification. We have a great production group to ensure our production capability, professional LED tube SMT, Soldering machine and 102 people on the production line to make sure 30, 0000PCS of LED tubes and 100000PCS LED high bay output every month. LED technology is high efficiency, cost effective, energy efficient and environmental friendly. Our goal is to keep on researching and developing super LED tube and LED high bay, to offer a bright world. We will let the world know that "SZAMB change your light life ".
