Application:
Home Lightng, office lighting, display case lighting
Product Features:
1. Unique and high efficiency heat sinking design with 6063-T5 aluminous alloy
2. CE certificated & RoHS compliant
3. PMMA lens with wide angle with light transmission rate at 92%.
4. Tube and fixture integration.
5. Long lifespan, over 50, 000 hours.
6. Low electricity consumption, your electricity bill will be cut down sharply. Save 70— 80% electric energy than conventional lamps.
7. No ballast, no starter, no flickering.
8. Little maintenance cost, you don't need to worry about how to replace the failed light for 7 years.
9. Safe, the light temperature is low.
10. Environment friendly, no UV and infrared, no hazardous substance.
11. Vibration-resistant, easy for transportation.
12. It is used for replacing fluorescent lamp.
13. Wide applications: It is very suitable for lighting in stations, clubs, stores, hotels, restaurants, gyms, airports, offices, factories, etc.
14. Warrantry: 3 years
|

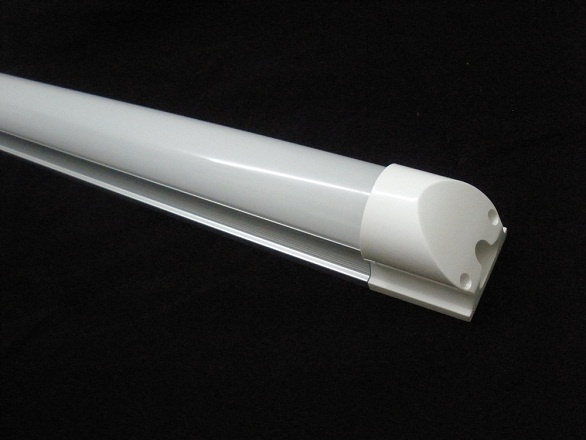

Item No. |
RG2412-300 |
RG2412-500 |
RG2412-1000 |
RG2412-1200 |
|
Dimension(mm) |
L 300*H32*D16.9 |
L 500*H32*D 26 |
L 1000*H32*D 16.9 |
L 1200*H32*D 16.9 |
|
Main maretial |
Aluminum Tube, PMMA cover |
Aluminum Tube, PMMA cover |
Aluminum Tube, PMMA cover |
Aluminum Tube, PMMA cover |
|
Power consumption(W) |
4.0 W±10% |
6.5 W±10% |
13 W ±10% |
15 W ±10% |
|
Input voltage(V) |
DC12V/DC24V |
DC12V/DC24V |
DC12V/DC24V |
DC12V/DC24V |
|
LED quantity(Pc) |
18 |
30 |
60 |
72 |
|
LED type |
SMD5050 (0.3W) |
SMD5050 (0.3W) |
SMD5050 (0.3W) |
SMD5050 (0.3W) |
|
Luminous flux(Lm) |
280 ±10% LM |
480 ±10% LM |
950 ±10% LM |
1200 ±10% LM |
|
Emitting Color |
White(6000-6500K) , Commercial white(4500-5000K) , Warm White(2800-3200K, red, green, blue |
White(6000-6500K) , Commercial white(4500-5000K) , Warm White(2800-3200K, red, green, blue |
White(6000-6500K) , Commercial white(4500-5000K) , Warm White(2800-3200K, red, green, blue |
White(6000-6500K) , Commercial white(4500-5000K) , Warm White(2800-3200K, red, green, blue |
|
Beam Agnle |
120° |
120° |
120° |
120° |
|
Weight(kg) |
0.180±0.01 |
0.28±0.01 |
0.575±0.01 |
0.720±0.01 |
|
Life expectancy(h) |
50,000 |
50,000 |
50,000 |
50,000 |
Hison Optoelectronic Co., Ltd is the LED lighting manufacturer located in Shiyan Town, Shenzhen city of China.
Our side is formed by a set of elite including big name chief executives, technical design and application development engineers, and mainly dedicated in the LED, high-end lighting product development, production, Sales and LED lighting decoration engineering consulting services as business scope. Even though we are a fairly young and up coming company we still maintain traditional values when it comes to our customer relations and services, and through our experience and good relations with our customers we have achieved tremendous growth since our establishment. We constantly make every effort to set ourselves apart from our competition.
We pay much attention to establishing scientific management system, strengthening the construction of team spirit, and keeping innovating in new technology. More than 80 percent of our products are exported to overseas markets. They are up to standards with punctual shipment and are warmly welcomed by our customers. There are our markets in more than 50 countries including USA, Canada, Britain, Spain, Germany, Italy, Australia, Japan and southern East Asia countries.
Our lighting concept is to provide an inexpensive, modern and energy sufficient alternative to our customers while still maintaining standard of quality. Now with our innovative designs, Reliability, quality and customer service Orange opto products are recognized and accepted by our Customers for commercial and residential projects.
The current development of lighting products divided into A) Commercial Lighting; B) Landscape Lighting; C) Indoor Lighting; D) Road Lighting. All of them has started be used in factories, warehouses, commercial, hotel and other places lighting applications. And we will continue to develop new and better products to meet varies demands from our clients all over the world.
Meanwhile, the OEM and ODM cooperation are also warmly welcomed by our company. We would like to take every opportunity to set up the business relationship with you based on mutual benefits.
