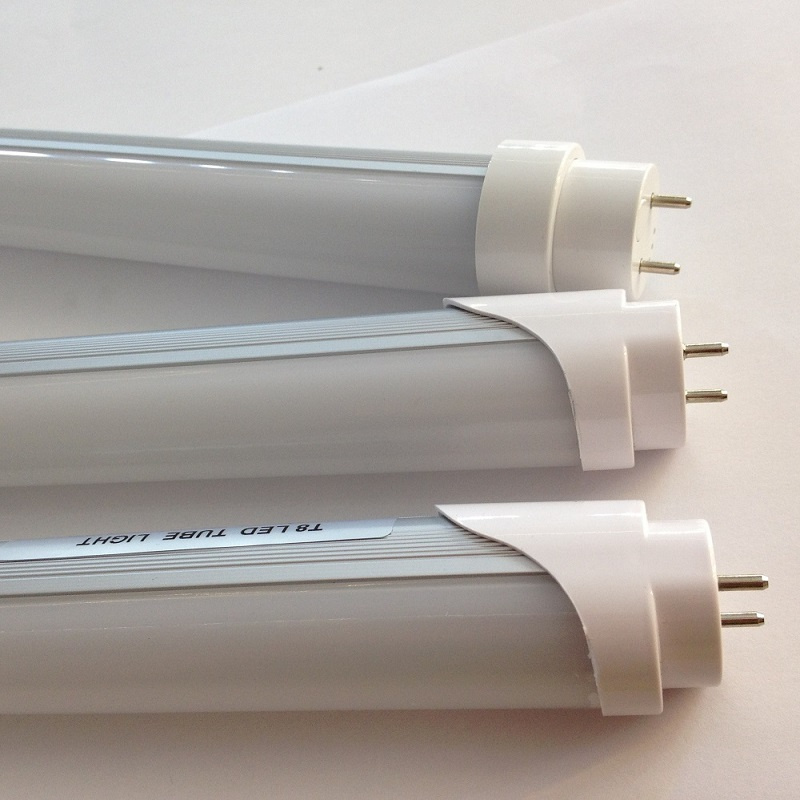

Our LED Tube Lights emit the same amount of light as conventional T-series fluorescents, but last up to 10 times longer with low loss of illumination.
LED Tube Light are the ideal energy efficient replacement for fluorescent tubes. Installation can be quickly performed by a qualified electrician.
These provide a great source of general illumination, suitable for use in offices, factories, supermarkets, buses, trains, task lighting, store displays, warehouse illumination and under cabinets.
Installation
1/ If Inductant ballast, please remove the starter before installation.
2/ If electronic ballast, please remove the starter and the whole electronics ballast before installation.
|
Item No. |
RG2402-T8-1500 |
RG2402-T8-1200 |
RG2402-T8-900 |
RG2402-T8-600 |
|
Dimension(mm) |
1500 |
1200 |
900 |
600 |
|
Main material |
Aluminum |
Aiuminum |
Aluminum |
Aluminum |
|
Power consumption(W) |
20±10% |
16 ±10% |
12±10% |
8±10% |
|
Input current(mA) |
100 ±5 % |
83 ±5 % |
65±5% |
49±5% |
|
Input voltage(V) |
AC86V~240V |
AC86V~240V |
AC86V~240V |
AC86V~240V |
|
LED quantity(Pcs) |
360 |
288 |
216 |
144 |
|
LED type |
SMD(3528) |
SMD(3528) |
SMD(3528) |
SMD(3528) |
|
Emitting Color |
warm white commercial white cool white |
warm white commercial white cool white |
warm white commercial white cool white |
warm white commercial white cool white |
|
Luminous flux(Lm) |
2300±10% |
1800±10% |
1400±10% |
900±10% |
|
Color temperature(K) |
3000-4000K 4000-5000K 5000-6000K |
3000-4000K 4000-5000K 5000-6000K |
3000-4000K 4000-5000K 5000-6000K |
3000-4000K 4000-5000K 5000-6000K |
|
Wottage of the unit LED(W) |
0.07 |
0.07 |
0.07 |
0.07 |
|
Effection of the product |
0.85 |
0.85 |
0.85 |
0.85 |
|
Power factor(PF) |
0.97 |
0.97 |
0.97 |
0.97 |
|
Rendering index |
83±5 |
83±5 |
83±5 |
83±5 |
|
Socket type |
G13 |
G13 |
G13 |
G13 |
|
Net Weight(kg) |
0.394±10% |
0.324±10% |
0.256±10% |
0.160±10% |
|
Package Size (mm) |
1560*215*290MM |
960*215*290MM |
1270*215*290MM |
660*215*290MM |
|
Life expectancy(h) |
40000-50000 |
40000-50000 |
40000-50000 |
40000-50000 |
|
Warranty |
2 years |
2 years |
2 years |
2 years |
