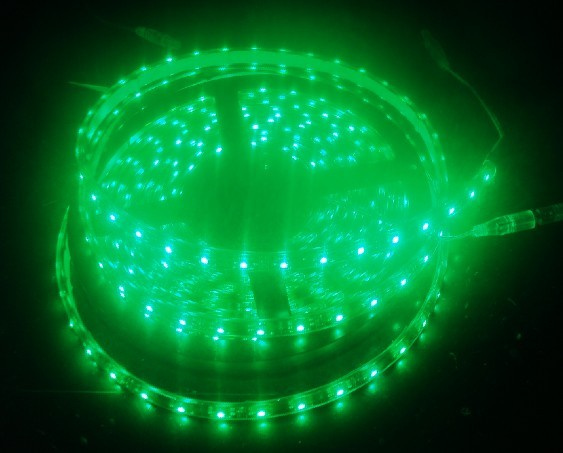

SMD3528 Flexible Strip Series
1, Product names and codes
2, Light Source Parameter (Ta=25º C)
3, Electrical Performance
1) Working Voltage: DC12V
2) Power Consumption: 12W
3) Drive Mode: Constant drive
4) IF: 200 mA
5) Max Peak Current: 1000mA
6) Electrostatic discharge: 2000V
7) Working Temperature: -25 ~ +60 º C
8) Storage Temperature: -40 ~ +80 º C
4, Connect Way
1) Wire Harness: 20AWG 100mmGray, White Electronic Wire
2) Standard Series Quantity: 5 M
3) Max Series Quantity for Simplex: ≤ 5M
5, Dimension
1) Housing Shell: Crystal Epoxy / U-shape pipe / Silicon Rubber Tube /3M double-sided adhesive
2) Size(mm): 5000X6\ 5000x8
3) Color of Waterproof Glue: Transparent
4) Color of PCB board: Milk white / Coppery Yellow
6, Mounting
1) Silica Gel: Can be chosen.
2) Gummed: 40mm PE Foam both side Glue.
Products names |
Non-waterproof |
Waterproof |
Red |
MQ-3528R30-NF |
MQ-3528R30-F |
MQ-3528R60-NF |
MQ-3528R60-F |
Yellow |
MQ-3528Y30-NF |
MQ-3528Y30-F |
MQ-3528Y60-NF |
MQ-3528T60-F |
Green |
MQ-3528G30-NF |
MQ-3528G30-F |
Blue |
MQ-3528B30-NF |
MQ-3528B30-F |
White |
MQ- 3528W30-NF |
MQ- 3528W30-F |
MQ- 3528W60-NF |
MQ- 3528W60-F |
MQ- 3528W96-NF |
MQ- 3528W96-F |
MQ- 3528W120-NF |
MQ- 3528W120-F |
LED Type |
3528 SMD |
LED Qty(1Reel=5000 mm) |
300pcs/Reel ( 150pcs/Reel or 600pcs/Reel) |
Color |
Red |
Yellow |
Green |
Blue |
White |
Wavelength
Color Temperature
(nm/k) |
625-
630 |
620-
625 |
585-
588 |
588-
592 |
515-
525 |
460-
470 |
3000-
3500 |
6500-
7000 |
10000-
12000 |
12000-
16000 |
Luminous
Intensity |
560x
300 |
560x
300 |
580x
300 |
580x
300 |
1200x
300 |
450x
300 |
2200x
300 |
2200x
300 |
1800x
300 |
1800x
300 |
Luminous
Flux(lm) |
350 |
350 |
300 |
300 |
900 |
290 |
1600 |
1600 |
1600 |
1500 |
View angle |
≥ 140° |
Life span |
50000H |
