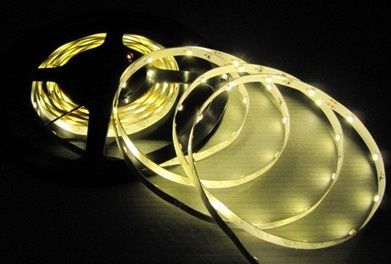

LED Strip Light (MQ-3528Y60)

Price:	US $ 1.5-4/Meter
Trade Terms:	FOB
Min Order:	500/Meter
Pay Type:	T/T

Contact Supplier

Guangzhou Minquan Optoelectronics Co., Ltd.

Showroom Product Company Profile

SMD3528 Flexible Strip Series
1, Product names and codes
2, Light Source Parameter (Ta=25º C)
3, Electrical Performance
1) Working Voltage: DC12V
2) Power Consumption: 24W
3) Drive Mode: Constant drive
4) IF: 400mA
5) Max Peak Current: 2000mA
6) Electrostatic discharge: 2000V
7) Working Temperature: -25 ~ +60 º C
8) Storage Temperature: -40 ~ +80 º C

4, Connect Way
1) Wire Harness: 20AWG 100mmGray, White Electronic Wire
2) Standard Series Quantity: 5 M
3) Max Series Quantity for Simplex: ≤ 5M

5, Dimension
1) Housing Shell: Crystal Epoxy / U-shape pipe / Silicon Rubber Tube /3M double-sided adhesive
2) Size(mm): 5000X6\ 5000x8
3) Color of Waterproof Glue: Transparent
4) Color of PCB board: Milk white / Coppery Yellow

6, Mounting
1) Silica Gel: Can be chosen.
2) Gummed: 40mm PE Foam both side Glue.

Products names	Non-waterproof	Waterproof
Red	MQ-3528R30-NF	MQ-3528R30-F
Red	MQ-3528R60-NF	MQ-3528R60-F
Yellow	MQ-3528Y30-NF	MQ-3528Y30-F
Yellow	MQ-3528Y60-NF	MQ-3528T60-F
Green	MQ-3528G60-NF	MQ-3528G60-F
Blue	MQ-3528B60-NF	MQ-3528B60-F
White	MQ- 3528W30-NF	MQ- 3528W30-F
	MQ- 3528W60-NF	MQ- 3528W60-F
	MQ- 3528W96-NF	MQ- 3528W96-F
	MQ- 3528W120-NF	MQ- 3528W120-F

LED Type			3528 SMD
LED Qty(1Reel=5000 mm)			300pcs/Reel ( 150pcs/Reel or 600pcs/Reel)
Color	Red		Yellow		Green	Blue	White
Wavelength Color Temperature (nm/k)	625- 630	620- 625	585- 588	588- 592	515- 525	460- 470	3000- 3500	6500- 7000	10000- 12000	12000- 16000
Luminous Intensity	560x 300	560x 300	580x 300	580x 300	1200x 300	450x 300	2200x 300	2200x 300	1800x 300	1800x 300
Luminous Flux(lm)	350	350	300	300	900	290	1600	1600	1600	1500
View angle	≥ 140°
Life span	50000H

Prod Model:	MQ-3528Y60
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Life:	50, 000h
Power Source:	DC
Electric Current Type:	DC
Input Voltage:	12V
Usage:	Decoration

Established in 2006, Guangzhou Minquan Optoelectronics Co. Ltd is a professional manufacturer of LED lighting products. We specialize in developing and manufacturing LED products including LED Bulb, LED Tube, LED Spotlight, LED Downlight, LED Flood Light, LED channel letter module, LED strip light, etc.

With a strong R&D team, top LED light source, advanced inspection equipment and strict quality control procedure, we can well satisfy out clients with high volume and speedy production, high quality, competitive price, delivery on time, good service and technical support, all there are the keys for MQ LED to survive and develop in the fierce competition. Our products are CE and RoHS approval, and with a production capacity of over 100000PCS lighting products each month.

Our aim: Customers need is what we want to do.

Our goal: No best, only to make better.

We always provide you with products of superior performance, OEM/ODM is acceptable, please feel free to contact us for further information.
