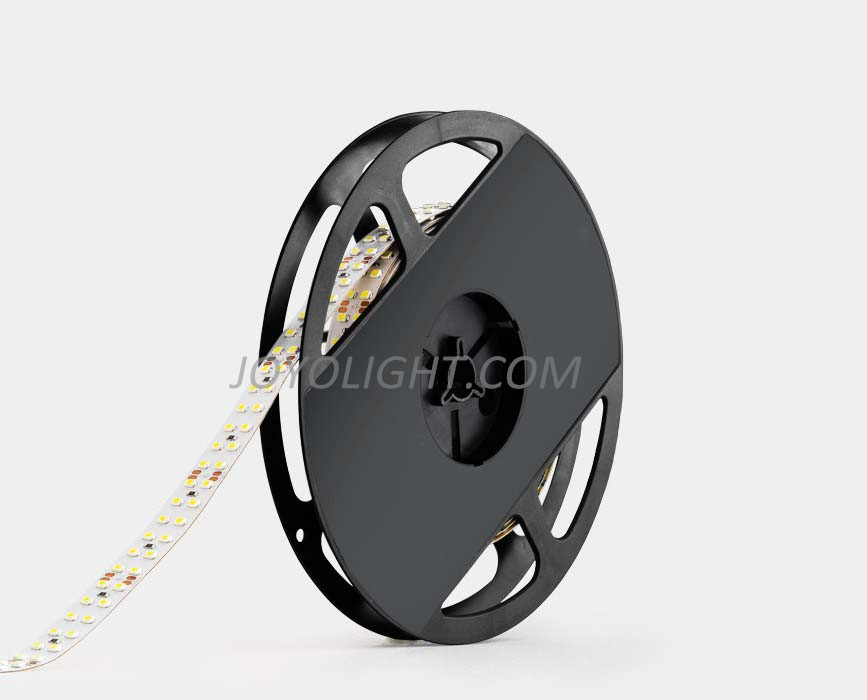

SMD LED strip 3528 Series
D360 SMD3528, 60LED/m
D3120 SMD3528, 120LED/m
D3240 SMD3528, 240LED/m
Color Temperature: 2200K 2700K 3000K 4000K 6000K
Attn: We encapsulating LED strips all by ourselves, so Bins always provided, and ensure consistent CT in every order.
Light Output: 6-7LM/LED
IP Rating:
IP33 / 55 / 65 / 67 provided.
Irregular items, please enquiry us OR visit our web at joyolight. com
Specification |
LED/m |
240 |
Lumen |
1120LM/m |
Power Consumption |
19.2W/m |
Voltage |
24V |
CRI (Ra) |
>80 |
Dimensions |
5000*15*2mm |
Minimal Cut |
50mm [12LED] |
Huacai (Yangzhou) Opto-electronics Co., Ltd, with rich experience of over four years in lighting R&D and occupying a modernized plant area of almost five thousand square meters, is a professional manufacturer based on LED lighting source and specializing in LED lighting application. Our company incorporates four brand in Beijing, Shanghai, Guangzhou and Jiangsu around Mainland China. Located quite near from Bao'an Airport, our company enjoys the superior geographical and convenient transportation. There is six modern atomized production line LED SMD encapsulation line, six high-speed SMD encapsulate machine, two eight bins Reflow Machine, fully atomized Epoxy machine, Generator, over eighty large equipments, seventy percent of which are imported form Japan. The chips we used are mainly imported form Taiwan, International brands like CREE, OSRAM, NICHIA, EDISON are also available for high-end users. Following the operation philosophy that customer's need, Colors's pursuit'', advanced testing measurement and impeccable managing system are taken into application, so we can make sure of the quality of our products, all of which are exported globally. Currently our annual production value can be reached 30 million USD, The main products are: SMD LED Flexible Strip Light, SMD LED Rigid Light Bar, LED T5&T8 Tubes, and they have been awarded the CE & RoHS certification.
