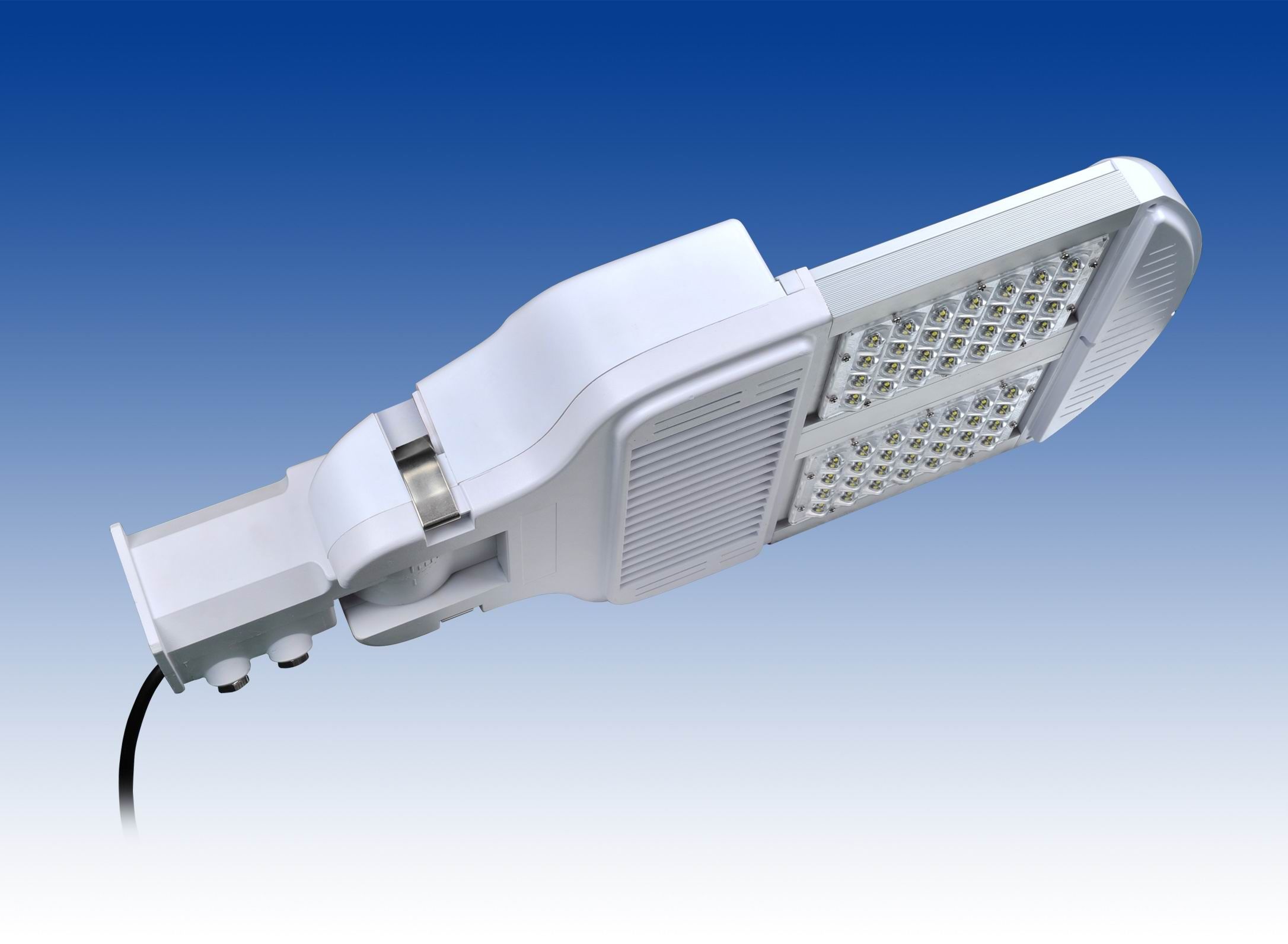

LED Street Lights
CE&RoHS approved
2 years warranty and unlimited techincal support
Specifications-56W LED Street Lights
Item: CH-L7W056
(Details as the chart listed)
Features-LED Street Lights
Unique design of thermal-diaaipation, patent
With unique optical lens, more efficient light-emitting
Intelligent temperature controller for power, longer life.
Meet CE, ROSH requirements
Applications -LED Street Lights
This LED Street Lights can be applied to the highway, expressway, mainroad, sub-roads, the sliproads and residential areas with sidewalks and the plaza-lighting, stadium lighting and so on
Trade Terms:
1. Term of Payment: T/T 30% deposit in advance and the balance before shipment
2. Delivery: 7-10 days for samples, 15-20 days for order production. After confirm receive your deposit
LED Street Lights
Model NO. |
CH-L7W056 |
|
Input voltage |
AC 85~265V |
|
Frequency |
47~63Hz |
|
Power Factor(PF) |
> 0.9 |
|
Total harmonic Distortion(THD) |
< 20% |
|
Power efficiency |
85% |
|
Working voltage |
DC 46V |
|
LED power dissipation |
56W |
|
Electric dissipation |
10W |
|
LED luminescence efficiency |
≥ 85Lm/W |
|
luminous lux |
5300Lm(Tj=25) |
|
Lights efficiency |
≥ 90% |
|
Illuminance On the ground(E) |
H=6m |
≥ 27Lux |
|
H=8m |
≥ 16Lux |
|
H=10m |
≥ 10Lux |
|
H=12m |
≥ 7Lux |
|
Effective Irradiation area |
H =6m |
20*8m |
|
H =8m |
26*10m |
|
H=10m |
33*13m |
|
H=12m |
40*16m |
|
CCT |
Pure white: 5000-6500K;
Warm white: 3500-4500K |
|
Color radiation index(CRI) |
Ra> 75 |
|
The strongest lighting angle |
Horizontal axis: 120° ~140° ;
Vertical: 45° ~60° |
|
LED Temperature |
70º C± 10%(Ta=25) |
|
Working temperature |
-30~50º C |
|
Working humidity |
10%~90%RH |
|
Stock temperature |
10~85 |
|
Match ray curve/Facula |
Unsymmetry(bat wing shape)/rectangle facula |
|
Life span |
> 50.000Hrs |
