Features of LED Street Light:
Unique optical design, high light transmission.
Second-generation thermal-dissipation design, with more air convection cooling holes,
Improves heat dissipation effect, fashionable and exquisite appearance.
Can be tranformation of traditional street lights, or replacement of the traditional lights
Directly, no need to chang the lamp shell, it is cost-effective.
In line with CE, UL Safety Certificate, and RoHS.

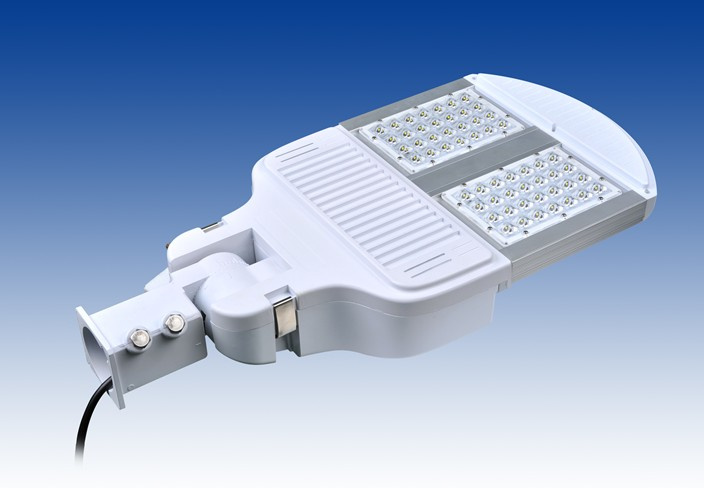

LED Street Light
Product No.: CH-L7W056
(Details as the chart listed)
LED Street Light- Application
Used in the highway, fast roads, main roads, sub-roads, slip roads, residential avenues, sidewalks, squares, and playground lighting.
|
LED Street Light Model No. |
CH-L7W056 |
|
Input voltage |
AC85-265V |
|
Frequency |
47-63HZ |
|
Power Factor(PF) |
> 0.9 |
|
Total harmonic Distortion(THD) |
< 20% |
|
Power efficiency |
85% |
|
Working voltage |
DC 46V |
|
LED power dissipation |
56W |
|
Electric dissipation |
10W |
|
LED luminescence efficiency |
> 85Lm/W |
|
LED original luminous lux |
5300Lm(Tj=25° C) |
|
LED working luminous lux |
4700Lm(Tj=70° C Ta=25° C) |
|
Light luminous lux |
4230Lm(Tj=70° C Ta=25° C) |
|
Lights efficiency(%) |
≥ 90% |
|
IlluminanceOn the ground(E) |
Height=6m |
≥ 27Lux |
|
Height =8m |
≥ 16Lux |
|
Height=10m |
≥ 10Lux |
|
Height=12m |
≥ 7Lux |
|
Effective Irradiation area |
Height =6m |
20*8m |
|
Height =8m |
26*10m |
|
Height=10m |
33*13m |
|
Height=12m |
40*16m |
|
Corrlative color temperature(CCT) |
Pure white: 5000-6500K; Warm white: 3500-4500K |
|
Color radiation index(CRI) |
Ra> 75 |
|
Match ray curve/Facula |
unsymmetry(bat wing shape)/rectangle facula |
|
The strongest lighting angle |
Horizontal axis: 120° ~140 vertical: 45° ~60° |
|
LED temperature |
70° C± 10%(Ta=25° C) |
|
Working temperature |
-30° C-50° C |
|
Working humidity |
10%-90%RH |
|
Stock temperature |
10° C-85° C |
|
Life span |
> 50.000Hrs |
|
Lamp chimney |
Aluminum alloy and PMMA |
|
N. W. |
7.85kg |
|
IP Degree |
IP56 |
Shenzhen Cohon Lighting Co., Ltd. is a high-tech manufactory which is mainly engaged in technical research, production and service of LED semiconductor illumination. with an area of 5000 square meters, our company is equipped with numerous of advanced experimentation equipment and full automatic production pipeline of LED devices.
We have a very excellent design and R& D group who are professional in the field of LED application, external appearance, structure, illumination and drive electric source. Our company has employed doctors of Chinese Academy of Science as technology consultant. We have acquired many patents already, and now, more than ten products are under application for patents by our R& D hard working.
Our products include LED street light, LED headlights, LED miner's lamps, high power LED spotlights, LED emergency lights, LED floodlights, LED underwater lights and series of high-power LED commercial semiconductor lights. Besides, we also have developed capability of supply some special standard LED lighting products. And our products have passed the CE, UL and RoHS.
Our products have been exported to all over the world and they are welcomed by our customers, especially the series of 1W power LED miner's headlight has occupied more than 50% market in China. We will try our best to contribute all strength for the global green lighting and put more and better green semiconductor lighting products to the market.
