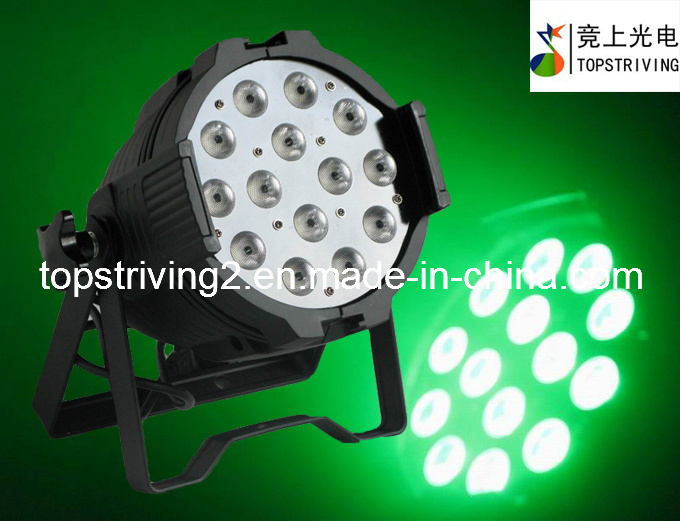

LED Stage PAR Light with 14*12W LEDs

LED Stage Par Light with 14*12W LEDs

Model: LED MENELAUS RGBWAU; LED Par Light with black die cast aluminium housing with 14 high MCD RGBWAU 6 in 1 12W LEDs.

Technical Specification:

(1) DU hanging brackets for easy floor standing;

(2) Multi-voltage operation: AC 90-240V 50/60Hz;

(3) full Master/Slave operation in any operational mode;

(4) Electronic Dimming, color strobe effect and long life operation;

(5) black die cast aluminium housing with 14 high MCD RGBWAU 6 in 1 12W LEDs;

(6) Smooth RGBWAU color mixing;

(7) low heat, Long Life LEDs (100, 000 hrs. );

(8) operational Modes: DMX 512 protocol, Sound Active, Auto, master/slave;

(9) Beam Angle: 25° Degrees;

(10) Color strobe effect;

(11) Uses 11 DMX Channels;

(12) Stand Alone, Master/Slave;

(13) Linkable via 3-pin XLR cable;

(14) Electronic Dimming: 0-100%;

(15) ITEM DIMENSION: 270*270*240MM;

(16) ITEM WEIGHT: 4.0KGS.




Auto:

Press the MENU button, the following functions can be achieved by the button ENTER:
AUTO: Run the preset shows;


CF00: Increasing brightness, then decreasing brightness, the speed of increasing brightness, then decreasing brightness can be adjusted by the buttons of UP and DOWN from 00 slowest to 99 fastest.

CCO8: Color changes, the speed of color changes can be adjusted by the buttons of UP and DOWN from 00 slowest to 99 fastest.

CS99: Color selections, the color selections can be done by the buttons of UP and DOWN from 00 to 99.

R000: Press the button FUN five seconds, till R000 shows in the led display, the red color brightness can be adjusted by the buttons UP or DOWN;

G000: Press the button FUN five seconds, till G000 shows in the led display, the green color brightness can be adjusted by the buttons UP or DOWN;

B000: Press the button FUN five seconds, till B000 shows in the led display, the blue color brightness can be adjusted by the buttons UP or DOWN;

Y000: Press the button FUN five seconds, till Y000 shows in the led display, the white color brightness can be adjusted by the buttons UP or DOWN;

U000: Press the button FUN five seconds, till U000 shows in the led display, the UV color brightness can be adjusted by the buttons UP or DOWN;

A000: Press the button FUN five seconds, till A000 shows in the led display, the amber color brightness can be adjusted by the buttons UP or DOWN;
