LED Stage Moving Beam Light for Washing Effect with 5r Philips Lamp(BEAM 200)
TECHNICAL SPECIFICATIONS:Power supply: 220 V AC, 50 Hz ,
Power consumption: 400W,
DMX-512-connection: 3-PIN,
Lamp: PHILIPS UHP PLATINUM 5R ,
DMX channels: 16 ,
Pan/Tilt: 540°/270°,
Resolution: Pan = 2.11°, Pan Fine = 0.008°, Tilt = 0.98°, Tilt Fine =0.004°,
Maximum ambient temperature ta : 45° C,
Dimension: 330*310*450mm,
Weight (net): 18.0 kgs.
LCD display Control Board
DMX 512 CONTROL/ADDR 000-255: set DMX address
AUTO RUN MODE: PROGRAM 1/2, SPEED 000 fastest to slowest 255
sound run mode: show 01/02,sound active
edit mode: edit ch01-22,value 000/255, editing the desired programs
save to scene 01-16: saving the edited programs
select pan: pan+: pan normal running, pan-: pan running reversely
select tilt: tilt+ :tilt normal running, tilt-: tilt running reversely
language/: /ENGLISH
SYSTEM KEY: KEY 01/04, 000-255, setting code when testing the item, no use for the customers
ADJUSTING RESTART: ADJUST 01/08, VALUE 000-255, setting color/gobo wheels when testing the item, no use for the customers
start value:Addr 001,setting address
system reset: reset by yes

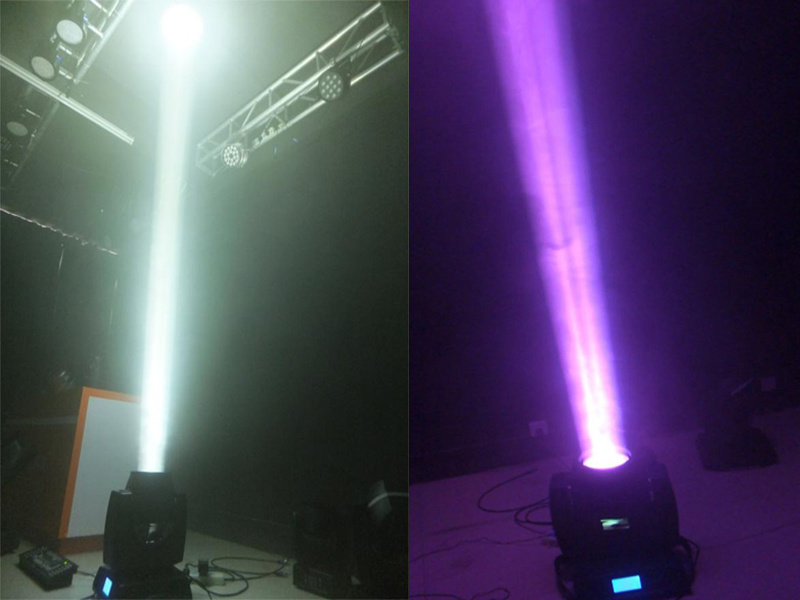

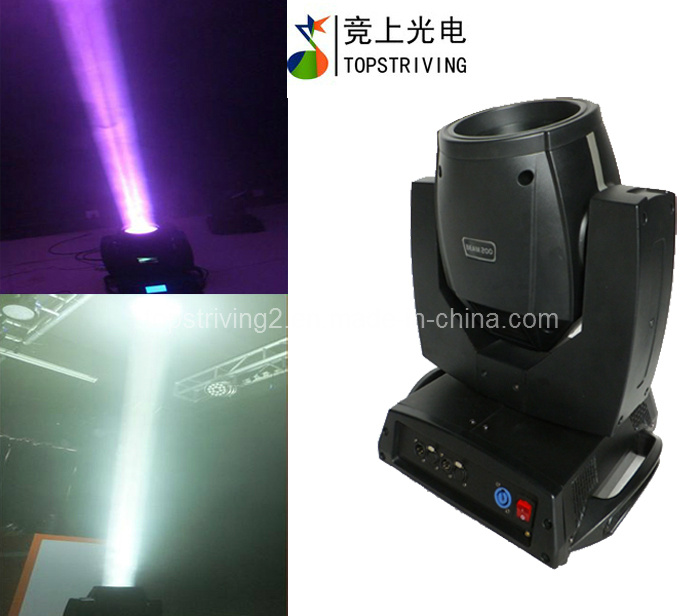

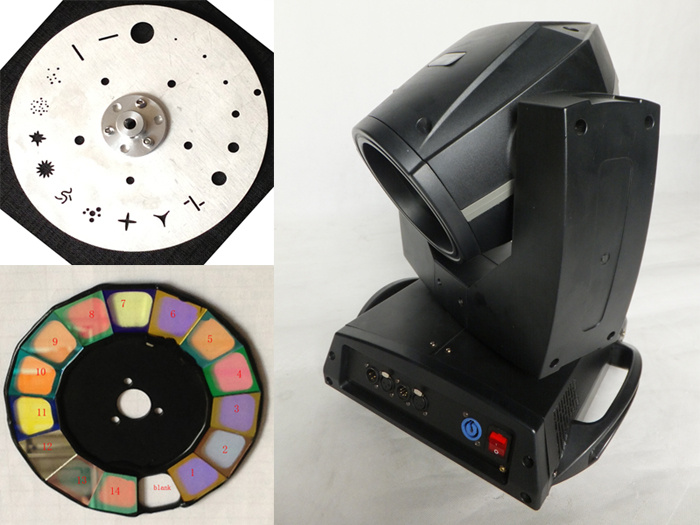

Picture:
|
Channel 1 |
Horizontal movement (Pan) |
|
Channel 2 |
Vertical movement (Tilt) |
|
Channel 3 |
Pan fine 16 bit |
|
Channel 4 |
Tilt fine 16 bit |
|
Channel 5 |
Speed of PAN / TILT movement |
|
Channel 6 |
strobe |
|
Channel 7 |
dimmer from darkness to full brightness |
|
Channel 8 |
dichroic colors+open |
|
Channel 9 |
17 gobos+open |
|
Channel 10 |
prism |
|
Channel 11 |
prism rotations |
|
Channel 12 |
focus |
|
Channel 13 |
pan/tilt movements blackout when pan/tilt moving |
|
Channel 14 |
frost |
|
Channel 15 |
pan/tilt movements working together with channel 1/channel 2 |
|
Channel 16 |
lamp on/off,reset |
