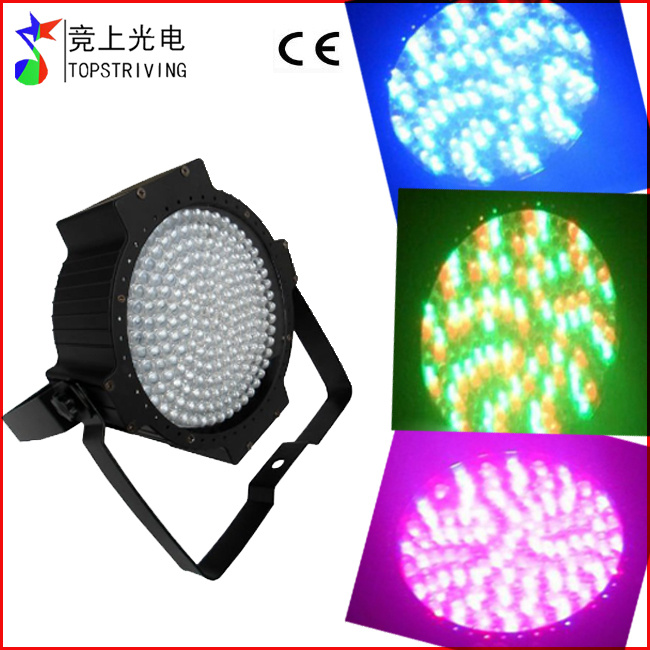

Led Stage Lighting/Led Par Light (MEGA PAR RGBW)
Technical Specifications:
1). Light Source: 10 mm high MCD LEDS, 51R/51G/51B/51W of each
2). Voltage: AC 90-240V 50/60HZ
3). Power Consumption: 40w max
4). Fuse: 250V 1.0A
5). DMX Channel: 9ch
6). Beam Angle: 15/25/30/45 degrees
7). Electronic Dimming: 0-100%
8). Housing: Black Die Cast Alu. Housing
9). Emitting Color: RGBW
10). Color Temperature(CCT): Cool White
11). Working Temperature: 0 - 45 degree
12). Working Lifetime(Hour): 100, 000(h)
13). Operational Modes: DMX, Master/Slave, Stand Alone & Sound Active
14). Dimensions: 270*230*100mm
15). Net Weight: 2.5kg
16). DMX-512-connection: 3-pin XLR
|
9 channels |
|
|
Channel 1 |
Red from small to big brightness(dimming) |
|
Channel 2 |
Green from small to big brightness(dimming) |
|
Channel 3 |
Blue from small to big brightness(dimming) |
|
Channel 4 |
White from small to big brightness(dimming) |
|
Channel 5 |
Master dimmer from small to full brightness |
|
Channel 6 |
Strobe from slow to fast |
|
Channel 7 |
Dimmer, color macro |
|
Channel 8 |
Dimmer, increasing brightness, then decreasing brightness, colors following one by one |
|
Channel 9 |
Running speed adjustments |
|
DELIEVER TERMS |
|
|
Packing |
Flight case/ carton package optional |
|
Trade |
FOB/ EXW |
|
Port |
GuangZhou China |
|
Certification |
CE ROHS |
|
Payment Terms |
T/T, Westerm Union, Paypal |
|
Shipping method |
DHL, UPS, FedEx, TNT door to door service, by sea, by air, etc |
|
Delivery time |
40 HQ container within 4 weeks |
|
Brand Name |
Topstriving |
|
Origin |
GuangZhou China |
|
Producting Time |
15-20 days |
|
OEM OR ODM Service |
Accept |
|
MOQ: |
30 PCS |
|
Warranty Time |
Fully 3 year |
