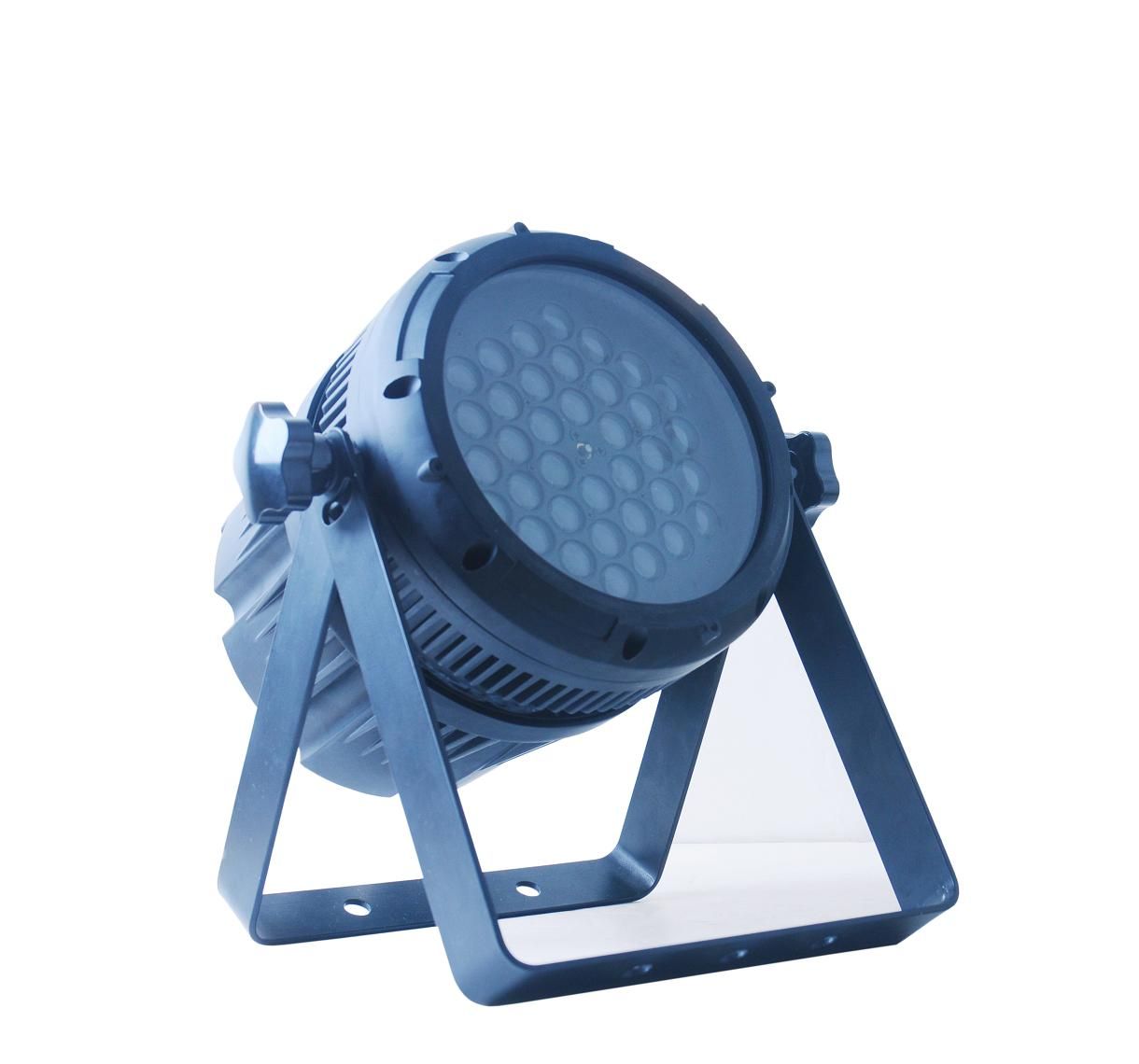

LED Stage Light / 36*3W LED PAR Light(Aladdin 320)
1. Aladdin: 36*3W LED Stage Par Light.
2. LED stage light with step moto DMX control linear Zooming, suitable for beam trial on spot.
3. Good LED par light: All white Corelated Color Temperature, 1800-8000K, suitable for beam trial on spot.
4. SMT and low temperature reflow soldering tech, make sure heat conduct and heat sink.
Specifications:
Input voltage: AC 90-240V 47-63Hz, PF>0.9
Output voltage: DC24V, SMPS longevity 15000Hours
Rated Power: 120 w(@220V 50Hz)
Luminaire Efficiency: >0.9, Light Effiacy >37lm/W.
LED Lumens: 36pcs*3W ACSW1800-8000K, 700mA Driving, Full on 3300K 4470Lumens.
LED CCT: Amber590nm(10), White=Cool8000K(10)+Standard6000K(6)+Warm3000K(10).
Field Angle(10%): Min8 ° , Max52° , medium adjustable.
Control signal: DMX512, 32 bit Dim 4 square law dimming, smooth in low DMX Value dimming, no vision shock
Control mode: DMX1990/DMX512A/stand alone/master and slave
Chanel option: Standard 9, 3/4/5/8/CH all inside menu.
PWM frequency: PWM>400Hz(16666), video flicker free
Housing material: Die cast aluminum ADC12, standard Matte balck, customized glossy White painting, barndoor available.
Cables: Power=3C 2.5mm2 VDE cable in and out, Signal=3C 0.75mm2, shiled cable in and out.
Safty: Class II, Flame Rating V-1, Protect Rated IP65.
|
Features: |
|
1.4470Lumens Output, even color mixing, SDC<0.005, hight effieciency light output 90% Lumens within 10% Intensity at 52°. |
|
2.DMX512 signal control,4 buttons address setting with LED screen. |
|
3.Dim 4 Square law smooth dimming for 0-100%, video flicker free, with strobe/gradual change/color jump inbuilt programs. |
|
4.Independent circuit driving, each 620mA,even ampere distribute. |
|
5.NTC temperature control system inside, MCU reduce the power output when LED working temperature is too high. |
|
6.Field Angle standard 30°,could choose other angle, and also frosted piece and 60*1° third optical piece. |
|
7.Field Angle standard 30°,could choose other angle, and also frosted piece and 60*1° third optical piece. |
|
8.With waterproof air valve to balance pressure,get rid of mosuisture on glass innerface. |
Guangzhou longman PRO light factory co. Ltd. (hereinafter the "company") is a professional manufacturing enterprise, we're collection of R&D, producing, and marketing. Since the company was founded in 2005 in guangzhou, China, we're focused on the independent research development and production of LED lighting product and equipment.
Three brands under the company: Longman brand oriented stage lighting; Ledmewish oriented landscape architectural lighting; And reichy oriented truss and the other equipment for stage lighting.
The main product range of lighting in this company was included: LED stage and entertainment lighting; LED architectural and landscape lighting; Stage truss, and some customer preconcert development for the commercial lighting product.
All the kinds of products with superior quality, novel style, precision technology and cost performance are widely accepted by the industry. At present, the company products have been exported to Europe, America, Australia, Middle East, and Africa and so on, which was more than 120 countries and regions.
Longman lighting dedicated itself to stage light industry with years of experience. We introduced advanced technic and talents in this industry and created featured design and manufacturing concept as well as set up scientific and effective management system and strict quality control system based on our strong technical accumulation and complete management system and good after-sales service. We have obtained multinomial international product certification including CE, RoHS, SGS, PSE, UL, CCC, TUV, Energy Star and so on.
Our company was on behalf of the advanced level in this industry on appearance, optical, electrical, thermal, and command etc., it accumulate the intellectual property, individua areas was made a major breakthrough, now we are further to "professionalization, internationalization, standardization, and branding".
Longman has had authorised distributors in Germany, Britain, Canada, America, France, Brazil, Mexico, Australia, Singapore, South Africa and other countries since established. Our company is based in guangzhou, and has regional offices in Shanghai, xi'an, chengdu in domestic.
We should strive unceasingly with one heart and one mind together based on mutual benefit to make the construction of China more splendent!
