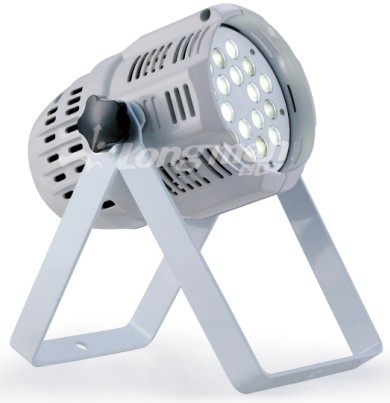

F200UDMX(DMX Dimming)/F200USW(Sinewave Dimming)
Advantage:
4430Lumens Output, could replace 250 watt traditional Halogen. No need to change original primary dimmer rack, no need to add extra DMX system, suits for applications as stage, studio room, save wire and labour cost.
F200UDMX is DMX dimming, for new project, F200USW is sinewave dimming, suitable for 1 to 1 changing Halogen 250, no need adding DMX signal, compatible to be dimming with
Halogen
Structure: New die cast model, similar size as traditional Par56, more stronger, good for rental application;
Patent new lamp body is designed to support heat sink, with better ventilation, no fans cooling, no noise! Suitable for strict control noise studio room.
Finished: Matte Balck, Could customize Matte white housing, Barndooravailable, color filter should be install under Steel Lens Cover.
Optic Design: Standard 3200K white light output, standard white, nature white, warm white, blue, etc, different colors to customize;
Field angle (10% intensity) 30 degree standard, 45 degree, 60-1 degree Optional.
Wattage: 75 Watt max consumed, power factor 90%;
More than 15000 Hours Longevity for SMPS and Main board.
Specification:
Voltage input: DMX version AC 90-240V 47-63Hz Sinewave Version
40-240V 47-63Hz
Max power consumption: 75W
PF: 0.9
Light source: 18pcs*5W Cree XPG White color, 28000K-8000K
Optional, standard 3200K, each BIN 150K, neutral White 4500K,
Each BIN 200K, 4430Lumens output;
Dimming: F200UDMX for DMX Dimming, 9 Channel, with
Dim0-Dim4 5 dimming curve
Dimming: F200USW for Sinewave Dimming, 40-240V,
7%-105% intensity, Smooth dimming curve
More than 15000 Hours Longevity for SMPS
LED Life Span: 50 000 -100 000 hours
Beam Angle: 15° , 25° , 45° , 60° , 60*1° Optional
PWM Frequency: >7.8KHz, flicker free
Cooling method: Natural cooling
Net Weight: 3.5Kg
Size: 27*23*29CM
IP Rate: IP 20
Cerficated: UL CE, Rohs
