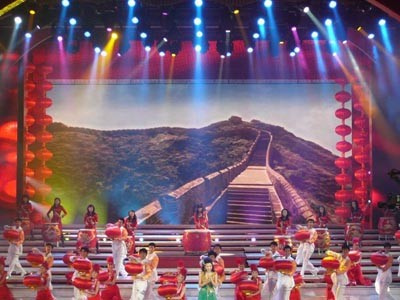

P10 Indoor Full color LED Stage Background Display Screen
Technical Specifications
LED Lamp Parameters
No. Item Specifications
1 LED lamps SMD 0805
2 Wavelength Red LEDs 628-630nm
Green LEDs 520-525nm
Blue LEDs 465-470nm
LED Module Specifications
1 Pixel Pitch 10mm
2 Pixel Configuration 1R1G1B
3 Module Resolution 32dots X 16dots
4 Module Size 320mm x 160mm
LED Cabinet Specifications (Standard Cabinet)
1 Cabinet Size(WxH) 960mm x 800mm
2 Cabinet Resolution 96 x 80 pixel dots
3 Module Quanity 15 PCS
4 Cabinet Frame Material black powder coated steel
5 Cabinet Weight 34.5Kg
Screen Parameters
1 Screen Resolution 10, 000 dots/m2
2 Screen Brightness 1000 nits
3 Brightness Adjustment manually
4 Driving Method constant current 1/8
5 View Angle Horizontal 120° Vertical 120°
6 Optimum Viewing Distance >8m
7 Refreshing Frequency ≥ 180Hz
8 Input Voltage AC220V/50Hz or AC110V/60Hz
9 Power Consumption Max.: 500 W/m2 Average: 200-300 W/m2
10 Defects Rate ≤ 0.00001
11 MTBF >5000 hours
12 Lifespan ≥ 100, 000 hours
13 Protection Grade IP43
14 Temperature-operating 20~+60
15 Humidity-operating 10%~95%
16 Operating System Windows98/me/2000/NT/XP
Packaging Details
1 packing material wooden box or flight case
2 screen weight 45Kg/m2
3 packing way one case holds one or two cabinets
Shenzhen Add Tech Co., Ltd. is a manufacturer of the LED electronic displays located in shenzhen China. With more than 5 years experiences on making and supplying the LED electronic displays, add tech has established many domestic & overseas customers. Add tech mainly engages in the design and production of LED full color video displays, solutions of outdoor advertising, visible solutions for events, sports, movable ad, etc.
Our factory is located in bao'an district of shenzhen, where there are integrated industry chains of the LED optoelectronics. With more than 5000 square meters area, add tech owns enough & quality manufacturing facilities. We also regard the experienced engineers and skilled workers as the footstone of innovation and quality control. Most of our engineers have more than 8 years experiences on the LED display products. Every employee has a chance of training before he or she is responsible for certain position.
