LED Perimeter Football Display

LED Perimeter Football Display
Price: Negotiable
Min Order: 1

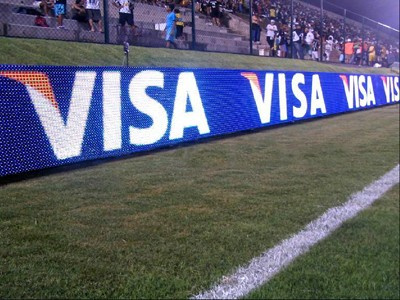

P25 Stadium Football / Soccer Perimeter Display

Technical Specifications

LED Lamp: Parameters
Item: Specifications
LED lamps: DIP546, Oval
Wavelength:
Red LEDs: 620-630nm
Green LEDs: 520-535nm
Blue LEDs: 465-475nm

LED Module: Specifications
Pixel Pitch: 25mm
Pixel Configuration: 2R1G1B
Module Resolution: 8dots x 8dots
Module Size: 200mm x 200mm

LED Cabinet: Specifications ( Standard Cabinet )
Cabinet Size(WXHXD): 1600mm x 800mm
Cabinet Resolution: 64dots x 32dots
Module Quanity: 32PCS
Cabinet Frame Material: Black powder coated steel
Cabinet Weight: 83.2KG

Screen Parameters
Screen Resolution: 1600 dots/square meter
Screen Brightness: 5000mcd/square meter
Brightness Adjustment: Manually or automatically
Driving Method: Constant current static
View Angle: Horizontal 110° Vertical 60°
Optimum Viewing Distance: 25m to 300m
Refreshing Frequency: ≥ 180Hz
Input Voltage: AC220V/50Hz or AC110V/60Hz
Power Consumption: Max.: 700W/square meter Average: 200-450W/square meter
Defects Rate: ≤ 0.00001
MTBF: >5000 hours
Lifespan: ≥ 100, 000 hours
Protection Grade: IP65
Temperature-operating: 40 ~+ 60
Humidity-operating: 10%~95%
Operating System: Windows98/me/2000/NT/XP

Packaging Details
Packing material: Wooden box or flight case
Screen weight: 65Kg/square meter
Packing way: One case holds one or two cabinets
Markets: North America,South America,Eastern Europe,Western Europe
Usage: Outdoor
Tube Chip Color: Full Color
Display Function: Video
Certification: CE
Shenzhen Add Tech Co., Ltd. is a manufacturer of the LED electronic displays located in shenzhen China. With more than 5 years experiences on making and supplying the LED electronic displays, add tech has established many domestic & overseas customers. Add tech mainly engages in the design and production of LED full color video displays, solutions of outdoor advertising, visible solutions for events, sports, movable ad, etc.

Our factory is located in bao'an district of shenzhen, where there are integrated industry chains of the LED optoelectronics. With more than 5000 square meters area, add tech owns enough & quality manufacturing facilities. We also regard the experienced engineers and skilled workers as the footstone of innovation and quality control. Most of our engineers have more than 8 years experiences on the LED display products. Every employee has a chance of training before he or she is responsible for certain position.
