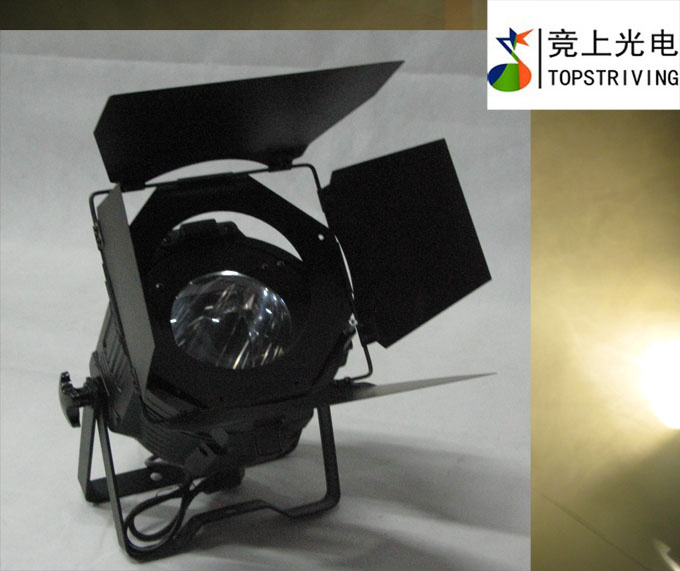

LED COB PAR Can with 90W cold white COB high MCD LED(COB MENELAUS CW SP)
TECHNICAL SPECIFICATION:
(1) Advantage: Using high MCD COB LED(chip on board) to achieve much more brightness and excellent ventilations and lowest energy consumption;
(2) NEW LENS: With surface light source function plus the molded polishing/mirror finish reflector, specially designed mirror polishing plano-convex lens, making light projections perfectly focused, the brightness more than two times as much as previously done, covering far distance;
(3) Place: Really ideal for lighting stages, BARS, DISCO HALLS, SMALL SHOWS, CABARETS, MUSIC SHOPS, MOBILE DJs, etc;
(4) Equipped with 90W cold white COB high MCD LED;
(5) 4 operational modes: DMX, Master/Slave, Stand Alone & Sound Active;
(6) 8 sub menus with serial numbers for easy operations;
(7) Fans running speeds adjustable by the programming for less noise;
(8) Beam angle 24 degrees, field angle 44 degrees;
(9) 1/2/3 DMX channel modes;
(10) Display: Blue LCD display;
(11) Du hanging bracket included, 3-pin XLR In/Out;
(12) Shutter: Pulse effect; Random strobe slow to fast;
(13) Power Consumption: 120W max;
(14) Dimensions (LxWxH): 32*30*22cm/hanging brackets placed vertically;
(15) Weight: 2.30kgs.
DMX FUNCTIONS: 1-CHANNEL MODE
Channel 1 white from darkness to full brightness
DMX FUNCTIONS: 2-CHANNEL MODE
Channel 1 white from darkness to full brightness
Channel 2 strobe
DMX FUNCTIONS: 3-CHANNEL MODE
Channel 1 white from darkness to full brightness
Channel 2 strobe
Channel 3 color fade from slow to fast
|
DISTANCE(M) |
COLOR |
BRIGHTNESS(LUX) |
BEAM ANGLE |
FIELD ANGLE |
DIAMETER OF THE COVERING AREA(ROUND:M) |
|
1 |
COLD WHITE |
12000 |
24 ° |
44 ° |
0.70 |
|
2 |
COLD WHITE |
4000 |
24 ° |
44 ° |
1.40 |
|
3 |
COLD WHITE |
2000 |
24 ° |
44 ° |
2.10 |
