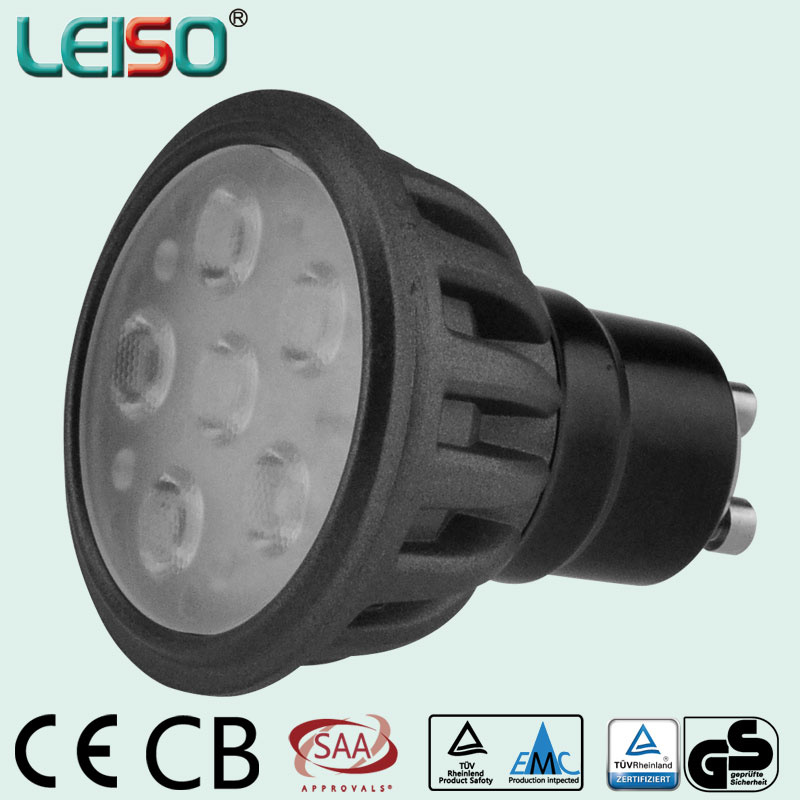

1. Specification detailsModel No.: LS-S505-GU10-A-NWW/NW
Input Voltage : 100~240 V AC
Power : 6W
LED Type : Original Janpan Nichia Chip
Luminous efficiency : 450Lm(2700K), 470Lm(3000K), 500Lm(4000K), 530Lm(5500K)
Color temperature : 2700K, 3000K, 4000K, 5500K for option or customization according to your requirements.
Color rendering index : Ra ≥ 80 or customization according to your requirements.
Beam angle : 24 ° / 36°
Dimmable : NOT
Lamp base : GU10

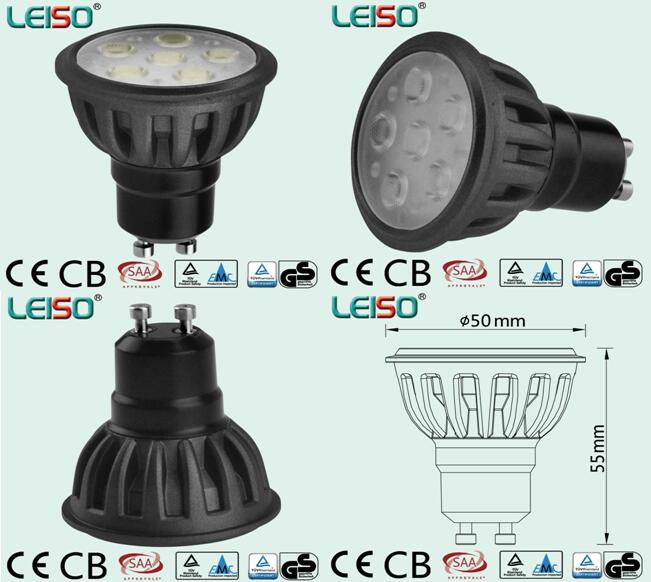

Products size : Φ50×55mm
Material : aluminum alloy
N.W : 8.2Kg
G.W : 8.6Kg
Color case : 52×52×62mm
Carton size : 540×270×160mm
Package QT'Y: 100 Pcs
Warranty : 3 years
2. The advantages and characters 2.1 Adopt LG chip or Nichia Chip with high luminous effeciency;
2.2 The die-casting aluminum housing have good thermal conductivity for heat dissipation;
2.3 Directly replace 50W halogen lamp, energy conservation at least 85% or more;
2.4 Long lifetime for 35,000 hours, if calculating as 4 hours everyday, its average lifespan can reach more than 23 years;
2.5 No infrared and ultroviolet radiation;
2.6 With CE, CB, TUV, GS, EMC, SAA, ERP and RoHS certificate. 3. Technica Parameters of S505 series MR16 & GU10 SMD typeItem No. | Specification | Power | Lumens(CCT) | Product Dimension | Voltage | Dimmable | Packing Data |
CTN Qty | CTN Dimension | Volume weight | Gross weight |
LS-S505-MR16-EWW/EW | * 5.5W MR16 Spotlight * LG SMD 3030 * Beam angle:24/36° * Lifespan≥35,000Hrs | 5.5W | CRI >80, 450 lm (2700K) CRI >80, 470 lm (3000K) CRI >80, 500 lm (4000K) CRI >80, 530 lm (5500K) | Φ50*H48mm | 12V DC / AC | NOT | 100 | 54x27x16cm | 4.7kg | 7.7kg |
LS-S505-GU10-EWW/EW | * 6W GU10 Spotlight * LG SMD 3030 * Beam angle:24/36° * Lifespan≥35,000Hrs | 6W | CRI >80, 450 lm (2700K) CRI >80, 470 lm (3000K) CRI >80, 500 lm (4000K) CRI >80, 530 lm (5500K) | Φ50*H55mm | 100~240V AC | NOT | 100 | 54x27x16cm | 4.7kg | 8.6kg |
LS-S505-GU10-EWWD/EWD | 220~240V AC | YES |
LS-S505-MR16-ED-EWW/EW | *6W MR16 Spotlight * LG SMD 3030 * Beam angle:24/36° * With external driver * Lifespan≥35,000Hrs | 6W | CRI >80, 450 lm (2700K) CRI >80, 470 lm (3000K) CRI >80, 500 lm (4000K) CRI >80, 530 lm (5500K) | Φ50*H48mm | 100~240V AC | NOT | 100 | 54x27x16cm | 4.7kg | 8.6kg |
LS-S505-MR16-ED-EWWD/EWD | 220~240V AC | YES |
LS-S505-MR16-A-NWW/NW | * 6W MR16 Spotlight * Japan Nichina LED * Beam angle:24/36° * Lifespan≥35,000Hrs | 6W | CRI >80, 480 lm (2700K) CRI >80, 500 lm (3000K) CRI >80, 550 lm (4000K) CRI >80, 580 lm (5500K) | Φ50*H548mm | 12V AC / DC | NOT | 100 | 54x27x16cm | 4.7kg | 7.7kg |
LS-S505-MR16-ED-NWW/NW | * 6.5W MR16 Spotlight * Japan Nichina LED * Beam angle:24/36° * With external driver * Lifespan≥35,000Hrs | 6.5W | CRI >80, 480 lm (2700K) CRI >80, 500 lm (3000K) CRI >80, 550 lm (4000K) CRI >80, 580 lm (5500K) | Φ50*H48mm | 100~240V AC | NOT | 100 | 54x27x16cm | 4.7kg | 8.6kg |
LS-S505-MR16-ED-NWWD/NWD | 220~240V AC | YES |
LS-S505-GU10-A-NWW/NW | * 6.5W GU10 Spotlight * Japan Nichina LED * Beam angle:24/36° * With external driver * Lifespan≥35,000Hrs | 6.5W | CRI >80, 480 lm (2700K) CRI >80, 500 lm (3000K) CRI >80, 550 lm (4000K) CRI >80, 580 lm (5500K) | Φ50*H55mm | 100~240V AC | NOT | 100 | 54x27x16cm | 4.7kg | 8.6kg |
LS-S505-GU10-A-NWWD/NWD | 220~240V AC | YES |
Leiso lighting tech. Co., Ltd. (dongguan) is professional manufacturer for LED lighting integrate research & development, production, sales and service. The company offers complete product categories including LED lamp series, LED spotlight, LED bulb, LED t8 tube light, LED downlight, LED flexible tube light, LED module etc, which can be widely used in indoor lighting, outdoor landscape lighting, solar LED light, electronics, auto, communication, and so on.
Companies adhering to the philosophy of "customer priority, quality first " and the strategic policy of "quality, excellent service " to lead of energy saving LED lighting market. With years of experience in production and research and development. Excellent product quality recognition by our customers.
The factory total area of about 6, 000 square meters, high standards of clean production workshop, with automatic solid crystal, automatic wire bonders, automatic irrigation plastic, automatic color separation and packaging equipment. 300kk annual output more than the product of the making process of purification, anti-static work of international standard facilities closed. More than 200 employees, including 38 of engineering, QA and R & D staff.
"science and technology to create the future, quality creates brand. " LEISO based on domestic growth abroad. "quality first, customer first, innovation, service first"is the established policy of the company, to the colorful LED products, customers willing to form a close alliance, to add luster to the modern human.
