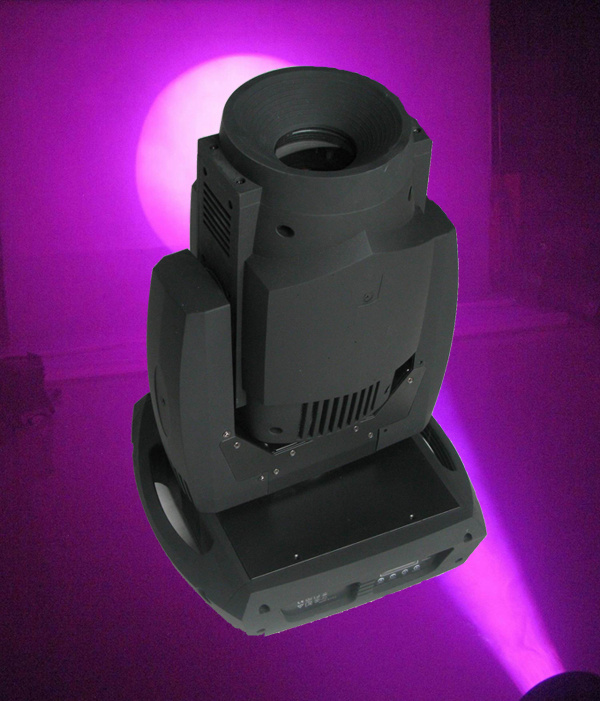

LED Spot Light / LED Moving Head Light with a 150W white LED (PRO SPOT 22)
TECHNICAL SPECIFICATIONS
Power supply: 90-240 AC 50/60 Hz;
Power consumption: 200W;
100, 000 hours of led life;
Powered by a high output 150W long life white LED source;
DMX-control-channels: 12/16CH;
DMX-512-connection: 3-pin XLR;
Operational Modes: DMX, Master/Slave, Stand Alone & Sound Active;
16 bit smooth and precise resolution for pan/tilt movement;
7 Dichroic Colors + white;
6 Rotating Gobos (Interchangeable), 6 static gobos;
A Prism Wheel with 3-facet, Dimming (0-100%), Strobe effect;
High-speed rotating 3-facet prism;
X/Y auto repositioning, 0-100% linear dimmer;
Tilt: 270-degree, LCD DMX menu system;
Fan cooled, Shutter: Pulse effect; Random strobe slow to fast;
Pan: 540-degree;
Stepper motors with micro stepping;
Maximum ambient temperature ta: 45° C;
Dimension: 380*365*555mm;
Weight (net): 15.0kgs.
DMX FUNCTIONS: 19-CHANNEL MODE
Channel 1 - Horizontal movement (Pan);
Channel 2 pan fine 16 bit;
Channel 3 - Vertical movement (Tilt);
Channel 4 tilt fine 16 bit;
Channel 5 pan/tilt movement speed adjustments;
Channel 6 dimmer from 0-100%;
Channel 7 strobe from slow to fast;
Channel 8 focus;
Channel 9 - Color-wheel;
Channel 10 semi color combining;
Channel 11 - rotating gobo-wheel;
Channel 12 - rotating gobo moving forward and backward;
Channel 13 - Gobo rotation;
Channel 14 - static gobo-wheel;
Channel 15 prism;
Channel 16 prism rotations;
Channel 17 frost;
Channel 18 iris;
Channel 19 reset.
Procedure:
Step 1: Open the fuse holder on the rear panel with a fitting screwdriver.
Step 2: Remove the old fuse from the fuse holder.
Step 3: Install the new fuse in the fuse holder.
Step 4: Replace the fuse holder in the housing.
PRO SPOT 22/LUX CHART |
DISTANCE(M) |
COLOR |
COLOR TEMPERATURE |
BRIGHTNESS(LUX) |
BEAM ANGLE |
DIAMETER OF THE COVERING AREA(ROUND:M) |
1 |
WHITE |
8000K |
41000 |
16° |
0.2 |
2 |
WHITE |
8000K |
10000 |
16° |
0.3 |
3 |
WHITE |
8000K |
4500 |
16° |
0.5 |
4 |
WHITE |
8000K |
3000 |
16° |
0.9 |
5 |
WHITE |
8000K |
2000 |
16° |
1.6 |
