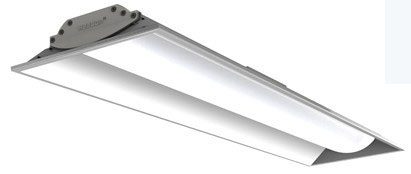

LED Shop Panel Troffer Light(HZ-RGDP88WB-T8)
Features:
1. Double reinforcement structure design Redundant heat dissipation .
2. Optimized the LED permutation,achieve the best lighting effects.
3. SMD 2835 with imported LED chip, ensure the efficient,low consumption and stablty.
4. Kinds of luminous color, adapt to the requirements of different applications .
5. AC input by 100~240V,50/60Hz,PF>0.9, high efficiency, low power consumption.
6. Energy saving, environmental protection, safety, non-pollution.
7. Epistar led chip, Higher LED luminous efficacy: 140lm/w Longer lifespan.
8. Ra=82
9. Flicker-free
Flicker of normal LED light is around 55%-65% which may have the following problems,
A, Leads to accidents
B, Affecting productivity
C, Hurting the eyes, causing myopia.
Flicker of Hi-semicon flicker-free LED toffer is within 2%, even 0%, which is an ideal solution for film studio, library, hospitals and other applications.
Applications:
LED troffer is widely used in decoration of indoor public buildings for new installation or retrofit.
Parameters:
Input voltage: 100V-240V
Lumen: 3400-3750LM
Power: 88W
Color temperature: Warm white: 3000-3500K Neutral white 5000-5500K Cool white: 6500-7000K
Beam angle: 105°
Protection class: IP40
Material: PC (Made in Japan)
Size: 598*598*70MM
| Name | Product NO. | Dimension | Lumen | CCT | CRI | Voltage | Power | Beam angle | IP Rating | LED | Dimmable | Flicker-free |
| Flicker free LED Troffer | HZ-RGDP44wB-T8 | 598*598*70MM | 3400-3750lm | 3500K/4100K/5000K | 82 | 110-277v | 44W | 105° | IP40 | Epistar/Samsung/Philips | Optional | Yes |
| HZ-RGDP88w-T8 | 1198*598*70MM | 6800-7500lm | 3500K/4100K/5000K | 82 | 110-277v | 88W | 105° | IP40 | Epistar/Samsung/Philips | Optional | Yes |
Hi-semicon manufacture product by using our leading-edge technological expertise in thermal management, optics and electronic circuitry, lenses and LEDs to improve our existing products, bringing further efficiencies through cost improvements and product design.
Hi-semicon technology focus on Unique application such as: Flicker-free, low CCT, High CRI, Dali lighting system, Intelligent microwave sensor, daylight harvesting and so on.
