Home LED Light Products Super Brightness Office 36W LED Troffer Panel Light (T8-S120-96S-18W*2)

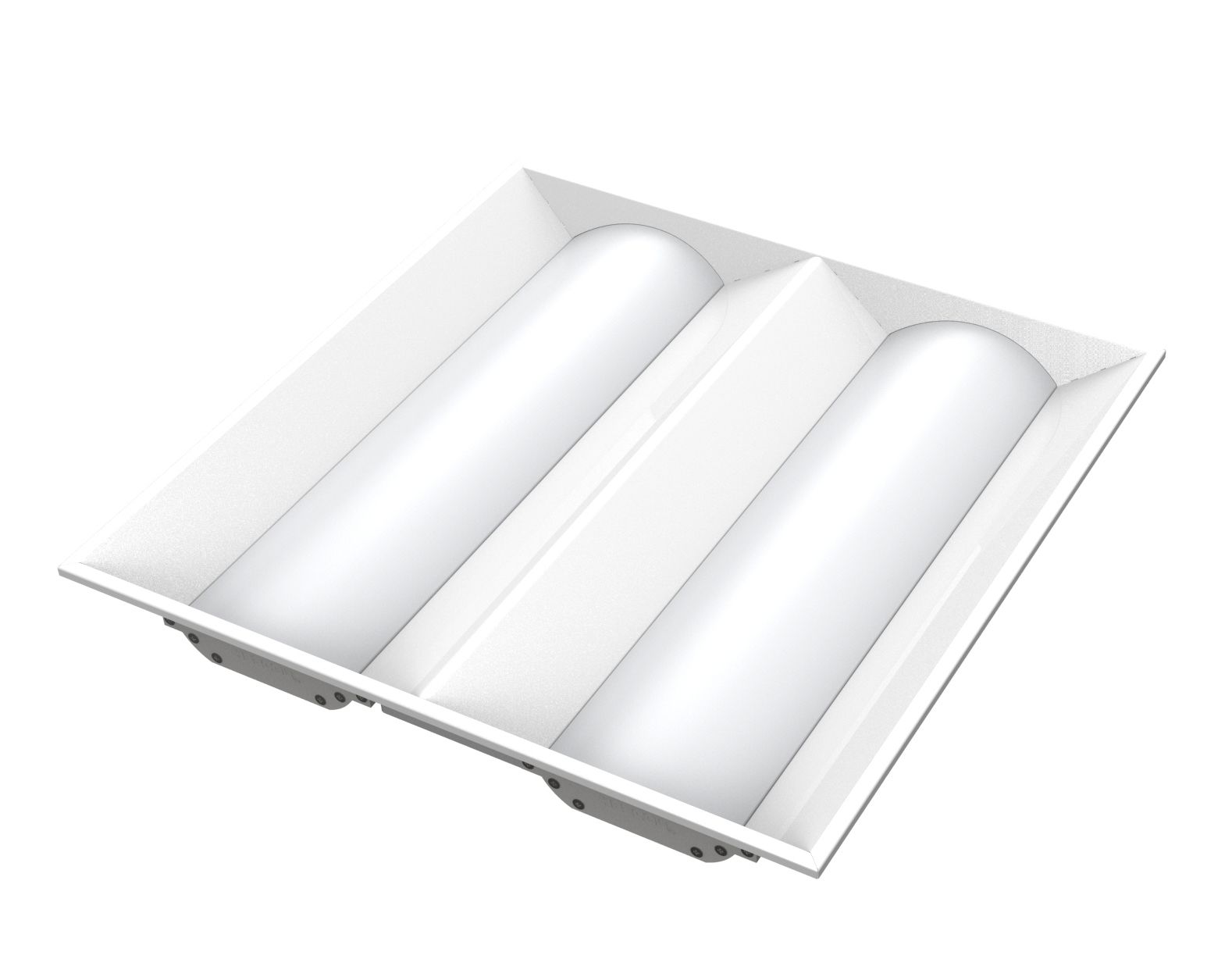

Super Brightness Office 36W LED Troffer Panel Light (T8-S120-96S-18W*2)

Super Brightness Office 36W LED Troffer Panel Light (T8-S120-96S-18W*2)
Price: US $ 36/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 50/Piece
Pay Type: T/T,Western Union
Higher Lumen Efficacy 140lm/W Office 36W LED Troffer Panel Light (T8-S120-96S-18W*2)

Features:
1. Double reinforcement structure design Redundant heat dissipation .
2. Optimized the LED permutation,achieve the best lighting effects.
3. SMD 2835 with imported LED chip, ensure the efficient,low consumption and stablty.
4. Kinds of luminous color, adapt to the requirements of different applications .
5. AC input by 100~240V,50/60Hz,PF>0.9, high efficiency, low power consumption.
6. Energy saving, environmental protection, safety, non-pollution.
7. Epistar led chip, Higher LED luminous efficacy: 140lm/w Longer lifespan.
8. Ra=80, Power Factor>0.90.

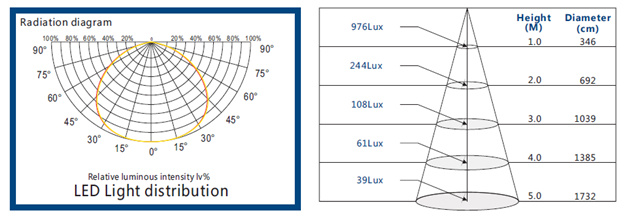

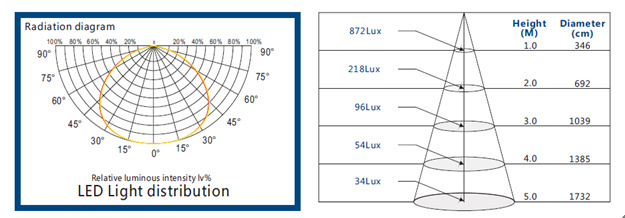

Optical Parameters:

1. T8-S120-96S-18W*2(3000K:2628lm)

2.
T8-S120-96S-18W*2(4000K:2916lm)

3.
T8-S120-96S-18W*2(6000K:3240lm)

36W LED Panel Light with Higher Luminous Efficacy 140lm/w
Item No.T8-S120-96S-18W*2
Dimensions(mm)596*596*80
Power (W)36±1W
Input Voltage (V)AC100V~240V 50Hz /60Hz
LED Qty(PCS)360
LED Chip Epistar SMD(2835)
PF≥0.9
Luminous Plux(Lm)Milky Cover: ( W1 ) 3240±10%
CCT5500-6500K( W1 ) Pure White
2800-3200K( W2 ) Warm White
4000-4500K( W3 ) Neutral White
Lens Beam Angle(2θ 1/2)120°
Ra70/80
IPIP54
Working Tep.-20°C~+50°C
Working Hum.10~90RH
NW(kg)3.68±10%
Packing Dimensions(mm)630*630*100
Working Hours35,000

Prod Model: T8-S120-96S-18W*2
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimensions(mm): 595*595*80
Dimming: Dali,PIR,Microwave,Daylight Harvesting
LED Source: Epistar3528
Warranty: 3 Years
Life Span: 30000hrs
Light Source: LED
Type: Hanging
Base Material: Metal
Certification: CUL
Housing Material: Aluminum Alloy
Emitting Color: Pure White/Warm White/Neutral White
Dimmable: Optional
Appearance: Square/Rectangle
Voltage: AC100V~240V
Beam Angle: 120°
Hi-semicon manufacture product by using our leading-edge technological expertise in thermal management, optics and electronic circuitry, lenses and LEDs to improve our existing products, bringing further efficiencies through cost improvements and product design.

Hi-semicon technology focus on Unique application such as: Flicker-free, low CCT, High CRI, Dali lighting system, Intelligent microwave sensor, daylight harvesting and so on.
