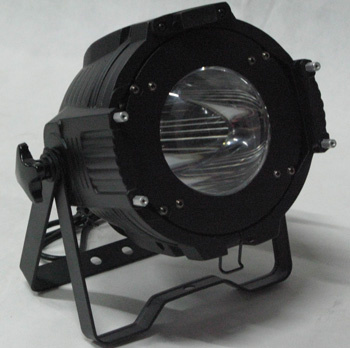

COB 90W LED MENELAUS RGBU
1.Excellent ventilations
2.Mirror polishing plano-convex lens
3.Intelligent fan
4.Mirror finished
DETAILS:1.Using high MCD COB LED(chip on board) to achieve much
more brightness and excellent ventilations and lowest energy consumption,
with surface light source function plus the molded polishing/mirror finish reflector,
specially designed frost plano- convex lens, making light projections perfectly focused.
2.Fans running speeds adjustable by the programming for less noise
3.Du hanging bracket included,3-pin XLR In/Out
4.Shutter: Pulse effect; random strobe slow to fast
5. Fans running speeds adjustable by the programming for less noise
6.Weight: 2.30kgs
DMX FUNCTIONS: 4-CHANNEL MODE
Channel 1 red from darkness to full brightness
Channel 2 green from darkness to full brightness
Channel 3 blue from darkness to full brightness
Channel 4 UV from darkness to full brightness
DMX FUNCTIONS: 6-CHANNEL MODE
Channel 1 red from darkness to full brightness
Channel 2 green from darkness to full brightness
Channel 3 blue from darkness to full brightness
Channel 4 UV from darkness to full brightness
Channel 5 dimmer from darkness to full brightness
Channel 6 strobe
DMX FUNCTIONS: 9-CHANNEL MODE
Channel 1 red from darkness to full brightness
Channel 2 green from darkness to full brightness
Channel 3 blue from darkness to full brightness
Channel 4 UV from darkness to full brightness
Channel 5 dimmer from darkness to full brightness
Channel 6 strobe
Channel 7 color macros
Channel 8 color changing from slow to fast
Channel 9 color fade from slow to fast
DISTANCES(M) |
COLOR |
BRIGHTENESS(LUX) |
BEAM ANGLE |
FIELD ANGLE |
DIAMETER OF THE COVERING AREA(ROUND:M) |
1 |
RGBU |
4400 |
24 |
44 |
0.70 |
2 |
RGBU |
1500 |
24 |
44 |
1.40 |
3 |
RGBU |
700 |
24 |
44 |
2.10 |
1 |
RED |
1400 |
24 |
44 |
0.70 |
2 |
RED |
600 |
24 |
44 |
1.40 |
3 |
RED |
400 |
24 |
44 |
2.10 |
1 |
GREEN |
1500 |
24 |
44 |
0.70 |
2 |
GREEN |
700 |
24 |
44 |
1.40 |
3 |
GREEN |
450 |
24 |
44 |
2.10 |
1 |
BLUE |
200 |
24 |
44 |
0.70 |
2 |
BLUE |
100 |
24 |
44 |
1.40 |
3 |
BLUE |
60 |
24 |
44 |
2.10 |
1 |
UV |
130 |
24 |
44 |
0.70 |
2 |
UV |
70 |
24 |
44 |
1.40 |
3 |
UV |
30 |
24 |
44 |
2.10 |
