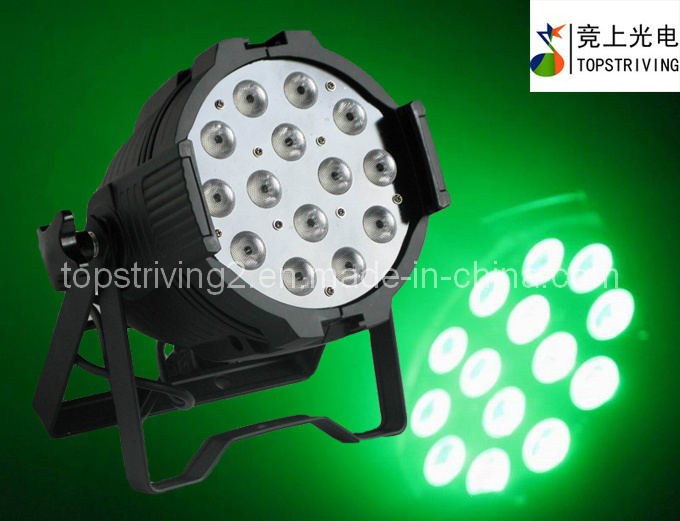

Led Par Can / Washing Effect Light with 14* 12W RGBWAU 6 in 1 LEDs ( LED MENELAUS RGBWAU)
Technical Specification:
(1) DU hanging brackets for easy floor standing;
(2) Multi-voltage operation: AC 90-240V 50/60Hz;
(3) full Master/Slave operation in any operational mode;
(4) Electronic Dimming, color strobe effect and long life operation;
(5) black die cast aluminium housing with 14 high MCD RGBWAU 6 in 1 12W LEDs;
(6) Smooth RGBWAU color mixing;
(7) low heat, Long Life LEDs (100, 000 hrs. );
(8) operational Modes: DMX 512 protocol, Sound Active, Auto, master/slave;
(9) Beam Angle: 25° Degrees;
(10) Color strobe effect;
(11) Uses 11 DMX Channels;
(12) Stand Alone, Master/Slave;
(13) Linkable via 3-pin XLR cable;
(14) Electronic Dimming: 0-100%;
(15) ITEM DIMENSION: 270*270*240MM;
(16) ITEM WEIGHT: 4.0KGS.
Auto:
Press the MENU button, the following functions can be achieved by the button ENTER:
AUTO: Run the preset shows;
CF00: Increasing brightness, then decreasing brightness, the speed of increasing brightness, then decreasing brightness can be adjusted by the buttons of UP and DOWN from 00 slowest to 99 fastest.
CCO8: Color changes, the speed of color changes can be adjusted by the buttons of UP and DOWN from 00 slowest to 99 fastest.
CS99: Color selections, the color selections can be done by the buttons of UP and DOWN from 00 to 99.
R000: Press the button FUN five seconds, till R000 shows in the led display, the red color brightness can be adjusted by the buttons UP or DOWN;
G000: Press the button FUN five seconds, till G000 shows in the led display, the green color brightness can be adjusted by the buttons UP or DOWN;
B000: Press the button FUN five seconds, till B000 shows in the led display, the blue color brightness can be adjusted by the buttons UP or DOWN;
Y000: Press the button FUN five seconds, till Y000 shows in the led display, the white color brightness can be adjusted by the buttons UP or DOWN;
U000: Press the button FUN five seconds, till U000 shows in the led display, the UV color brightness can be adjusted by the buttons UP or DOWN;
A000: Press the button FUN five seconds, till A000 shows in the led display, the amber color brightness can be adjusted by the buttons UP or DOWN;
Eleven DMX channels |
Channel 1 |
red from small to big brightness(dimmig) |
Channel 2 |
green from small to big brightness(dimmig) |
Channel 3 |
blue from small to big brightness(dimmig) |
Channel 4 |
white from small to big brightness(dimmig) |
Channel 5 |
amber from small to big brightness(dimmig) |
Channel 6 |
UV from small to big brightness(dimmig) |
Channel 7 |
master dimmer from small to full brightness |
Channel 8 |
strobe from slow to fast |
Channel 9 |
dimmer,color macro |
Channel 10 |
dimmer, increasing brightness, then decreasing brightness, colors following one by one |
Channel 11 |
running speed adjustments |
