Feature:
DU hanging brackets for easy floor standing
Electronic power supply AC 88-264V 47-63HZ
Full Master/Slave operation in any operational mode,
Electronic Dimming, color strobe effect and long life operation

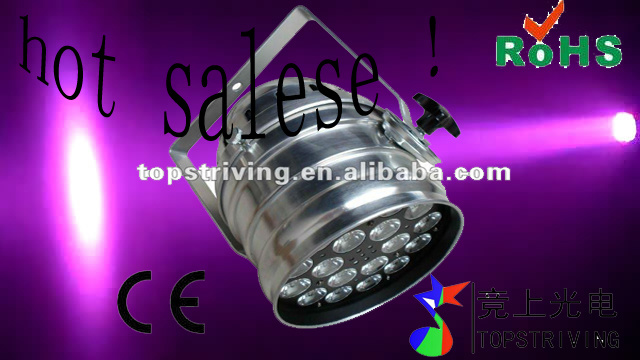

Short silver/black housing Par 64 with 18*3W high MCD LEDs (5 Red, 5Green, 4 Blue & 4 White LEDs)
Smooth RGBW color mixing
Low heat, Long Life LEDs (100, 000 hrs. )
Operational Modes: DMX 512 protocol, Sound Active, Auto, master/slave
Beam Angle: 15 degrees
Color strobe effect
Uses 8 DMX Channels
Stand Alone, Master/Slave
Linkable via 3-pin XLR cable
Electronic Dimming: 0-100%
Dimensions: 300*270*240mm
Weight: 3.0 kgs
Specifications:
1. Electronic power supply AC 100-240V
2. Stand Alone, Master/Slave, full Master/Slave operation in any operational mode
3. DU hanging brackets for easy floor standing
4. Electronic Dimming(0-100%), color strobe effect and long life operation
5. Short silver/black housing Par 64
6. Smooth RGB color mixing
7. Operational Modes: DMX 512 protocol, Sound Active, Auto, master/slave
8. Uses 8 DMX Channels
9. Linkable via 3-pin XLR cable
10. Dimensions: 300*270*240mm
11. Weight: 3.0 kgs
Eight DMX channels:
Channel 1: Red from smal to big brightness(dimmig)
Channel 2: Green from smal to big brightness(dimmig)
Channel 3: Blue from smal to big brightness(dimmig)
Channel 4: Master dimmer from smal to full brightness
Channel 5: Strobe from slow to fast
Channel 6: Dimmer, color macro
0-30 dimmer on at ch1/ch2/ch3/ch4
31-255 color macro, the brightness can be adjusted by the master dimmer at ch4
Channel 7: Dimmer, increasing brightness, then decreasing brightness,
Colors following one by one
0-85 dimmer on at ch1/ch2/ch3/ch4
86-169 increasing brightness, then decreasing brightness, the running speed can be
Adjusted by ch8
170-255 color following one by one, the running speed can be adjusted by ch8
Channel 8: Running speed adjustments
When ch7 at 86-169 or at 170-255, the speed adjustment works
Trade Terms:
1. Payment Terms: By T/T or western union or paypal
2. Delivery time: 40'HQ container within 4 weeks
3. Shipping method: DHL, UPS, FedEX, TNT door to door service, by sea, by air, etc
4. OEM&ODM: Accepted.
5. Packing: Carton packing or fight case optional.
6. MOQ: 30PCS
7. Warranty time: Full 2 year
Our Service:
1. Your inquiry related to our products or prices will be replied in 24 hours.
2. OEM&ODM, any your customized lightings we can help you to design and put into product without any charges.
3. Promised After-sales Service.
4. Definitely high brightness with good material inside.
5. Customised LED Quantity Design.
We are looking forward to your long term business relationship with you!
|
1 |
Voltage |
AC 90-240V 50/60Hz |
|
2 |
Light source |
18*3W high MCD LEDs (5Red ,5Green,4Blue,4White LEDs) |
|
3 |
Operational Modes |
DMX 512 protocol, Auto, master/slave |
|
4 |
Color |
RGBW |
|
5 |
life hour |
100000 |
|
6 |
Electronic Dimming |
0-100% |
|
7 |
Dimension |
300*270*240mm |
|
8 |
Weight |
3.00kgs |
