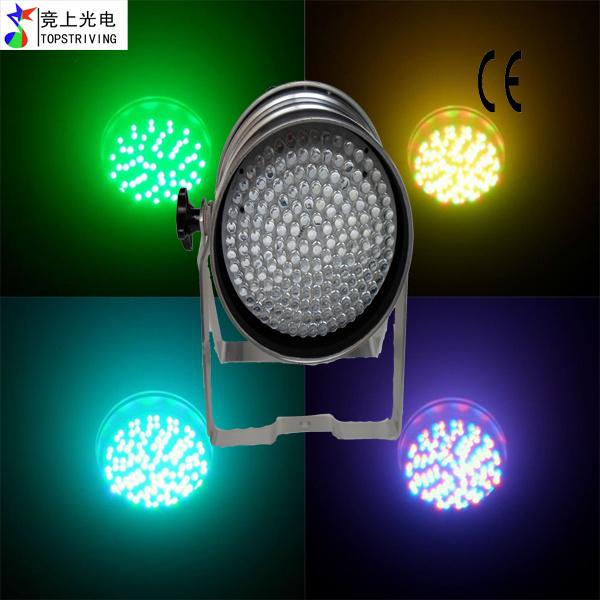

LED PAR 64 168 -10S
TECHNICAL SPECIFICATIONS:
Power supply: 220-240V AC 50/60Hz
Power consumption: MAX. 30W
Fuse: 250V 1.0A
DMX-control-channels: 8
DMX-512-connection: 3-pin XLR
Number of LED: 168 high output 10 LED:
R/G/B 56 PCS FOR EACH
Flash-rate: Max. 10 Hz
Dimensions: 310X270X230mm
Weight: 2.70 kgs
DETAILED PARAMETERS:
1. DU hanging brackets for easy floor standing
2. Multi-voltage operation: AC 120V-230V 50/60Hz
3. Full Master/Slave operation in any operational mode,
4. Electronic Dimming, color strobe effect and long life operation
5. Short silver/black housing PAR 64 with 168 10mm high MCD LEDs (56 Red, 56Green, & 56 Blue LEDs)
6. Smooth RGB color mixing
7. Low heat, Long Life LEDs (100, 000 hrs. )
8. Operational Modes: DMX 512 protocol, Sound Active, Auto, master/slave
9. Beam Angle: 30 degrees
10. Color strobe effect
11. Uses 8 DMX Channels
12. Stand Alone, Master/Slave
13. Linkable via 3-pin XLR cable
14. Electronic Dimming: 0-100%
15. Dimensions: 300*270*240mm
16. Weight: 2.0 kgs
OUR SERVICE:
1. Your inquiry related to our products or prices will be replies in 24 hours.
2. OEM&ODM, any your customized lightings we can help you to design And put into product without any charges
3. Shipping method: DHL, UPS, FedEx, TNT door to door service, by sea, by air, etc
4. Promised After-sales Service
5. Definitely high brightness with good material inside
6. Customised LED Quantity Design
EIGHT DMX channels |
Channel 1 |
red from small to big brightness (dimming) |
Channel 2 |
green from small to big brightness (dimming) |
Channel 3 |
blue from small to big brightness (dimming) |
Channel 4 |
master dimmer from small to full brightness |
Channel 5 |
strobe from slow to fast |
Channel 6 |
dimmer,color macro |
0-30 |
dimmer on at ch1/ch2/ch3/ch4 |
31-255 |
color macro, the brightness can be adjusted by the master dimmer at ch4 |
Channel 7 |
dimmer, increasing brightness, then decreasing brightness, colors following one by one |
0-85 |
dimmer on at ch1/ch2/ch3/ch4 |
86-169 |
increasing brightness, then decreasing brightness, the running speed can be adjusted by ch8 |
170-255 |
color following one by one, the running speed can be adjusted by ch8 |
Channel 8 |
running speed adjustments |
