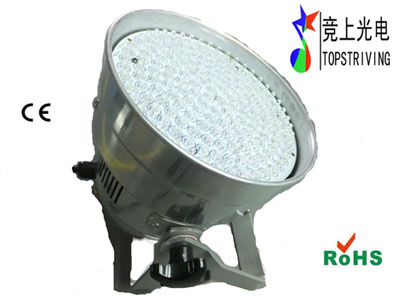

LED PAR 56 168-10s Stage Performance LED Lighting / 168 10mm High Mcd LEDs (RGB each of 56PCS)

TECHNICAL SPECIFICATIONS
Power supply: 220-240V AC 50/60Hz
Power consumption: MAX. 50W
Fuse: 250V 1.0A
DMX-control-channels: 8
DMX-512-connection: 3-pin XLR
Number of LED: 168 high output 10mm LED:
R/G/B 56 PCS FOR EACH
Flash-rate: Max. 10 Hz
Dimensions: 250X225X195mm
Weight: 1.90 kgs


168 10mm high MCD LEDs ( RGB each of 56pcs) 1. DMX 512 protocol
Addressing
The LED DISPLAY on the rear side of the base allows you to assign the DMX fixture address,
Which is defined as the first channel from which the item wil respond to the control er. If you
Set, for example, the address to channel 7, the item wil use the channel 7 to 14 for control.
Please, be sure that you don't have any overlapping channels in order to control each item
Correctly and independently from any other fixture on the DMX data link. If two, three or more
Items are addressed similarly, they will work similarly. At DMX mode you can choose the
Address from 1 to 512. After you connect the item to the mains, the item starts running. When
The item finishes resetting, d-OO1 will flash in the led display and then set the desired DMX
Address by pressing the UP or DOWN buttons.

DMX Controlling:
After having addressed all items, you may now start operating these via your lighting controller.
After switching on, the item will automatically detect whether DMX 512 data is received or not.
Eight DMX channels:
Channel 1: Red from smal to big brightness(dimmig)
Channel 2: Green from smal to big brightness(dimmig)
Channel 3: Blue from smal to big brightness(dimmig)
Channel 4: Master dimmer from smal to full brightness
Channel 5: Strobe from slow to fast
Channel 6: Dimmer, color macro
0-30 dimmer on at ch1/ch2/ch3/ch4
31-255 color macro, the brightness can be adjusted by the master dimmer at ch4
Channel 7: Dimmer, increasing brightness, then decreasing brightness,
Colors following one by one
0-85 dimmer on at ch1/ch2/ch3/ch4
86-169 increasing brightness, then decreasing brightness, the running speed can be

Adjusted by ch8

170-255 color following one by one, the running speed can be adjusted by ch8
Channel 8: Running speed adjustments
When ch7 at 86-169 or at 170-255, the speed adjustment works
Auto
Press the FUN button, the fol owing functions can be achieved by the button ENTER:
AUTO: Run the preset shows;
CF00: Increasing brightness, then decreasing brightness, the speed of increasing brightness,
Then decreasing brightness can be adjusted by the buttons of UP and DOWN from 00
Slowest to 99 fastest.
CCO8: Color changes, the speed of color changes can be adjusted by the buttons of UP and
DOWN from 00 slowest to 99 fastest.
CS99: Color selections, the color selections can be done by the buttons of UP and DOWN from
00 to 99.
R000: Press the button FUN five seconds, till R000 shows in the led display, the red color
Brightness can be adjusted by the buttons UP or DOWN;
G000: Press the button FUN five seconds, till G000 shows in the led display, the green color
Brightness can be adjusted by the buttons UP or DOWN;
B000: Press the button FUN five seconds, till B000 shows in the led display, the blue color
Brightness can be adjusted by the buttons UP or DOWN;
