Product Description

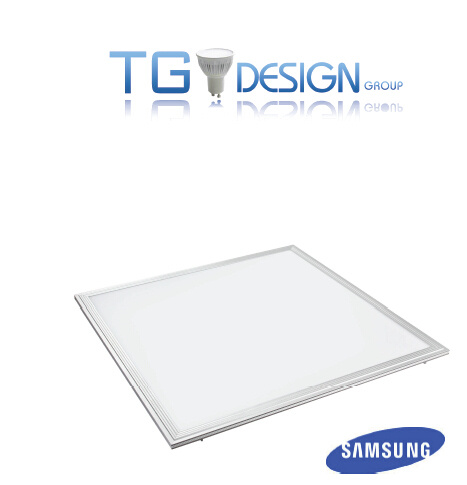

TG-Design LED Panel Light features the latest edge lit LED
technology. The panels are suitable for both commercial
and domestic applications, and are designed to fit directly
into existing standard suspended ceilings and recesses, or
can be surface mounted to ceilings and walls.
Features
？ Up to 100lm/w
？ Samsung SMD2835, CRI82+
？ Philip Driver, flicker free, 50000hrs lifetime
？ 40% energy saving against fluorescent
？ Energy Efficiency Grade: A+
？ 5 years warranty
Application
LED Panel Light is ideal for replacing
fluorescent lamp fixture and fluorescent panel
light. It is ideal for application of:
？ Office, meeting room, schools
？ Factories, warehouses
？ Supermarket, Stores
？ Hospitals, Institution Buildings
Technical Data
Product Code Dimension (mm) Voltage CRI CCT
Lumen
Efficiency
LED
Quantity
Beam
Angle
Net
Weight IP Grade
PS606036W 595x595x10 AC100-240V Ra82-85 3000-6500k 100lm/w 168pcs 120° 3.8kg IP20
PS606042W 595x595x10 AC100-240V Ra82-85 3000-6500k 100lm/w 192pcs 120° 3.8kg IP20
PS1203036W 1195x295x10 AC100-240V Ra82-85 3000-6500k 100lm/w 168pcs 120° 3.8kg IP20
PS1203042W 1195x295x10 AC100-240V Ra82-85 3000-6500k 100lm/w 192pcs 120° 3.8kg IP20
PS1206072W 1195x595x10 AC100-240V Ra82-85 3000-6500K 100lm/w 384pcs 120° 8.1kg IP20
* Dimmable available for:1-10V, Triac, DALI, Remoted control.
？ Samsung LED
？ Advanced LGP, light transmittance 94%,
high brightness and uniform light spread.
？ Untra slim design, only 10mm thickness.
？ Philip Brand driver, PF>0.96 Flicker free
？ Multiful installation: ceiling, hanging, embedded.
？ High quality Aluminum frame and back, quick heat sink.
Packing info:
600x600: Carton Size: 670x660x255mm / 6pcs. Gross Weight: 27.2KG
1200x300: Carton Size: 1263x243x373mm / 6pcs. Gross Weight: 27.8KG
1200x600: Carton Size: 1262x660x160mm / 4pcs. Gross Weight: 34.0KG
