LED Panel Light ( Super brightness )
Dimmable or Non-Dimmable LED panel light are available
1. Ultra-thin design, only 9 mm, good appearance. ( LED panel light )
2. Adopted 0.5W series high output SMD LED, reach to 380 lux at 2 meters distance.
3. with high rate of light transmit panel, keep light uniformity. And the light panel has been improved well and can prevent effectively the static electricity and dust ( LED panel light ).
3. with high rate of light transmit panel, keep light uniformity. And prevent effectively the static electricity and dust
4. LED driver electric current only use 60% of full load, the service life reached to 100, 000 hours. ( LED panel light )
5. LED Panel light -- Long life time due to outer-mounted power supply.
Technical Specifications: LED panel light
Item No. DL-PLS0612-H-CW
LED: 0.5W series high output 5060 SMD LED
Power: 80W
Size: 300x1200x8.5mm
Lumen: 6939Lm(Cool white); 5173Lm(Warm white); 5948Lm(Natural white)
Weight: 9.8Kg
Dimmable: Dimmable or Non-Dimmable are available
Fixing Ways: N-built; Mounting; Suspending
IK code: IK01
IP code: IP43
Application: LED panel light
1. Living room, bed room, kitchen, washroom Our LED Panel light are widely used in the following places:
2. Conference, meeting room, show room, show case
3. LED Panel light -- Stairway lighting &decoration
4. Commercial building, tower
5. Factory, plants, warehouse, offices building lighting ( LED panel light )
6. Super-market, department store
7. Subway station, bus, and strain, airport lighting
Dimmable LED panel light
1. You can switch on or off one of LED panel light, and also switch on or off all of lamp panel at the same time just by a controller
2. You can adjust the brightness of each lamp panel random, or adjust all at the same time just by a controller.
3. When the controller is controlling one of LED panel light, dont make an effect on the others.
4. One controller can operate at most 225 pieces of LED panel light.
5. You can also operate each LED panel light by the Manual Controll seperately.

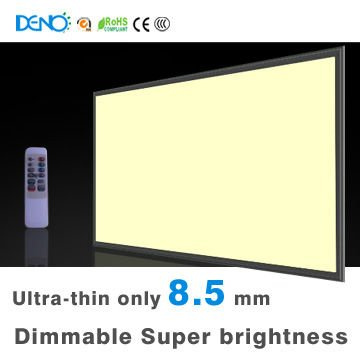

Photo: LED panel light
Note: LED panel light
1. All dimension units are millimeters
2. All dimension tolerance is ± 0.5mm unless otherwise noted
3. Keep away from direct sunshine and high temperature ( LED panel light )
4. If any doubt about the installation or use of this LED panel light, consult a competent electrician
1. Ultra-thin design, only 9 mm, good appearance.
2. Adopted 0.5W series high output SMD LED, reach to 380 lux at 2 meters distance.
3. with high rate of light transmit panel, keep light uniformity. And the light panel has been improved well and can prevent effectively the static electricity and dust.
3. with high rate of light transmit panel, keep light uniformity. And prevent effectively the static electricity and dust
4. LED driver electric current only use 60% of full load, the service life reached to 100, 000 hours. Technical Specifications
|
Item No. |
DL-PLS0612-H-CW |
|
LED: |
0.5W series high output 5060 SMD LED |
|
Power: |
80W |
|
Size: |
300x1200x8.5mm |
|
Lumen: |
6939Lm(Cool white); 5173Lm(Warm white); 5948Lm(Natural white) |
|
Weight: |
9.8Kg |
|
Dimmable: |
Dimmable or Non-Dimmable are available |
|
Fixing Ways: |
N-built; Mounting; Suspending |
|
IK code: |
IK01 |
|
IP code: |
IP43 |
Shenzhen Deno Lighting Technology Co., Ltd is located in Bao' an district of Shenzhen city, our company founded in 2010 which is specialized in researching, and manufacturing and selling the LED products, and is focus on supplying the good service and advanced products for the customer around the world.
Company's featured products as follows:
Flexible LED Strip series
LED Spotlights series
LED Tube Light series
LED Panel Light series
LED Power, Controllers Supply
We have a excellent team with high comprehensive quality, strong professional knowledge, rich experience and operation principle. We have high-quality high-efficiency management systems, the goal of the management system is to meet the demands of LED market and customers constantly, and try our best to provide the high quality service.
Our products mainly sell to European and American market, included USA, Janpan, Singapore, Europe, New Zealand, Brazil, Pakistan, Australia and so on. And our company have passed FCC, CE, RoHS certification, in line with international product standards. Company's growing product equipment inputs, and personnel skills training, and always put people first and ideas.
Management aim: Customers supreme, quality first, we regard our customer as the centre of service, regard the market as our direction, and always based on the technical innovate. We do our best achieve requirement of the clients with good pre-sale service, in the sale of service and after-sale service.
Management policy: We would do our best to meet the customer's demand and expectation with the systematized management, good faith, good service, good quality.
We are ready to contribute a big part in making the bright future with you.
