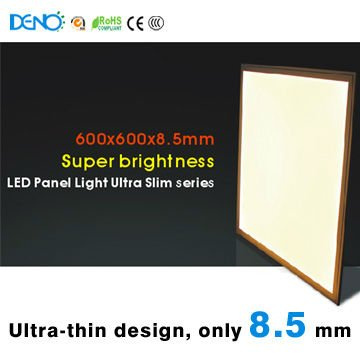

Dimmer control LED panel lamp ( 600x600x8.5mm )
Dimmable or Non-Dimmable LED panel lamp are available
1. Ultra-thin design, only 9 mm, good appearance. ( LED panel lamp)
2. Adopted 0.5W series high output SMD LED, reach to 380 lux at 2 meters distance.
3. with high rate of light transmit panel, keep light uniformity. And the light panel has been improved well and can prevent effectively the static electricity and dust ( LED panel lamp).
3. with high rate of light transmit panel, keep light uniformity. And prevent effectively the static electricity and dust
4. LED driver electric current only use 60% of full load, the service life reached to 100, 000 hours. ( LED panel lamp )
5. LED panel lamp -- Long life time due to outer-mounted power supply.
Technical Specifications: LED panel lamp
Item No. DL-PLS0606-H-CW
LED: 0.5W series high output 5060 SMD LED
Power: 60W
Size: 600X600X8.5mm
Lumen: 4824Lm(Cool white); 4245Lm(Warm white); 3573Lm(Natural white)
Weight: 5.0Kg
Dimmable: Dimmable or Non-Dimmable are available
Fixing Ways: N-built; Mounting; Suspending
IK code: IK01
IP code: IP43
Application: LED panel lamp
1. Living room, bed room, kitchen, washroom Our LED Panel lamp are widely used in the following places:
2. Conference, meeting room, show room, show case
3. LED Panel lamp -- Stairway lighting &decoration
4. Commercial building, tower
5. Factory, plants, warehouse, offices building lighting ( LED panel lamp)
6. Super-market, department store
7. Subway station, bus, and strain, airport lighting
Dimmable LED panel lamp
1. You can switch on or off one of LED panel lamp, and also switch on or off all of lamp panel at the same time just by a controller
2. You can adjust the brightness of each lamp panel random, or adjust all at the same time just by a controller.
3. When the controller is controlling one of LED ceiling panel light, dont make an effect on the others.
4. One controller can operate at most 225 pieces of LED panel lamp.
5. You can also operate each LED panel lamp by the Manual Controll seperately.
|
Item No. |
DL-PLS0606-H-CW |
|
LED: |
0.5W series high output 5060 SMD LED |
|
Power: |
60W |
|
Size: |
600X600X8.5mm |
|
Lumen: |
4824Lm(Cool white); 4245Lm(Warm white); 3573Lm(Natural white) |
|
Weight: |
5.0Kg |
|
Dimmable: |
Dimmable or Non-Dimmable are available |
|
Fixing Ways: |
N-built; Mounting; Suspending |
|
IK code: |
IK01 |
|
IP code: |
IP43 |
