Basic Info.
Light Source: LED
Appearance: Square
Type: Embedded
Emitting Color: White
Certification: CE, RoHS, UL, ISO9001
Housing Material: Aluminium + PC
Base Material: Steel
Voltage: 100V-240V
Beam Angle: 180
Is Dimmable: Yes
Light Source Type: 180 PCS SMD LED 3014
Luminous Flux: 3014 Lm
Dimensions: 600 X 600 X 9 Mm
Power Factor: Pf> 0.9
Color Render Index: Ra >80
Protection Class (IP): IP44
Materials: Aluminum, PMMA LGP, PC Diffuser
Net Weight: 3.2 Kg / Piece
Certificate: CE, UL
Service Life: ≥ 50000 Hours
Export Markets: Global
Additional Info.
Trademark: LUMIN
Packing: 68.5cm X 63.5cm X 20cm/5PCS 22kg
Standard: CE Rohs CCC
Origin: Shanghai China
HS Code: 940540900
Production Capacity: 5000PCS/Day
Product Description
Description

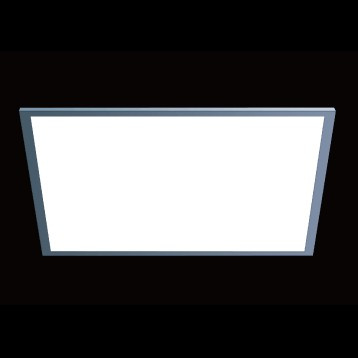

Lumin is a professional LED panel light manufacturer in China. We focus on LED lighting solutions to the ceiling lighting system. Lumin LED panel features 9mm thick ulfra-thin design. 0-10V LED panel light, Dali dimmable LED panel light, traic dimmable LED panel light, RGB LED panel, DIY LED panel, and CCT adjustable LED panel are all available in Lumin. And the price of LED panel light is also competitive.
Unique Features
(1) Energy saving up to 70%
(2) High brightness: > 80 LM /W
(3) Nice lighting distribution: > 90 %
(4) High color rendering index: Ra> 80
(5) Ultra-thin design: Only 9mm
(6) Stable LEDs light source design solution: The best 3014 LEDs are used. It can give off high CRI, high brightness, and low optical decay.
(7) Excellent circuit design, each group of LEDs work separately, avoiding any problem of lighting output caused or influenced by single faulty LED.
(8) New high efficiency constant current driver: Wide range of input voltage: AC100-240V
(9) Instant starting time: < 1.2 s, and no noise as it starts.
(10) Environment friendly: No mecury, no harmness to human healthy and the earth.
Detailed Specification
Model NO.: LM-PL-66-40
Power consumption: 32W
Dimension: 600x600x 9 MM
Input voltage: AC100-240V
Output voltage: DC 32-34 V
Color temperature: 3000 K, 4000 K, 5000 K, 6000K
Constant current: 900 mA
Lumen output: 3014 LM
CRI: Ra>80
Power factor: PF>0.9
Anti-electric shock rate: ClassII
Temperature rising: <20
Protection class: IP44
Material: Aluminum alloy, PMMA, PC
Best Design
Multiple Installation
Classic Project -- Fazer in Finland
The project is completed by one of our Finish distributors. It is a very nice restraurant named Fazer in Europe. In the restraurant, LED panel light is used to create the comfortable atmosphere for the dinner here.
Applications
LED panel light can be used in the office, schools, hospitals, hotels, conference room lighting and other places.
Best Service:
(1) Your inquiry will be replied within 12 hours;
(2) Fast sample delivery: 3 days around.
(3) Best-trained and experienced sales staffs follow up with your inquiries and orders;
(4) OEM/ODM services: All can be customized;
(5) Distributor, agent, investor and more are welcome;
(6) 3 year limited warranty: Spare parts can be offered along with orders.
Our company supply different kinds of products, with high quality and favaroble price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
