Specifications

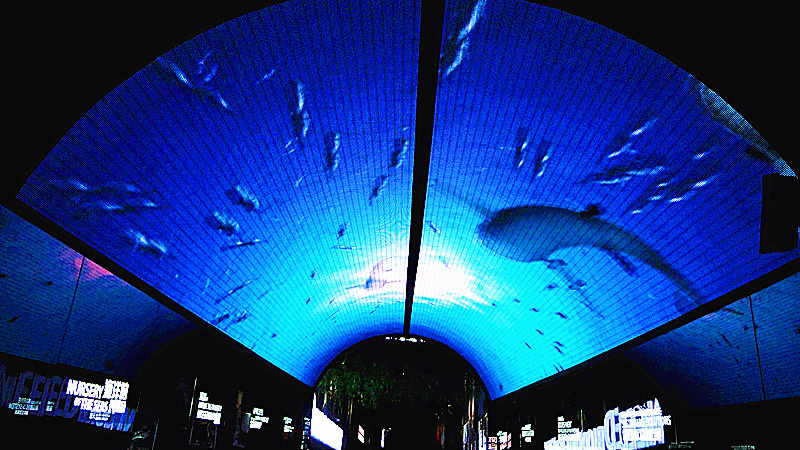

Indoor led display
1. High technical
2. Long lifespan
3. Years warranty
4. Pioneer quality with competitive price
What a led display can show exactly?
1. Video play: It can play various signals, such as TV, DVD, VCD. It can also switch to different videos at any time, and zoom or cut video operation.
2. Word processing: It can display various character with different fronts, types and character information, it also may roll up the pages, shift, rotate, snow flow, screen rolling, glint and more than other 10 types display functions.
3. Picture display: It can play various graphics, pictures, such as BMP, JPG, GIF, TIFF, TXT, DOC, PPT format etc.
4. Cartoon demonstration: It can play two or three cartoons, and revivify the vivid effect of the picture
5. Random layout: The powerful software can play video images, characters, graphics independently, tile up the characters information and cartoons etc.
Applications of Indoor led display:
1. Television studios, broadcast centers, cinemas.
2. Concert halls, music halls, theaters.
3. Casinos, nightclubs, restaurants, entertainment centers.
4. Exhibition centers, conference rooms, meeting rooms, presentation centers.
|
Parameters of Die-casting cabinet |
|
|
|
|
|
pixel pitch(mm) |
4 |
5 |
6 |
7.62 |
|
Module size(mm) |
256*128 |
320*160 |
384*192 |
244*244 |
|
Density(dot/m²) |
62500 |
40000 |
27777 |
17222 |
|
Pixel color |
1R1G1B |
1R1G1B |
1R1G1B |
1R1G1B |
|
Pixel LED |
SMD2121 |
SMD3528 |
SMD3528 |
SMD3528 |
|
Resolution rate for module |
64*32 |
64*32 |
64*32 |
32*32 |
|
Model size (mm) |
512*512 |
640*640 |
5 76*576 |
488*488 |
|
Resolution rate |
128*128 |
128*128 |
9 6*96 |
64*64 |
|
Cabinet weight(kg) |
10 |
12.5 |
12 |
15 |
|
Maximum power(W/m²) |
850 |
800 |
650 |
550 |
|
Average power(W/m²) |
300 |
280 |
200 |
180 |
|
Best viewing distance |
4M~20M |
6M~20M |
8M~20M |
10M~20M |
|
viewing angle |
Horizontal direction120° Vertical direction120° |
|
Driving way |
1/16 Scan |
|
Frame Frequency |
≥60Hz |
|
Refresh Frequency |
1200Hz |
|
White balance luminance(cd/m²) |
≥1400 |
≥1500 |
≥1500 |
≥1400 |
|
Working temperatuer |
(-20ºC~50ºC) |
|
Protecting grade |
IP43 |
|
Working voltage |
110-220V Ac± 10% |
|
Gray grade |
≥16.7M |
|
Luminance adjusted |
256 (Manually) |
|
Input signal |
RF\S-video,RGB,YUV,RGBHV,YC |
|
MTBF |
>10000 |
|
Life span |
>100000 |
|
Speckles rate |
<1/10000 |
Our company supply different kinds of products, with high quality and favaroble price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
