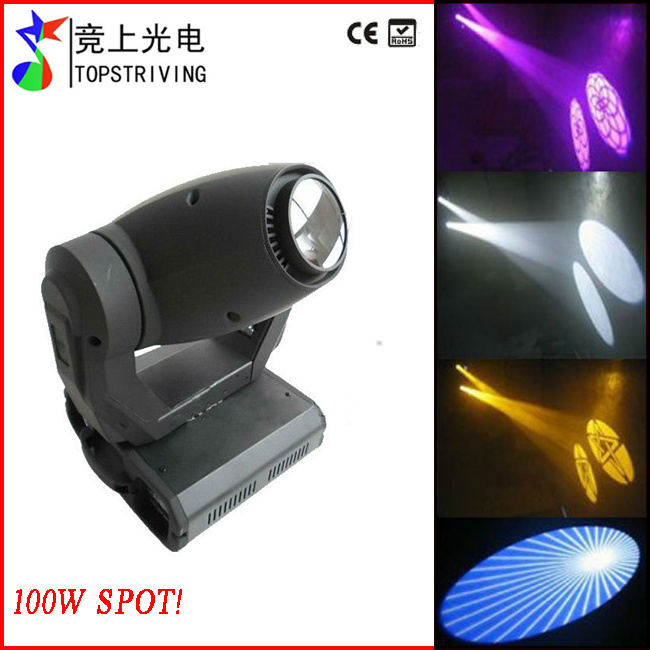

LED Spot Moving Head Light/ led moving head light/led stage lighting/with 100W led Dream Spot
Led Dj Effect / LED Spot moving head light: DREAM SPOT
Technical Specifications
1) Light Source: A high output 60W white LED source, (9000k, 500, 000hr)
2) Voltage: AC 90-240V 50/60Hz
3) Power Consumption: 250W max
4) Lamp Power(W): 100W
5) DMX Channel: 16CH
6) Color Temperature(CCT): Cool White
7) Working Temperature: 0 - 45 degree
8) Working Lifetime(Hour): 500, 000(h)
9) Operational Modes: DMX, Master/Slave, Stand Alone & Sound Active
10) Pan Movement: 540-degree
11) Tilt Movement: 270-degree, LED DMX menu system
12) Color Wheel: 7 Colors + White
13) Prism Wheel: 4-facet rotatable prism
14) Gobo Wheel: 7 rotating interchangeable gobos
15) DMX-512-connection: 3-pin XLR
16) Flash-rate: 10 Hz
18) Dimensions: 420*410*490mm
19) Net Weight: 18.0kg| Function of the control channels: |
|
| 16 channels |
|
| Channel 1 | Horizontal movement (Pan) |
| Channel 2 | Pan fine 16 bit |
| Channel 3 | Vertical movement (Tilt) |
| Channel 4 | Tilt fine 16 bit |
| Channel 5 | Speed of PAN / TILT movement |
| Channel 6 | Static gobo-wheel |
| Channel 7 | Color wheel |
| Channel 8 | Dimmer |
| Channel 9 | Shutter and strobe |
| Channel 10 | Rotating gobo-wheel |
| Channel 11 | Gobo rotation |
| Channel 12 | Four-facet prism+ prism rotation |
| Channel 13 | Focusing |
| Channel 14 | Iris |
| Channel 15 | Gobo indexing |
| Channel 16 | Reset, blackout |
| DELIEVER TERMS |
|
| Packing | Flight case/ carton package optional |
| Trade | FOB EXW |
| Port | GuangZhou China |
| Certification | CE ROHS |
| Payment Terms | T/T, Westerm Union, Paypal |
| Shipping method | DHL, UPS, FedEx, TNT door to door service, by sea, by air, etc |
| Delivery time | 40 HQ container within 4 weeks |
| Brand Name | Topstriving |
| Origin | GuangZhou China |
| Producting Time | 15-20 days |
| OEM OR ODM Service | Accept |
| MOQ: | 10 PCS |
| Warranty Time | Fully 2 years |
