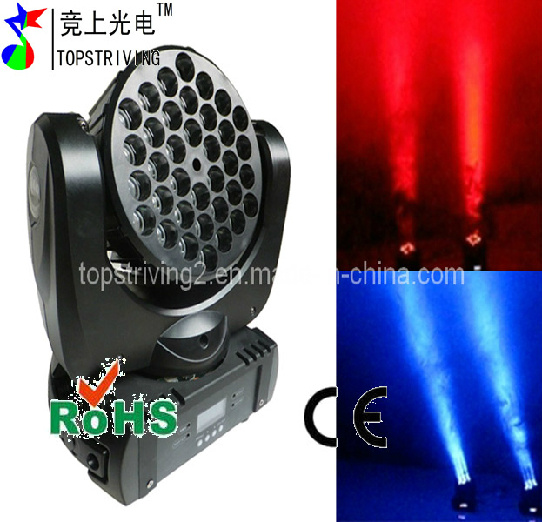

Led Moving Head Beam Light with 36*3W USA CREE XPE (LED BEAM 36)
SPECIFICATIONS:Power Supply: 90-240 AC 50/60 Hz
Power Consumption: 150W
LED Life: 100, 000(h)
3W USA CREE XPE red/green/blue/white each 8/10/10/8 PCS
DMX-control-channels: 13/16
DMX-512-connection: 3-pin XLR
Maximum ambient temperature ta: 45° C
Operational Modes: DMX, Master/Slave, Stand Alone & Sound Active
16 bit smooth and precise resolution for pan/tilt movement
X/Y auto repositioning, 0-100% linear dimmer,
Tilt: 270-degree, LCD DMX menu system
Fan cooled, Shutter: Pulse effect; Random strobe slow to fast
Pan: 540-degree
Stepper motors with micro stepping
Dimensions: 310*260*150mm
Weight: 5.10kgs
Pictures:
|
Function of the control channels |
|
|
13-channel mode |
|
|
Channel 1 |
Horizontal movement (Pan) |
|
Channel 2 |
Vertical movement (Tilt) |
|
Channel 3 |
strobe from slow to fast |
|
Channel 4 |
master dimmer from slow to fast |
|
Channel 5 |
red dimmer from 0-100% |
|
Channel 6 |
green dimmer from 0-100% |
|
Channel 7 |
blue dimmer from 0-100% |
|
Channel 8 |
white dimmer from 0-100% |
|
Channel 9 |
color macros |
|
Channel 10 |
preset shows |
|
Channel 11 |
blackout when PAN/TILT moving, reset, sound active |
|
Channel 12 |
increasing brightness, then decreasing brightness, color changing |
|
Channel 13 |
running speed adjustments of channel 12 preset shows |
|
|
|
|
DELIEVER TERMS |
|
Packing |
Flight case/ carton package optional |
|
Trade |
FOB/EXW |
|
Port |
GuangZhou China |
|
Certification |
CE ROHS |
|
Payment Terms |
T/T, Westerm Union, Paypal |
|
Shipping method |
DHL,UPS, FedEx, TNT door to door service, by sea, by air, etc |
|
Delivery time |
40 HQ container within 4 weeks |
|
Brand Name |
Topstriving |
|
Origin |
GuangZhou China |
|
Producting Time |
15-20 days |
|
OEM OR ODM Service |
Accept |
|
MOQ: |
10 PCS |
|
Warranty Time |
Fully 2 year |
