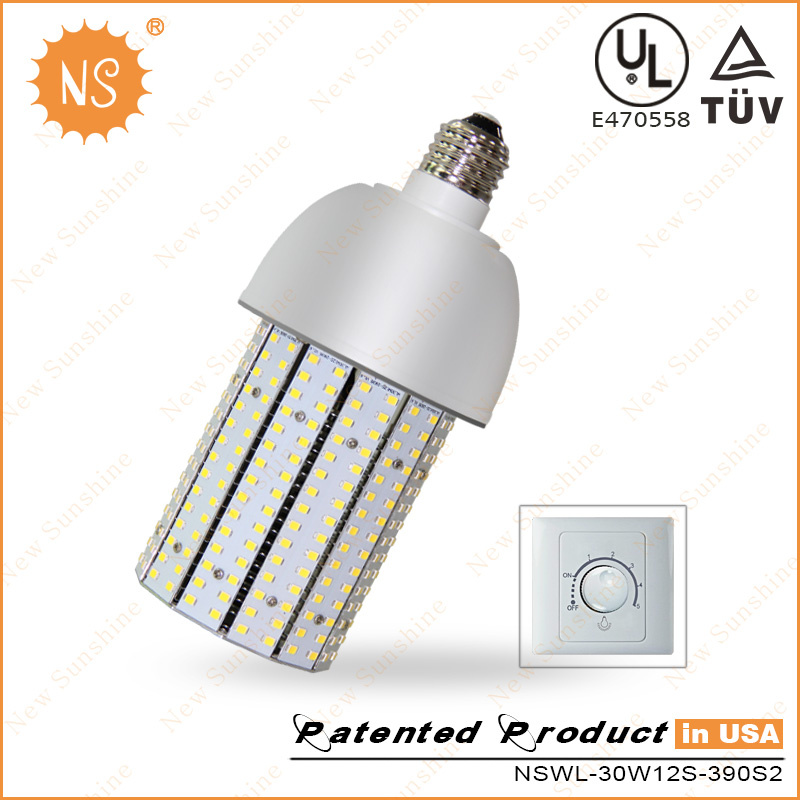

E26 E27 E39 E40 LED corn bulb 20w 30w 40w 50w 60w 80w 100w 120w with CE ROHS TUV UL listed
Specification
Part Number: NSWL-30W12S-390S2
Product Dimensions: Dia90*184mm
Warm White(3000-3500K) Neutral White:(4000-4500K) Cool White(6000-6500K)
Material: Fin Aluminum
1. Lamp Type: LED corn light
2. Base: E26 E27 E39 E40
3. Rating Power(W): 30W
4. Luminous Flux(lm): 3900LM
5. Input Voltage: 100~277VAC, 50/60Hz
6. LED chip: 270PCS, Epistar SMD2835
7. Beam Angle: 360 degree
8. Shape: Corn Round
9.Certification:UL cUL ETL TUV SAA FCC CE RoHS PSE LM79 LM80
10.Patent Design: United States and European Union
1.20w led corn bulb Techenical Feature
Rated wattage | 30W |
| Input Voltage | 85-265 VAC (AC100-277V is available) |
| Operationg frequency | 50/60 HZ |
| Rated power factor λ | > 0.95 |
| Power Efficiency | > 0.87 |
| Humidity | < 90% |
| Ambient temperature | -40~45 |
| Base(standard designation) | E26/E27/E39/E40 |
| Replacement convertional lamp power | 100w HID/MPS |
| Output Short Circuit Protection | YES |
| Output Overvoltage protection | YES |
| Temperature protection(Half-power) | 95 |
| Power recovery temperature | 50 |
| Dimmable | NO
|
2.20w led corn bulb Advantage :
1. Energy saving high power LED light to replace the conventional CFL bulb 400W
2. Internal Heat sink
3. Light is soft and uniform, safe to eyes
4. No UV or IR in the beam
5. Cool light, No heat emission
6. Instant start, No flickering, No humming
7. Easy to install and operate
8. Green and eco-friendly without mercury
9. It's major to replace the CFL HPS MH HID with screwed lamp base directly
10. 80% more energy saving compared with conventional street light, CFL,Incandescent
11. Special surface design with arc, make sure the radiation diameter on the ground is accord with the standards for size
Notice :
1. Make sure To Remove Or Bypass The Electronic Ballast In The Fixture Before Install The Led Corn Bulb
2. Make Sure To Cut Off The Power Before Install The Led Corn Bulb
3. E40 and E27 LED Lights such as led corn light series could not use in the unventilated fixture
4. Not suitable for dimmers or electronic switches or remote controls
Trade Terms
1. Payment: T/T ,Western union ,paypal
3. Sample can be delivered in 3days
4. Shipping freight are quoted under your requests
5. Shipping port: Shenzhen, Mainland China
6. Discounts are offered based on order quantities
Our service
1. Your inquiry related to our products or prices will be replied in 24hrs.
2. Well-trained and experienced staffs to answer all your enquires in fluent Englis
3. Any your customized lightings we can help you to design and put into product.
4. Distributoership are offered for your unique design and some our current models
Our advantage
1) OEM LED Lamps Manufacturer
Since 2004,We are the best manufacturer of 120w led corn cob light in China.
2) Product quality assurance
We have 8 Product certificates,With rights to import more than 80 countries and win thousands of companies' trust.
3) Directly replacing
Flexible spiral lamp holder replace traditional lighting lamps and lanterns rapid.
4) Delivery in Time
Start here, Save your time and money from here.
Thanks for your attention , any interested , pls be free to contact me
Shenzhen Zhaopeng Technology Co., Ltd(2008 founded) is a high-tech enterprise specializing in the production of LED lighting, which is subsidiary of New Sunshine Manufacturing Co., Ltd(2004 founded). Products cover LED corn bulbs(widely use as warehouse, street lamp, garden light and indoor lighting ect. )LED filament bulbs.
We also developed only for American fixtures such as shoe case, wall pack, canopy & garage lighting, parking lot etc.
In early of April 2014, Newsunshine launched a series of new street light. With the first-class design, excellent performance, it has become the designated street light in Tijuana, Mexico. What's more, Newsunshine exclusive patent 20 watt, 30 watt corn light series has occupied the Germany koblenz, Stuttgart market as the village street light.
'Tech innovation, quality first' is our constant commitment to customers. All products comply with the requirements of ISO 9001: 2008, passed European certificates of CE, RoHS, TUV and VDE, also American certificates of UL DLC. New Sunshine becomes the first LED corn bulbs manufacturer in China. We have all patents in mainland China, EU, the United States.
As company's registered trademark, "NS" and " Zhaopeng " enjoyed high reputation in LED fields, and especially favored by European and American customers. In order to better serve the overseas market, in August 2014, our company established the warehouse and after-sale service center in Germany and USA.
We always uphold the " faithfulness, Mutual Benefit" business philosophy, "passion innovation" and " pragmatic progressive " development attitude, marching towards the ambition of "becoming the LED leading enterprises around the world"!
